With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5-inch color TFT/3.5-inch color screen/plug-in FPC/ST7272A controller/RGB/SPI interface/IPS TFT-H035A1QVIST6N54 | TFT | 320X240 |
|
76.84*63.84*3.4 | 3.5 | 3.5 | 70.080*52.560 | Full View (U80/D80/R80/L80) | 600cd/M2 | 54 pin | SPI/RGB | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7272A | |
| 2.8 inch TFT IPS LCD Display/LCD TFT Color Screen 240x320 Dot Matrix/ST7789V/FPC Connector/TFT-H028C2QVTST4C45 | TFT | 240X320 |
|
50.0*69.20*3.7 | 2.8 | 2.8 | 43.2*57.6 | 12:00 (U50/D20/L45/R45) | 280cd/M2 | 45pin | MCU/SPI/RGB free choose | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7789V | |
| 2.8 inch TFT LCD color screen /MCU/SPI/RGB/wide temperature/Arduino/bright display TFT-H028C2QVTST3N45 | TFT | 240x320 |
|
50.0*69.2*2.5 | 2.8 | 2.8 | 43.2*57.6 | 12:00 | 350cd/M2 | 45pin | MCU/SPI/RGB | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789V | |
| 2.4 inch TFT high brightness color capacitive touch screen / / IPS technology / sunlight visible / MCU interface / Arduino TFT-H024A1QVISTKC40 | TFT | 240x320 |
|
42.72x60.26 | 2.4 | 37.92X50.26 | 36.72x48.96 | handheld devices, vehicle-mounted equipment | MCU interface compatible with SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789V | |||
| 2.4-inch TFT LCD display/ full viewing angle/MIPI interface/wide temperature range/JD9852/sunlight readable/Arduino compatible TFT-H024A9QVIFT8N20 | TFT | 240x320 |
|
42.52X59.86 | 2.4 | 2.4 | 36.72x48.96 | IPS(U80/D80/L80/R80) | 800cd/m2 | FPC-20PIN | MIPI_1 line | Anti-static ESD 8KV | -20~70℃ | 3.3V | JD9852 | |
| 2.8 inch TFT LCD /480x640 pixels /MIPI/IPS full viewing angle/ST7701/TFT-H028B23VGIST7G40 | TFT | 480x640 |
|
65.9*50.9*2.36 | 2.8” | 57.6*43.2 | Full View (U80/D80/R80/L80) | 800cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701<TFT>或 兼 容 芯 片 | ||
| 2.8 inch TFT LCD display /480x640 pixels/MIPI /IPS full viewing angle/ST7701 /with touch screen/TFT-H028B23VGIST8N30 | TFT LCD | 480x640 |
|
65.9x50.9x2.36 | 2.8 | 2.8 | 57.6x43.2 | IPS | 800cd/M2 | FPC-30PIN | MIPI DSI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701 | |
| 6.8 inch TFT LCD display/480x1280 resolution / wide temperature /IPS/sunlight readable / ST7701 / TFT-H068A04ZAINV8N40 | TFT LCD | 480x1280 |
|
66.3x180.6x4.53 | 6.8 | 6.8 | 60.192x160.512 | IPS | 800cd/M2 | FPC-40PIN | RGB 24 Bit | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701 | |
| 9.7inch TFT LCD/1024x768/Wide temperature/IPS/Sunlight readable display/LVDS/JD9165/TFT-H097B01XGIJD5N40 | TFT LCD | 1024X768 |
|
210.21x164.25x2.85 | 9.7 | 9.7 | 196.61x147.46 | IPS | 500cd/m2 | FPC-40PIN | LVDS 8-bit | Anti-static ESD 8KV | -20~80℃ | 3.3V | JD9165 | |

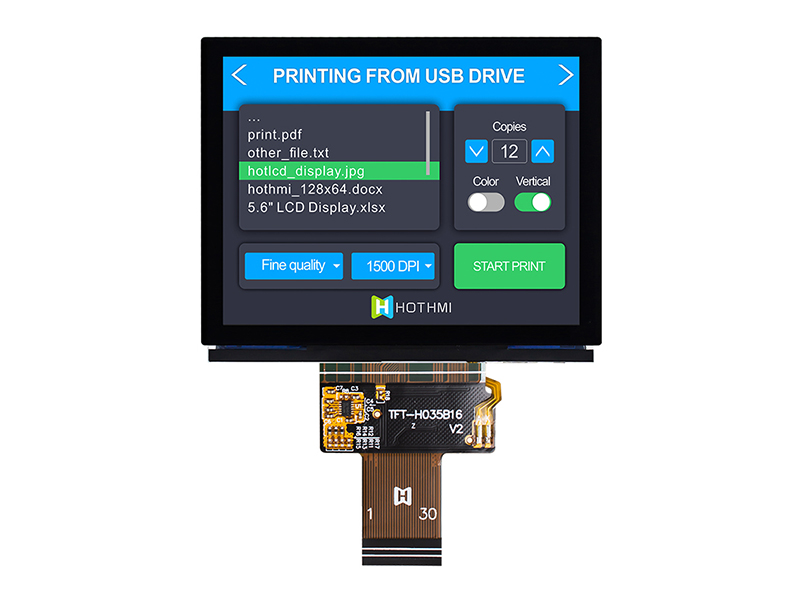

| 3.5 inch 640x480 pixels IPS TFT MIPI interface wide temperature with black cover/TFT-H035B16VGIST4G30 | TFT LCD | 640x480 |
|
79.50x65.0x4.75 | 3.5 | 3.5 | 70.08x52.56 | Full view | 400cd/m2 | FPC-30PIN | MIPI DSI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 |
