With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.0 Inch IPS 360x640 ST7701 Portrait TFT Display Panel SPI For Handheld Devices | TFT LCD | 360x640 |
|
43.68x77.02 | 3.0 | 3.0 | 36.72x65.28 | Full view | 400cd/m2 | 40PIN | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7701 | |
| 11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Sunlight Readable TFT-H116D01FHIWZKN30 | TFT LCD | 1920x1080 |
|
267.72x164.42 | 11.6 | 11.6 | 256.32x144.18 | Full view | 1000cd/m2 | 30pin | EDP | Anti-static ESD 8KV | -20~70℃ | 3.3V | T.B.D | |
| 11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial TFT-H116D01FHIWZ3N30 | TFT LCD | 1920x1080 |
|
263.34x157.16 | 11.6 | 11.6 | 256.32x144.18 | Full view | 350cd/m2 | 30pin | EDP | Anti-static ESD 8KV | -20~70℃ | 3.3V | T.B.D | |
| 4.3 Inch IPS 800x480 Wide Temperature TFT Display Panel MIPI For Industrial Control HTM-H043A10-MIPI-A06 | TFT LCD | 800x480 |
|
105.5x67.2 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 30pin | MIPI | Anti-static ESD 8KV | -30~80℃ | 5.0V | T.B.D | |
| 15.6 Inch IPS 1920x1080 Capacitive Touch Wide Temperature TFT Display Panel LVDS TFT-H156FHDIK03-CTP | TFT LCD | 1920x1080 |
|
363.8x215.9 | 15.6 | 15.6 | 344.16x193.59 | Full view | 1000cd/m2 | 36pin | LVDS | With capacitive touch function | -30~85℃ | 3.3V | T.B.D | |
| 15.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel LVDS TFT-H156FHDIK03-LVDS | TFT LCD | 1920x1080 |
|
363.8x215.9 | 15.6 | 15.6 | 344.16x193.59 | Full view | 1000cd/m2 | 36pin | LVDS | Anti-static ESD 8KV | -30~85℃ | 3.3V~12V | T.B.D | |

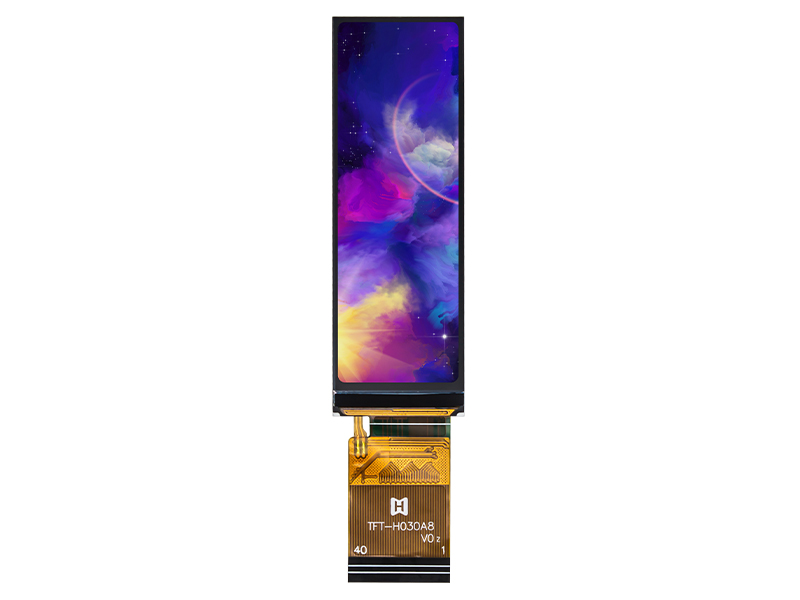

| 3.0 Inch IPS 268x800 Wide Temperature TFT Display Panel ST7701S For Instrumentation TFT-H030A8ZCISTKN40 | TFT Strip | 268x800 |
|
26.42x79.85 | 3.0 | 3.0 | 24.12x72 | Full view | 1000cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7701S | |

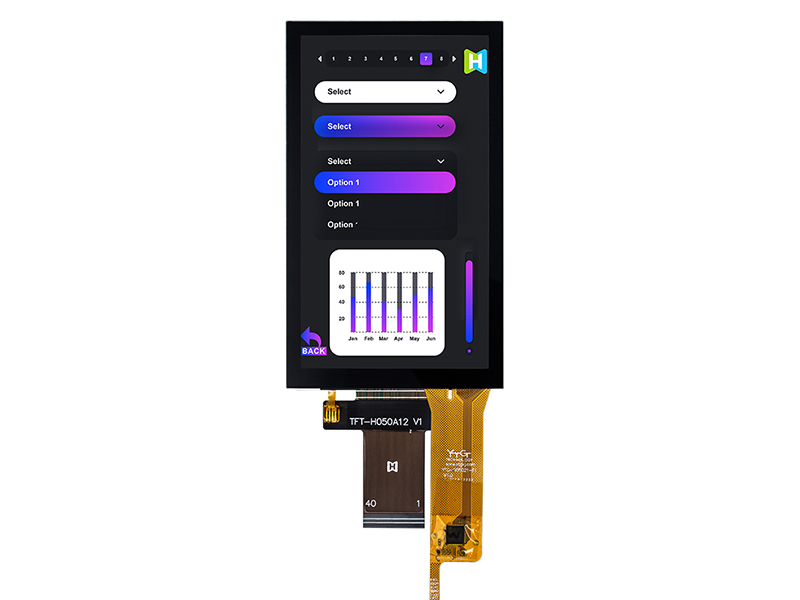

| 5.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7701S Capacitive Touch TFT-H050A12FWIST4C40 | TFT LCD | 480x854 |
|
72x122.25x4.15 | 5.0 | 5.0 | 61.63x109.65 | Full view | 400cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S | |

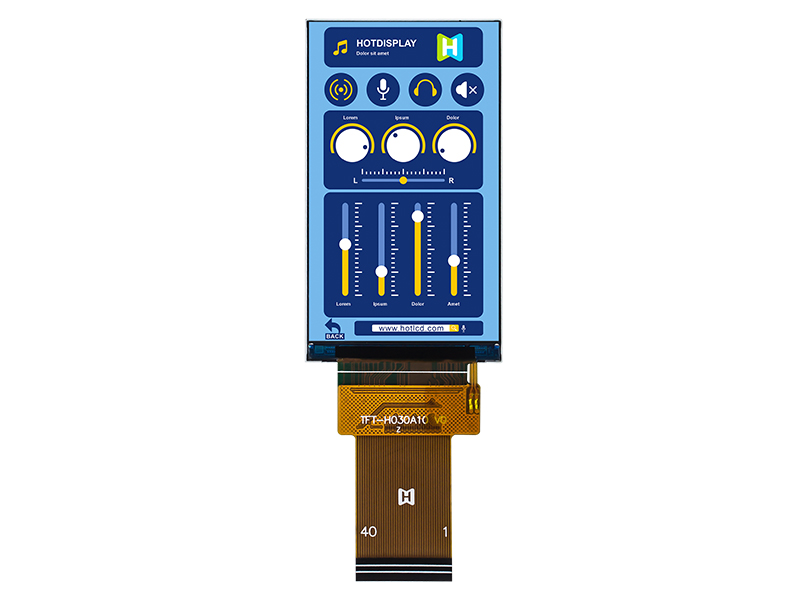

| 3.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7703 For Industrial Computer TFT-H030A10FWIST3N40 | TFT LCD | 480x854 |
|
41.80X73.97X2.15 | 3.0 | 3.0 | 36.72x 65.28 | Full view | 350cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |

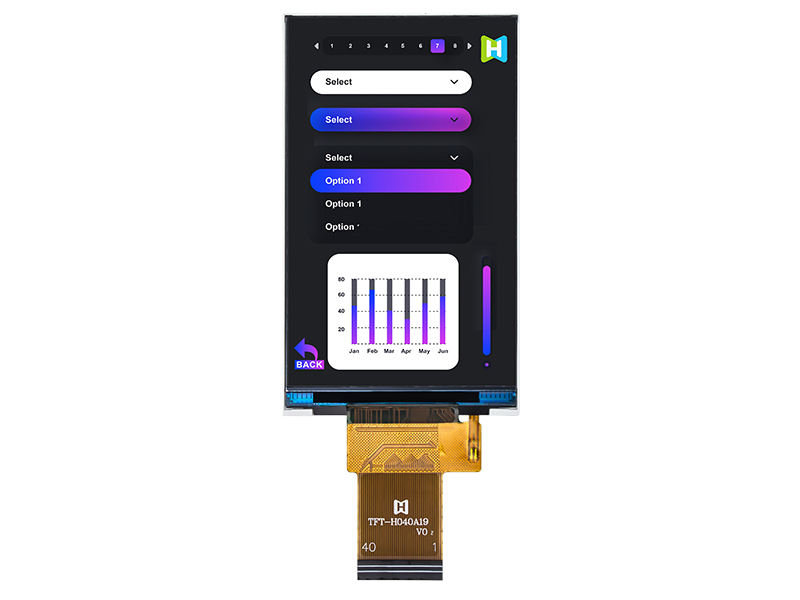

| 4.0 Inch IPS 480x800 Wide Temperature TFT Display Panel ST7701S For Industrial Computer TFT-H040A19WVIST5N40 | TFT LCD | 480x800 |
|
57.14x96.85 | 4.0 | 4.0 | 51.84x86.4 | Full view | 500cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S |
