Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  3.0寸 IPS全視角 480x854分辨率 寬溫 TFT 顯示屏 ST7703 適用于工業計算機 TFT-H030A10FWIST3N40
  • Model : 3.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7703 For Industrial Computer TFT-H030A10FWIST3N40

    Product type:TFT LCD

    Show contents:480x854

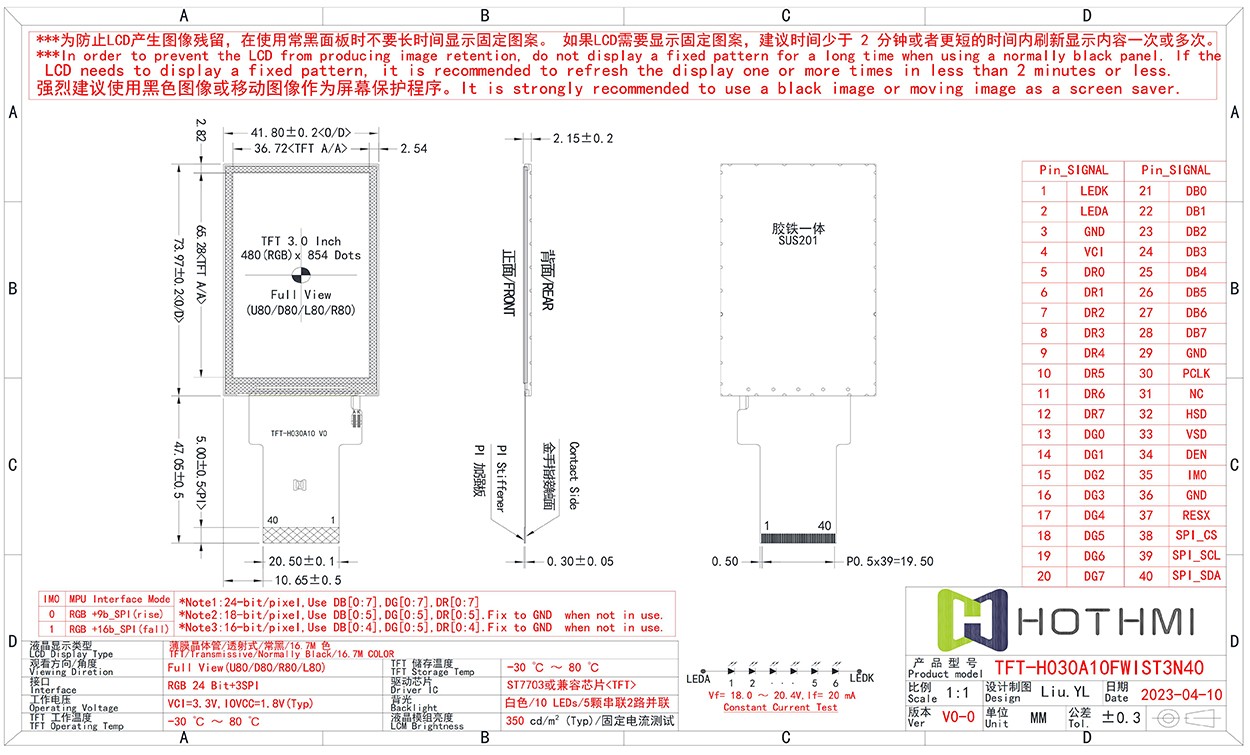

    Outline size(mm) :41.80X73.97X2.15

    Size of View Window(mm):3.0

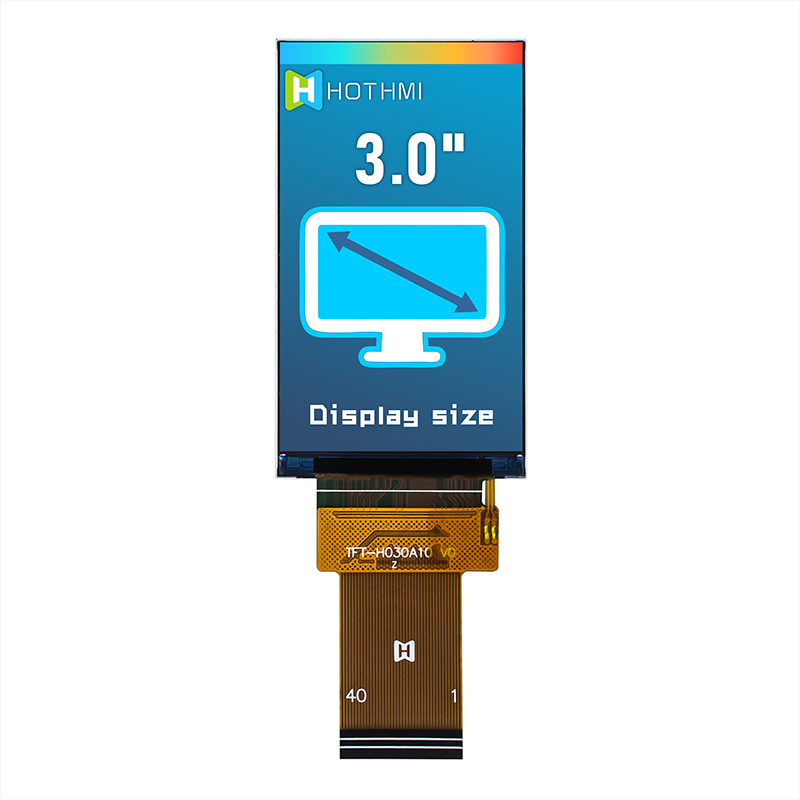

    Display size(mm) :3.0

    Effective size(mm):36.72x 65.28

    Product application:Instrumentation

    Visual angle:Full view

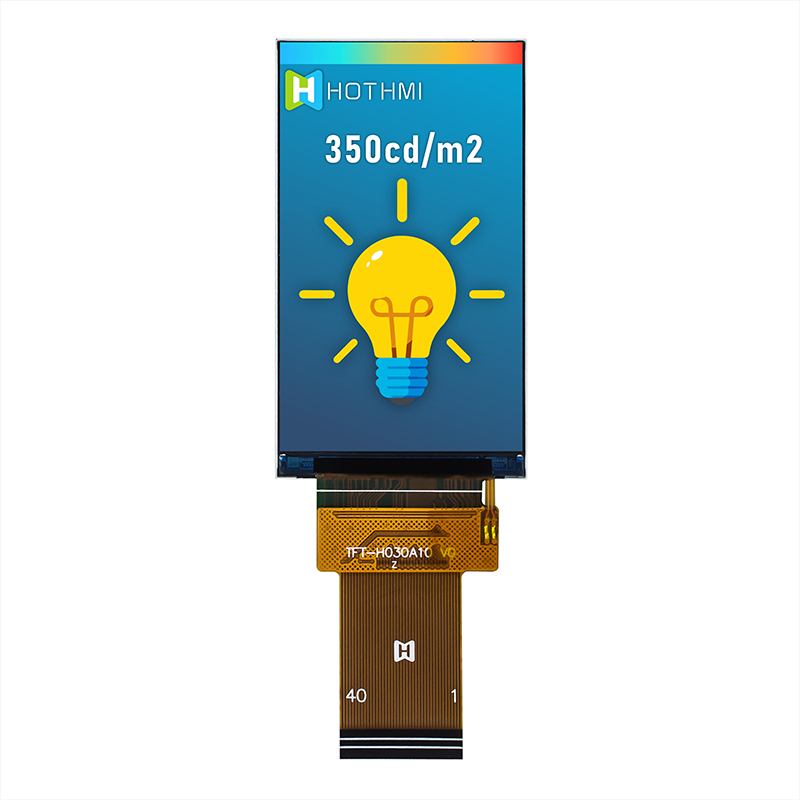

    Backlight type or brightness:350cd/m2

    Connection PIN Number:40pin

    Interface mode:SPI

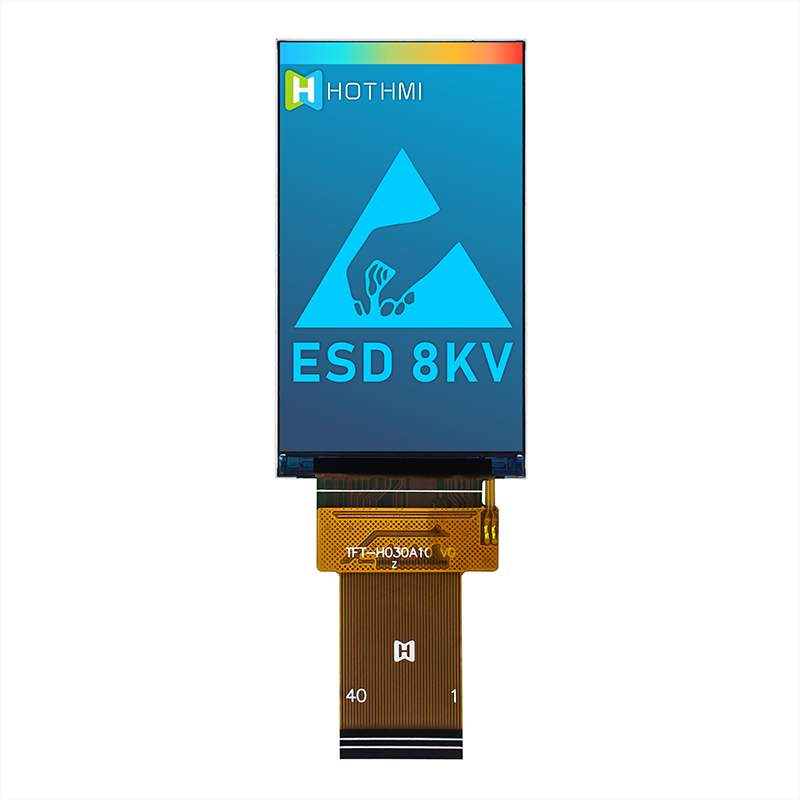

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7703

    PDF download
Product description

3.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7703 For Industrial Computer TFT-H030A10FWIST3N40

Introducing the TFT-H030A10FWIST3N40: A Cutting-Edge 3.0-Inch IPS 480x854 Wide Temperature TFT Display Panel with ST7703 IC for Industrial Computers

Enhance your industrial computer systems with our advanced TFT-H030A10FWIST3N40 display panel, designed to deliver superior performance in even the harshest environments. With a combination of innovative features and rugged construction, this 3.0-inch IPS TFT LCD display is the perfect choice for your industrial computing needs.

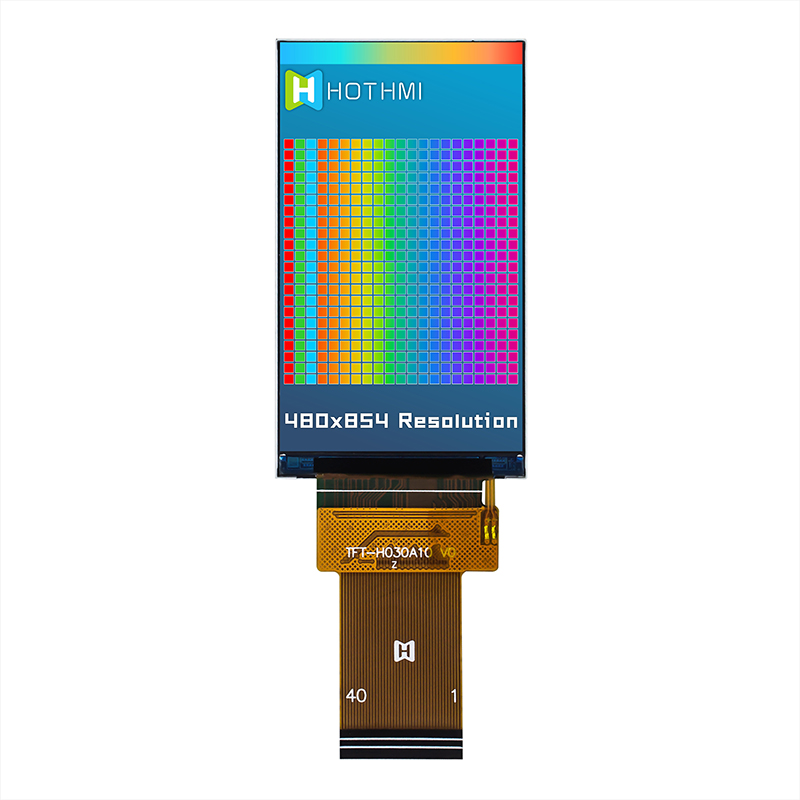

Crystal Clear Visuals: Experience stunning visual clarity and vibrant colors with the impressive 480x854 resolution. Whether you're analyzing critical data or monitoring complex processes, our display ensures every detail is rendered accurately.

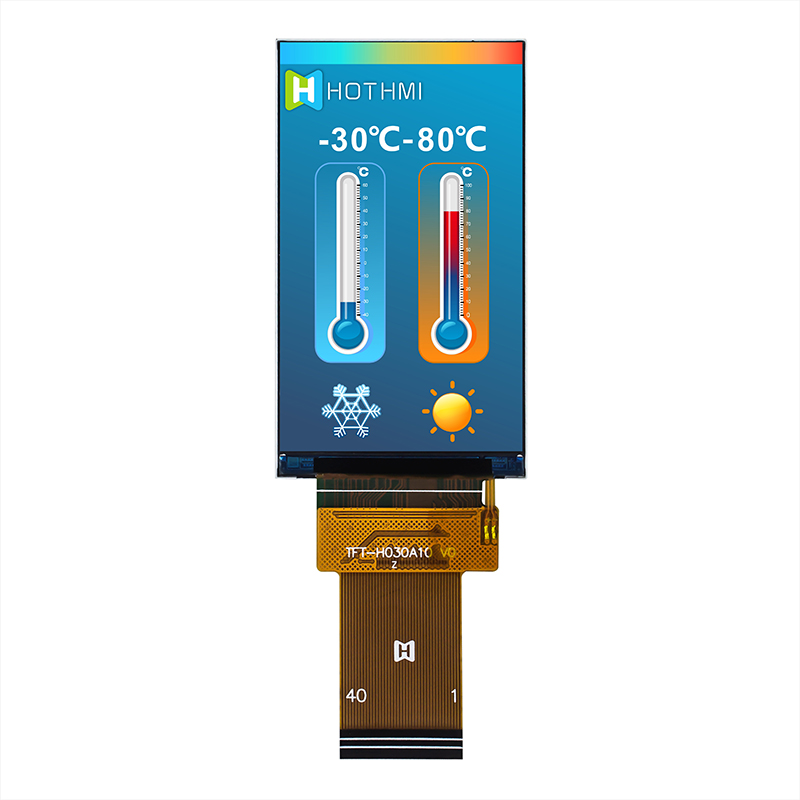

Wide Temperature Range: Engineered to thrive in extreme conditions, the TFT-H030A10FWIST3N40 boasts an exceptional operating temperature range of -30℃ to 80℃. No matter how challenging the environment, this display remains reliable, providing uninterrupted performance.

Seamless Interface: Effortlessly integrate the display into your systems with the RGB+SPI interface. Experience smooth data transmission and quick response times, ensuring a seamless user experience.

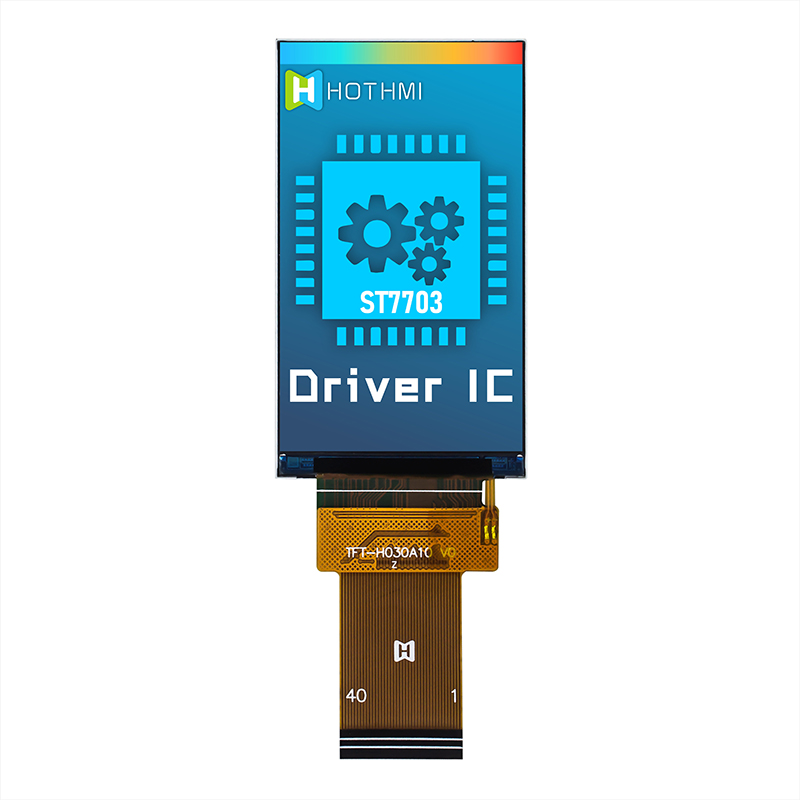

ST7703 IC: Powered by the high-performance ST7703 IC, our display guarantees efficient and reliable operation. Benefit from advanced control and optimized power management, contributing to extended longevity.

Durable Construction: Built tough for industrial applications, the TFT-H030A10FWIST3N40 is constructed to withstand shocks, vibrations, and other physical stresses. Its robust design ensures your display remains operational even in rugged settings.

Versatile Industrial Applications: Whether it's factory automation, medical equipment, outdoor monitoring, or any other industrial application, our display excels. Its adaptability and durability make it an ideal choice across various sectors.

Upgrade your industrial computer systems with the TFT-H030A10FWIST3N40 and experience unparalleled visual quality, durability, and performance. Invest in a display that meets the demands of your challenging work environment. Choose reliability, choose innovation, choose TFT-H030A10FWIST3N40.
