With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 Inch SPI TFT LCD Display IPS Panel Screen 240x320 Lcd Display Manufacturers TFT-H024C4QVIST5N14 | TFT LCD | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full view | 500cd/m2 | 14pin | SPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | ST7789 | |

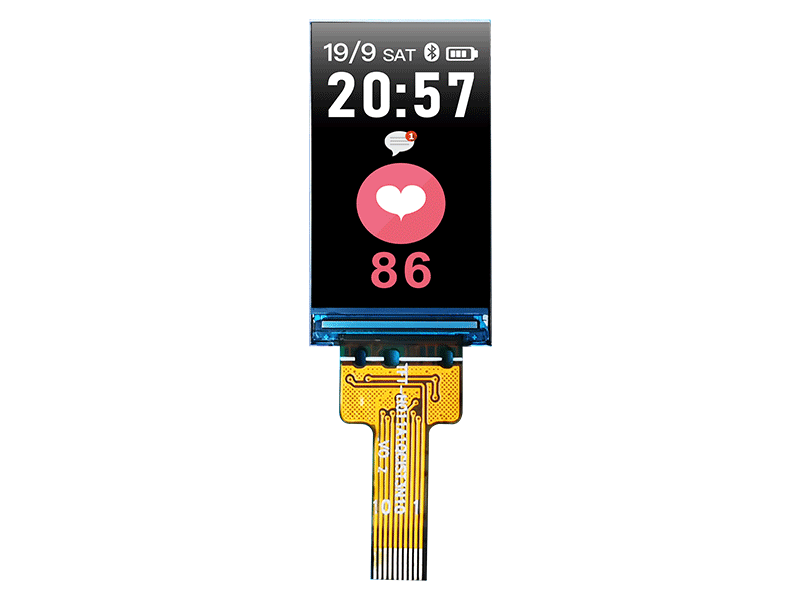

| 1.14 Inch SPI TFT LCD Display IPS Panel Screen 135x240 For Smart Appliances TFT-H011A1QCIST3N10 | TFT LCD | 135X240 |
|
17.6x31.0x1.65 | 1.14 | 1.14 | 14.86x24.91 | Full view | 350cd/m2 | 10pin | SPI | Anti-static ESD 8KV | -20~70℃ | 2.8v | ST7789H2 | |
| 10.1 Inch LCD Display 1024x600 IPS TFT LCD Panel TFT LCD Display Manufacturer TFT-101H101A5WSIFT3N50 | TFT LCD | 1024x600 |
|
235.00×143.00×3.00 | 10.1 | 10.1 | 222.72x125.28 | Full view | 300cd/m2 | 50pin | TTL | 抗靜電ESD 8KV | -20~70℃ | 3.3V | EK79001+EK73215 | |

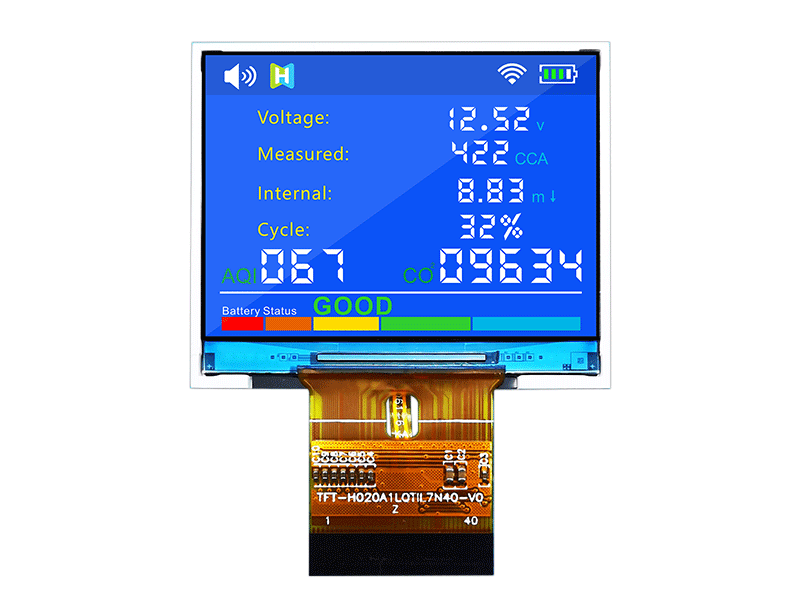

| 2.0 Inch TFT LCD Module Display 320x240 SPI Industrial Monitor Manufacturer TFT-H020A1LQTIL7N40 | TFT LCD | 320x240 |
|
46.1x40.96x2.53 | 2.0 | 2.0 | 40.8x30.6 | Full view | 700cd/m2 | 320x240 | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7789V | |
| 7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer TFT-07002WSIF8N50 | TFT LCD | 1024x600 |
|
164.90×100.00×5.50 | 7.0 | 7.0 | 154.2144x85.92 | Full view | 800cd/m2 | 50pin | TTL | Anti-static ESD 8KV | -20~70℃ | 3.3V | EK79001+EK73215 | |

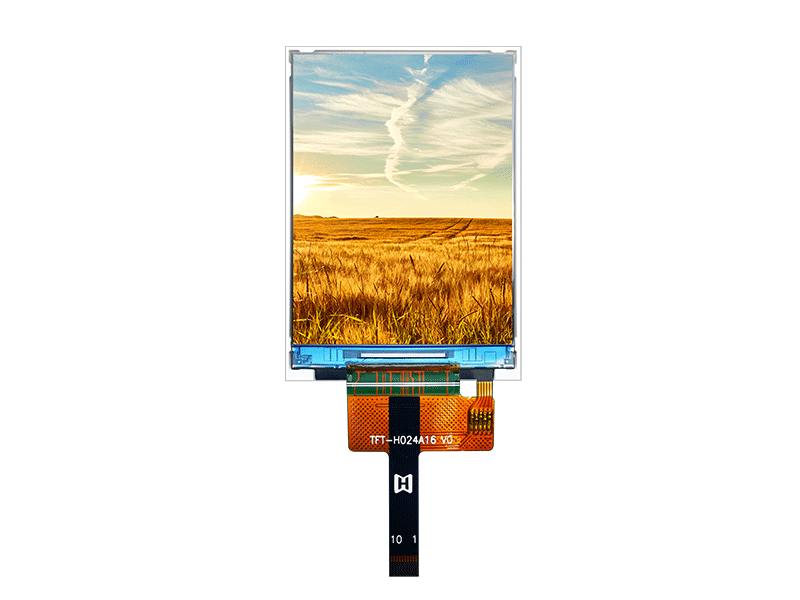

| 2.4 Inch 240x320 SPI Industrial Monitor TFT LCD Display Manufacturer Sunlight Readable TFT-H024A16QVIST6N10 | TFT LCD | 240x320 |
|
42.52x59.61x2.20mm | 2.4 | 2.4 | 36.72x48.96mm | Full view | 600cd/m2 | 10pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789V | |
| 8.0 Inch 800x600 LCD Module Display Industrial Monitor TFT LCD Display Manufacturer TFT-H080A1SVTHX3N50 | TFT LCD | 800x600 |
|
182.9x121.5x7.0 | 8.0 | 8.0 | 162.00x121.5 | Full view | 300cd/m2 | TTL | Anti-static ESD 8KV | -20~70℃ | 3.3V | HX8264+HX8696 | ||
| 8.9 Inch 800x1280 LCD Module IPS Display Industrial Monitor TFT-H089A1WXIFT5N40 | TFT LCD | 800x1280 |
|
125.38x202.84x2.55 | 8.9 | 8.9 | 119.28x190.85 | Full view | 500cd/m2 | 40pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 2.8v | JD9365D | |
| 4.3 Inch IPS SPI Capactitive Touch Panel TFT Display 480x800 Pcap Monitor TFT-H043B15WVIST3C45 | TFT LCD | 480x800 |
|
60.86x102.57x2.3 | 4.3 | 4.3 | 56.16x93.6 | Full view | 350cd/m2 | 45pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S<TFT>,GT911<CTP> | |
| 4.3 Inch Resistive Touchscreen Module 480X800 TFT LCD Display Manufacturer TFT-H043B15WVIST3R45 | TFT LCD | 480x800 |
|
60.86x102.57x3.65 | 4.3 | 4.3 | 56.16x93.60 | Full view | 350cd/m2 | 45pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S |
