Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  1.44寸TFT彩屏128x128分辨率 TFT 模塊面板帶 LCD 控制板 HTM-H014A05-SPI-A01

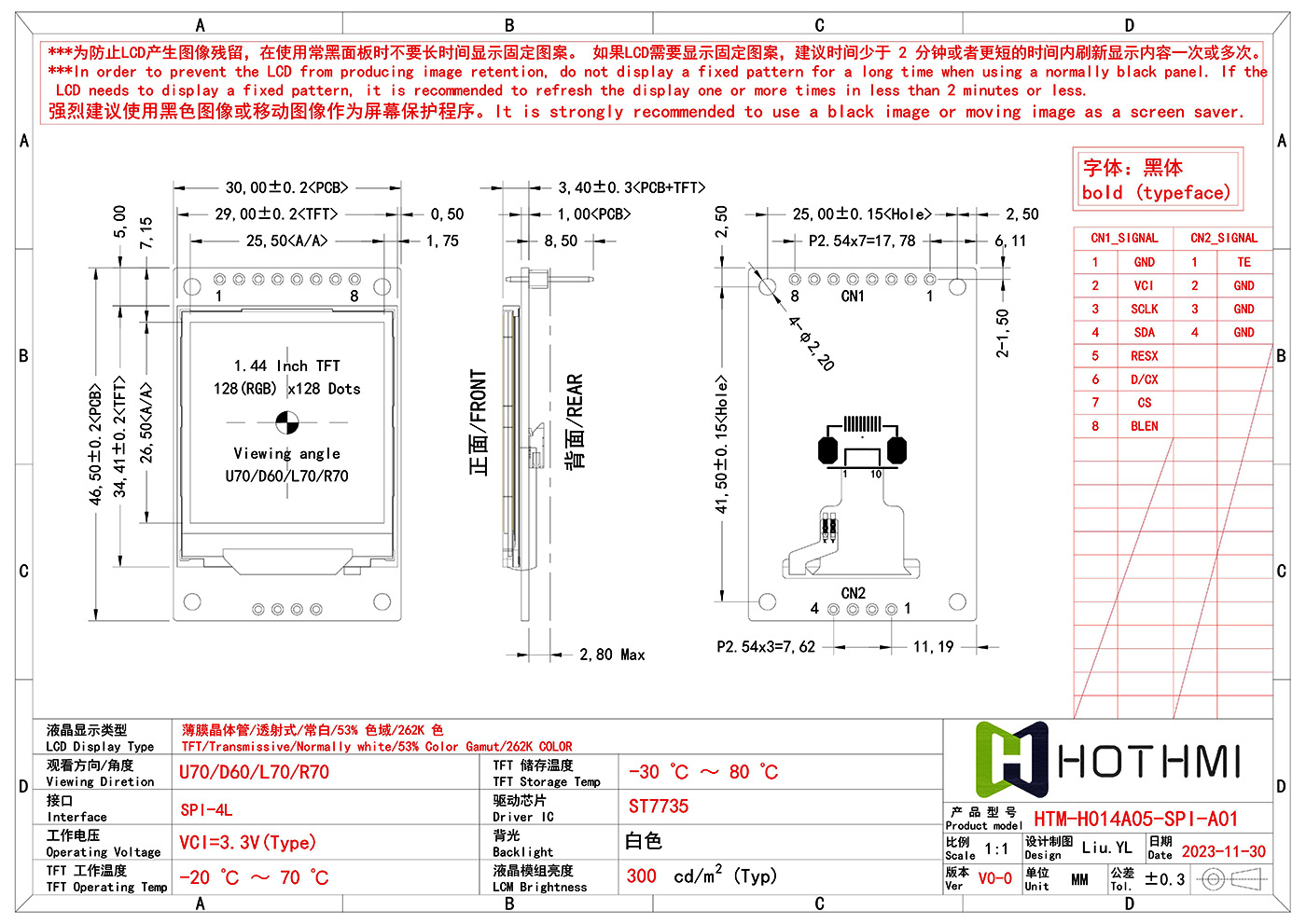

  • Model : 1.44 Inch 128x128 TFT Module Panel With LCD Controller Board HTM-H014A05-SPI-A01

    Product type:TFT Module

    Show contents:128x128

    Outline size(mm) :30x46.5x11.3

    Size of View Window(mm):1.44

    Display size(mm) :1.44

    Effective size(mm):25.5x26.5

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:300cd/m2

    Connection PIN Number:12pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7735

Product description

1.44 Inch 128x128 TFT Module Panel With LCD Controller Board LCM-TFT014T1QQS4LN08D

Introducing the HTM-H014A05-SPI-A01, a high-quality TFT LCD display module designed for small-scale display projects. With a 1.44-inch diagonal screen size and a resolution of 128x128 pixels, this square-shaped display is perfect for showcasing high-quality graphics and images.

Featuring an integrated LCD controller board, interfacing with a microcontroller unit (MCU) is made easy with a serial peripheral interface (SPI) communication protocol. Additionally, with a luminance of 300cd/m2 and an operating temperature range of -20°C to 70°C, this display is suitable for both indoor and outdoor environments.

The HTM-H014A05-SPI-A01 uses the ST7735 controller IC, which offers a high-speed SPI interface and a wide range of features such as color inversion, partial display mode, and programmable frame rate. The built-in backlight driver circuit ensures clear images even in low-light conditions.

If you're looking for a compact and versatile solution for your display projects, the HTM-H014A05-SPI-A01 TFT LCD display module is the perfect choice. Experience high-quality graphics and ease of use with this innovative display solution.
