Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  4寸條形 TFT 液晶顯示器 400x960分辨率RGB 工業顯示器制造商TFT-H040A18ZDIST5N40
  • Model : 4.0 Inch Bar TFT LCD Display 400x960 Dots RGB Industrial Monitor Manufacturer TFT-H040A18ZDIST5N40

    Product type:TFT Bar

    Show contents:400x960

    Outline size(mm) :41.40x101.58x2.04

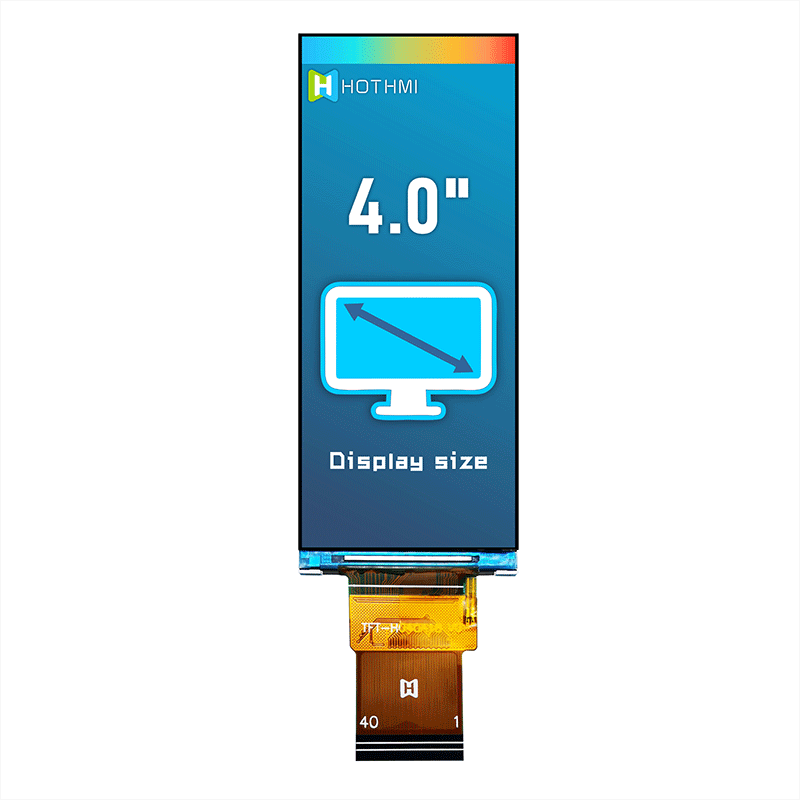

    Size of View Window(mm):4.0

    Display size(mm) :4.0

    Effective size(mm):39.18x94.03

    Product application:Instrumentation

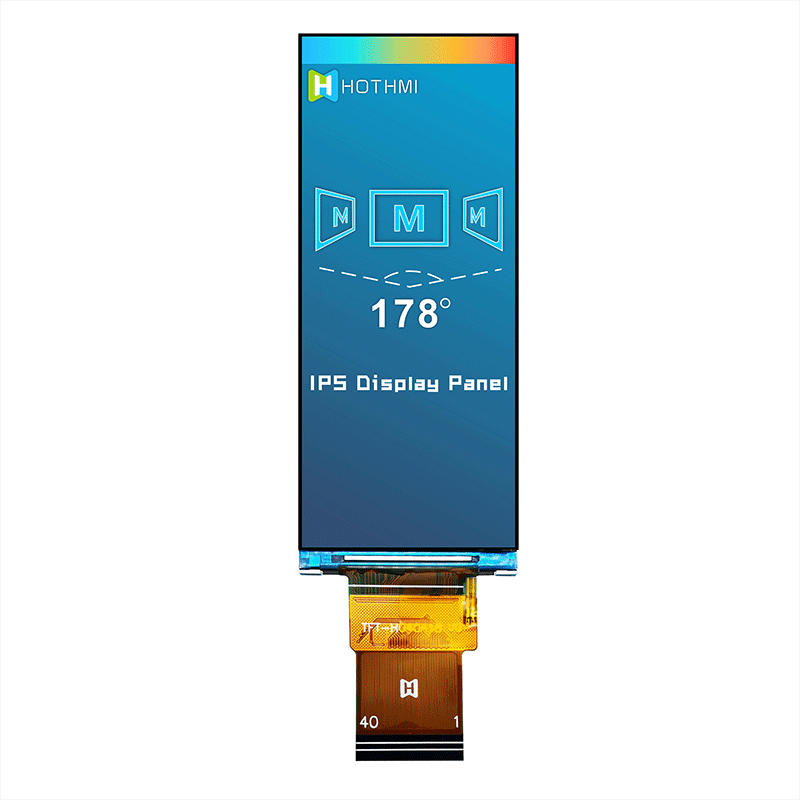

    Visual angle:Full view

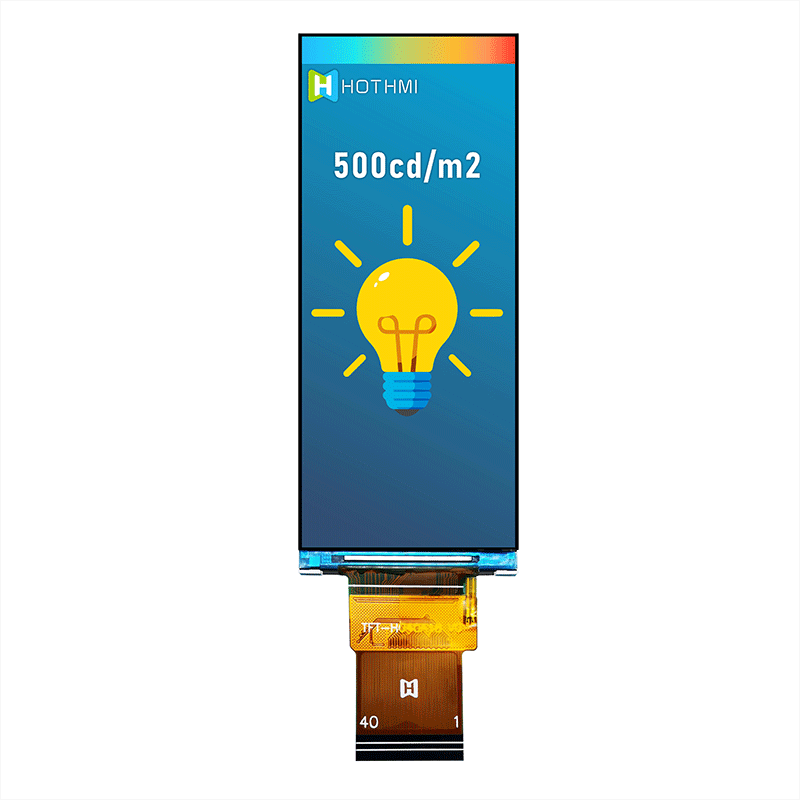

    Backlight type or brightness:500cd/m2

    Connection PIN Number:40pin

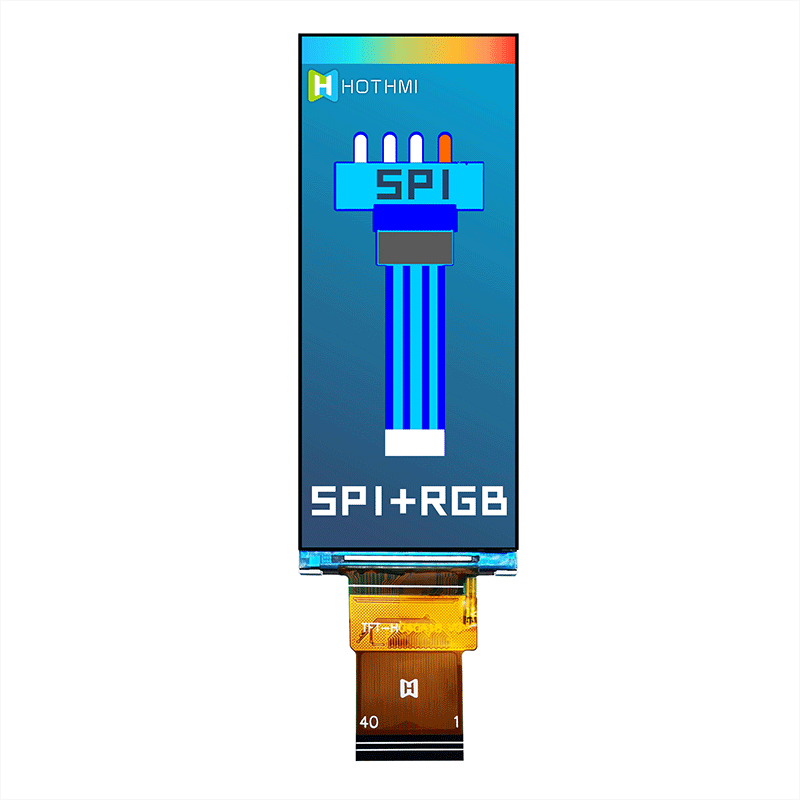

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

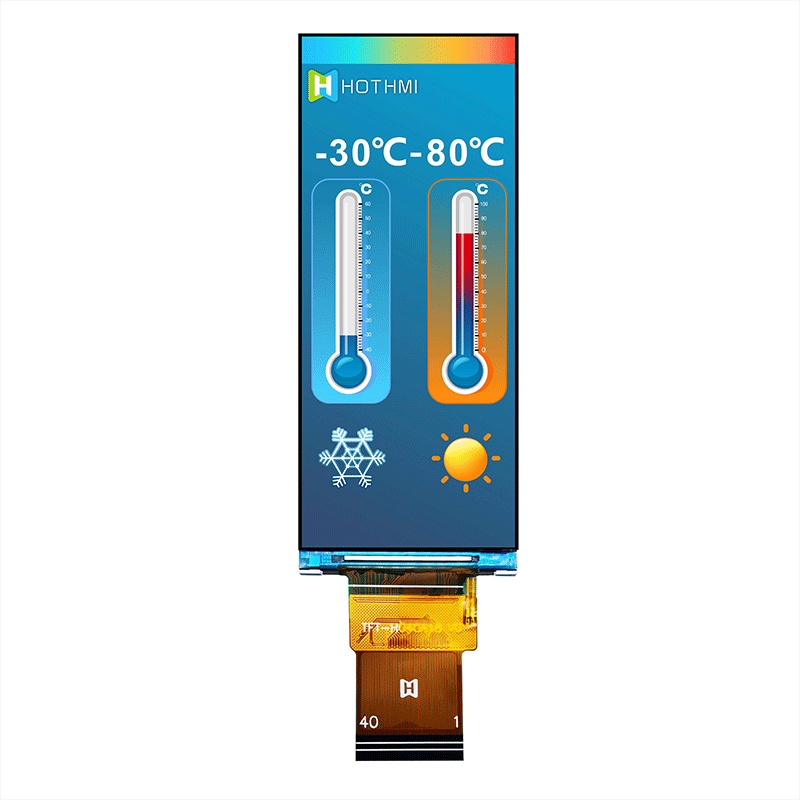

    Working temperature:-30~80℃

    Power supply voltage:3.3V

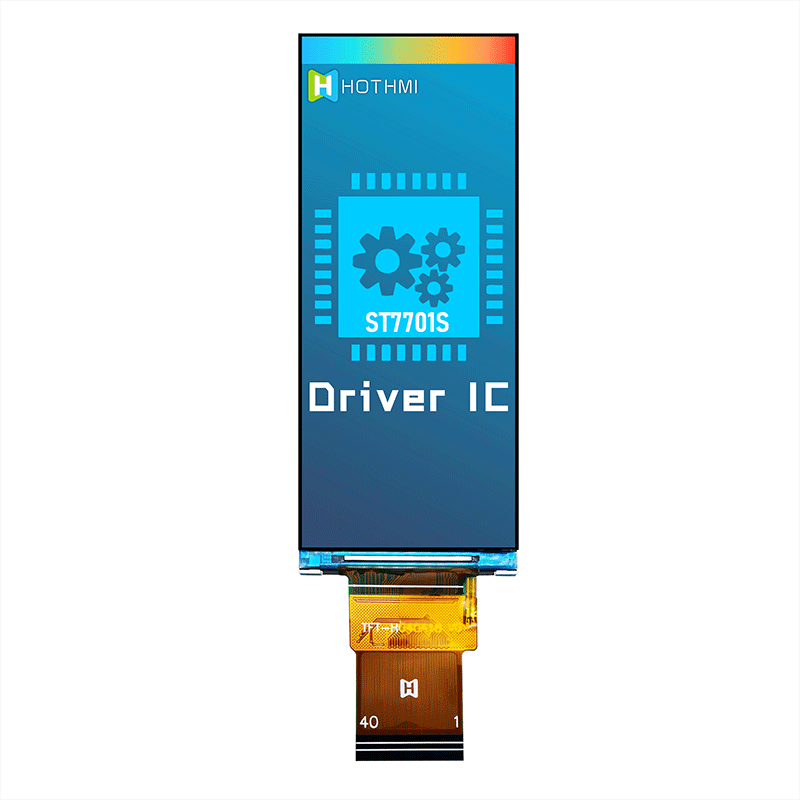

    Driver chip model:ST7701S

    PDF download
Product description

4.0 Inch Bar TFT LCD Display 400x960 Dots RGB Industrial Monitor Manufacturer

The TFT-H040A18ZDIST5N40 is a 4.0 inch IPS LCD display with a resolution of 400x960 pixels, specifically designed for industrial monitoring applications. This high-quality display features a luminance of 500cd/m2, ensuring excellent visibility even in bright ambient light conditions. The interface supports both RGB and SPI, making it easy to integrate with a wide range of systems. The display is driven by an ST7701S IC, which provides advanced image processing, color management, and power management capabilities, ensuring optimal display performance and reduced power consumption. Moreover, this industrial monitor is designed to operate in a wide temperature range, from -30°C to 80°C, making it ideal for use in harsh environments. Overall, the TFT-H040A18ZDIST5N40 is a reliable and versatile TFT LCD display that is perfect for industrial monitoring applications that require a small, rugged display with excellent image quality and flexible integration options.
