Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  4.3寸TFT彩屏 /480*272分辨率 /全視角IPS工藝 /RGB 24Bit/IIC接口 /TFT-H043A21WQIST8C40
  • Model : 4.3 inch TFT color screen /480*272 resolution /full viewing angle IPS process /RGB 24Bit/IIC interface /TFT-H043A21WQIST8C40

    Product type:TFT horizontal screen

    Show contents:480x272

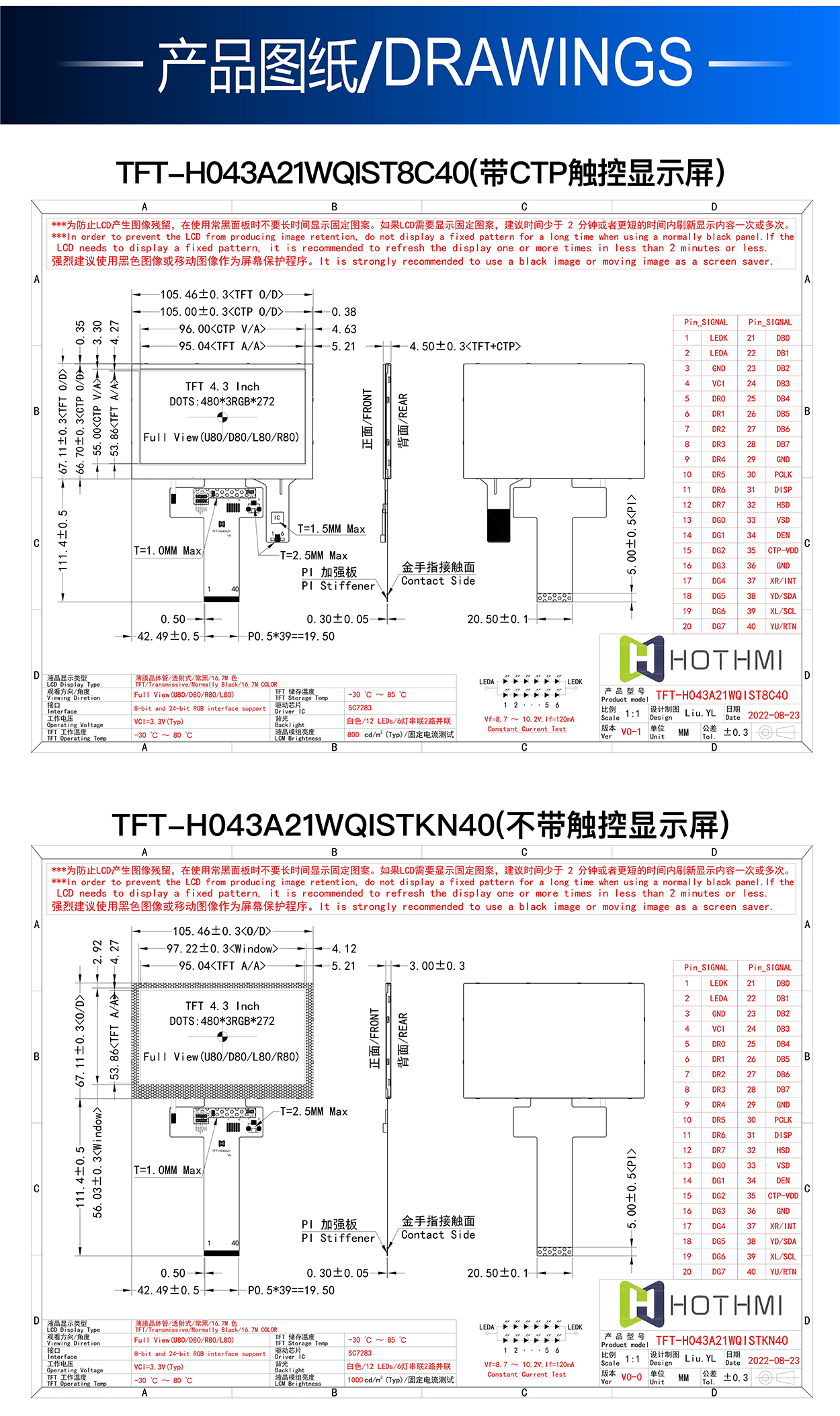

    Outline size(mm) :105.46x67.11x4.5

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.86

    Product application:Industrial Display/Home Appliances

    Visual angle:Full view

    Backlight type or brightness:800cd/m2

    Connection PIN Number:40PIN

    Interface mode:RGB

    Special instructions:Capacitive touch IC with CTP GT911

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:SC7283

    PDF download
Product description

DESCRIPTION

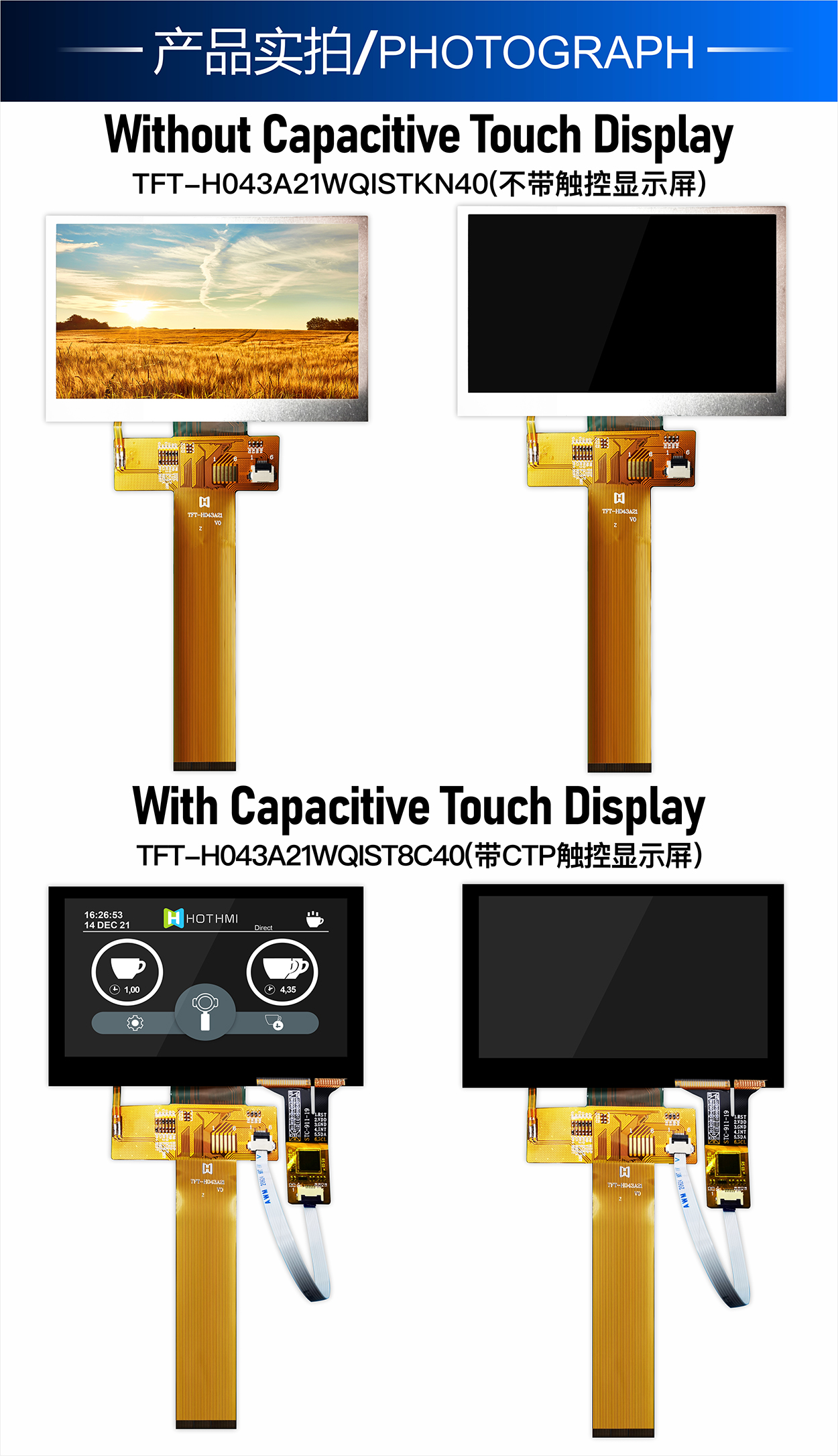

TFT-H043A21WQIST8C40 is a 4.3-inch Wide Temperature IPS TFT-LCD display with a Projected Capacitive Touch screen, made of resolution 480x272 pixels. This module is built-in with SC7283 driver ICs, and it supports 24-bit RGB interface. TFT-H043A21WQIST8C40 is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 800 nits (typical value), glare surface panel, aspect ratio 16:9. The  touch screen is built-in with GT911 IC, supporting I2C interface and multi-touch function. The H043A21 model has a projected capacitive touch panel (PCAP) and without a touch panel option (TFT-H043A21WQIST8C40).

The supply voltage (VCC) of TFT-H043A21WQIST8C40 is from 3.0V to 3.6V, the typical value of 3.3V. It can be operating at temperatures from -30℃ to+ 80℃ and storage temperatures from -30℃ to +80℃.
4.3 inch TFT color screen / 480*272 resolution / full viewing angle IPS process / RGB 24Bit / IIC interface / TFT-H043A21WQIST8C40 / used in coffee machines, home appliances, industrial control, medical display equipment, visible in sunlight4.3寸TFT-H043A21WQIST8C40詳情3.jpg4.3寸TFT-H043A21WQIST8C40詳情4.jpg
