Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  4寸86盒子顯示屏MCU接口TFT/320*320分辨率/IPS全視角/TFT-H040A12DHIIL4N40

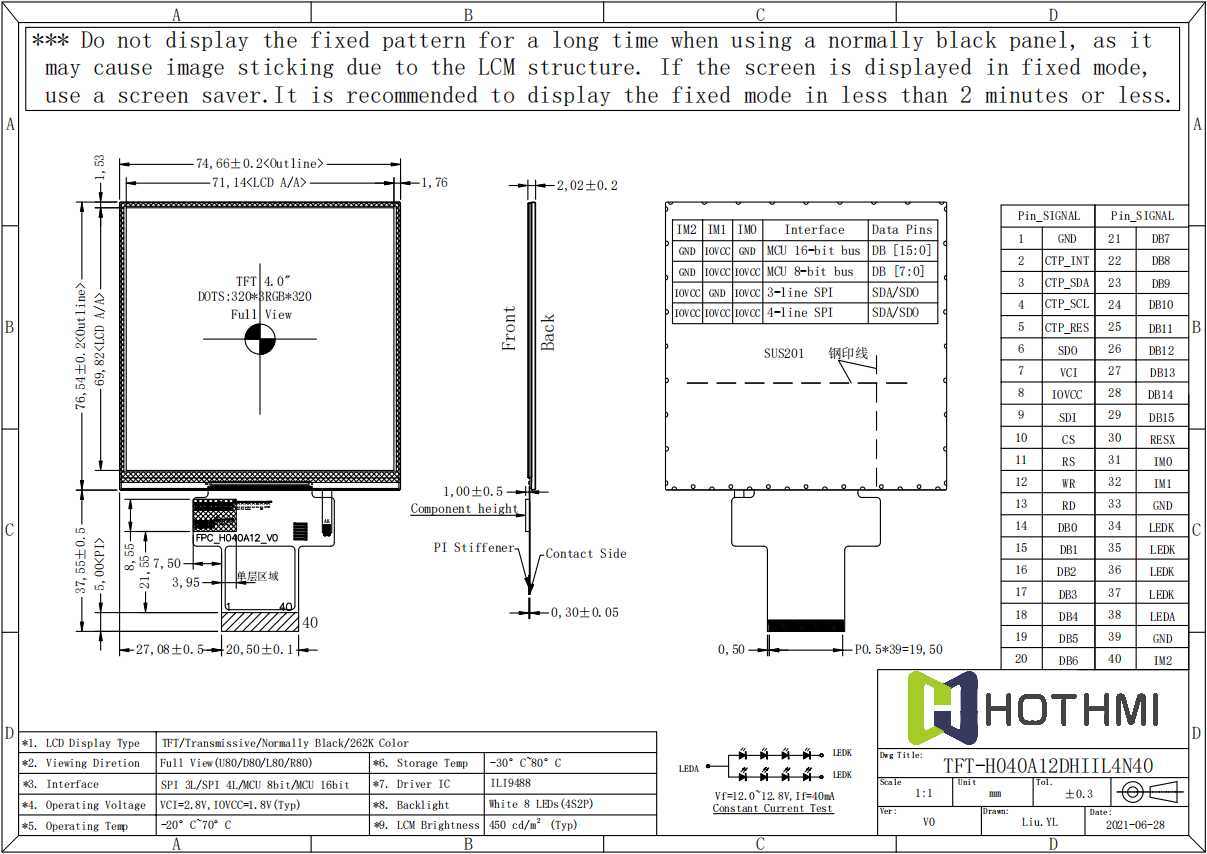

  • Model : 4.0 inch TFT /320*320 resoliution/Full view/TFT-H040A12DHIIL4N40

    Product type:TFT LCD

    Show contents:320x320

    Outline size(mm) :74.66x76.54x2.02

    Size of View Window(mm):4.0

    Display size(mm) :4.0

    Effective size(mm):71.14x69.82

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:450cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:450cd/m2

    Power supply voltage:2.8v

    Driver chip model:ILI9488

Product description
