Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  1U機(jī)箱顯示屏 | 7寸長條形TFT | 280*1424分辨率| 全視角| MIPI接口 | TFT-H070A10ZBIOT6N40

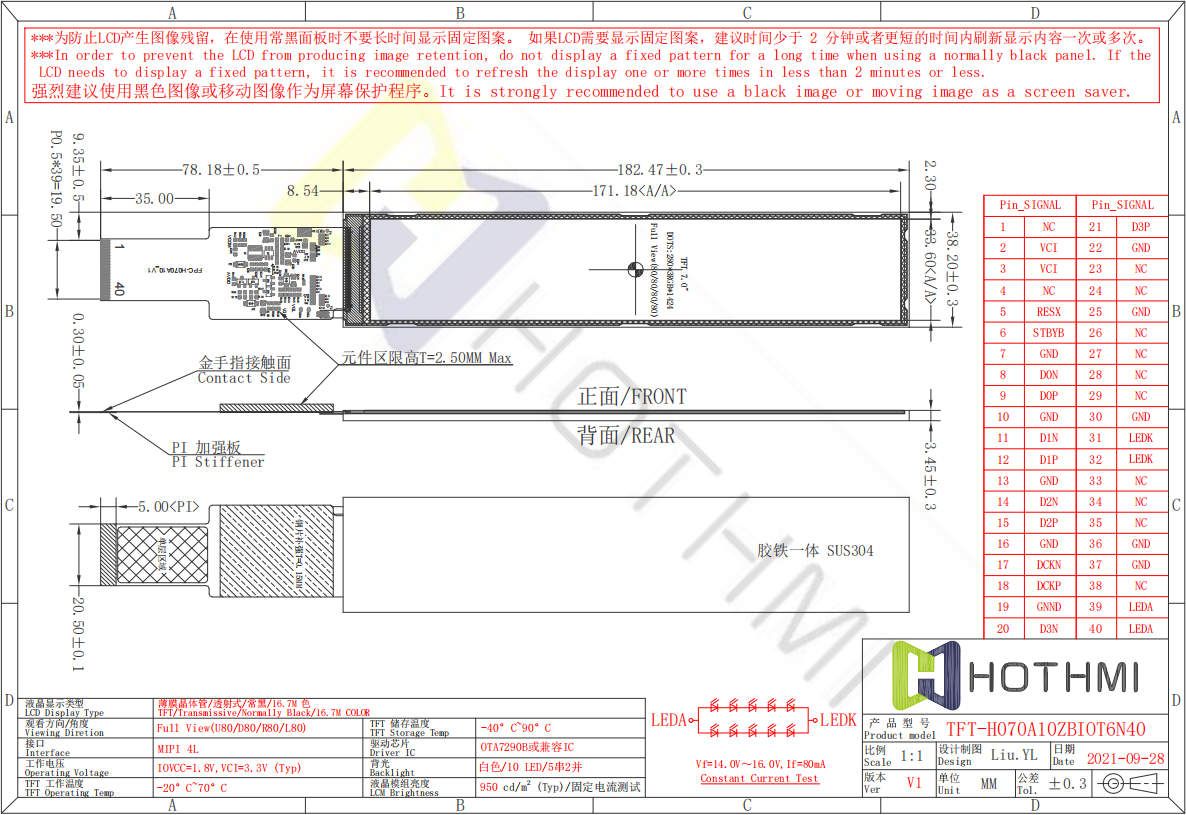

  • Model : 7.0 inch TFT /280*1424 resoliution/Full view/MIPI Interface/TFT-H070A10ZBIOT6N40

    Product type:TFT LCD

    Show contents:280x1424

    Outline size(mm) :182.47x38.20x3.45

    Size of View Window(mm):7.0

    Display size(mm) :7.0

    Effective size(mm):171.18x33.60

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:600cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:MIPI

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:OTA7290B或兼容IC

Product description
