Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.4寸TFT/檢測儀液晶屏/240*320分辨率/全視角/高亮/MIPI接口/TFT-H024B12QVIFT8N15

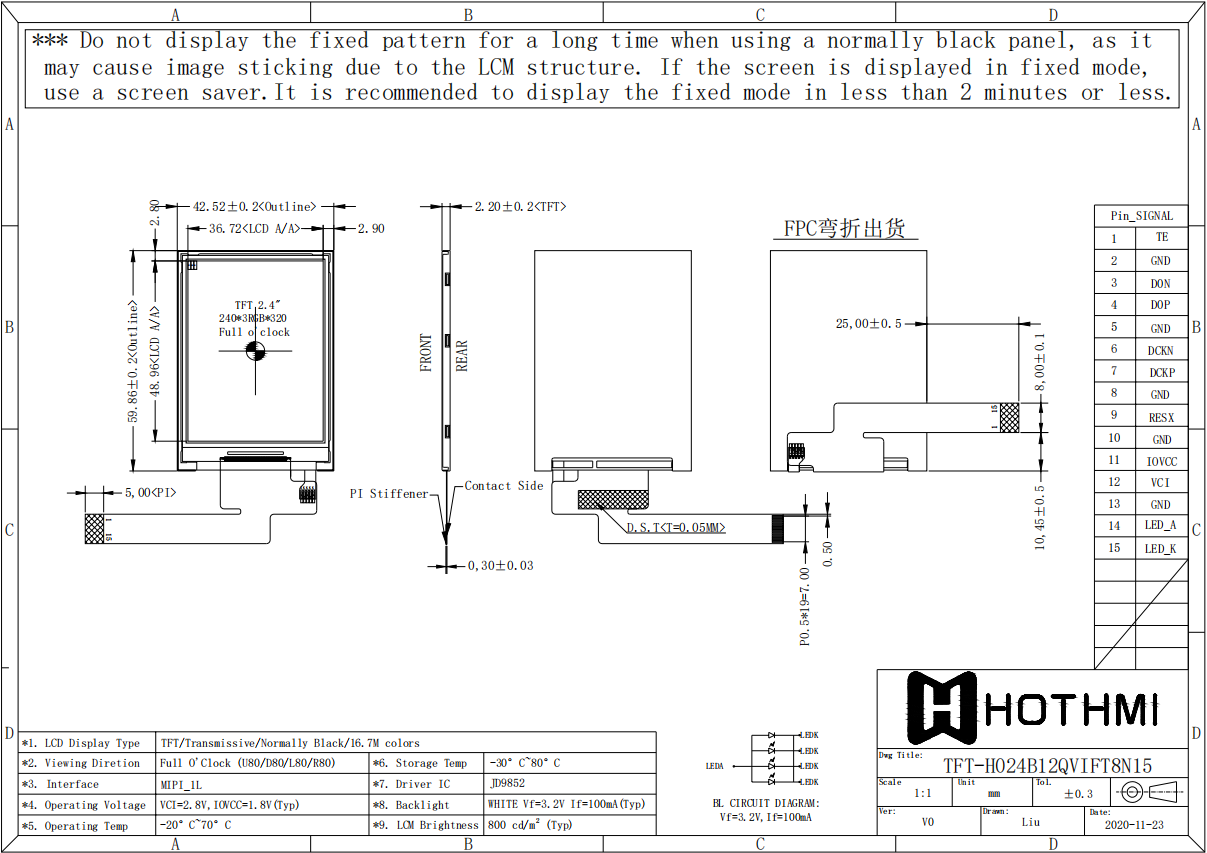

  • Model : 2.4 inch TFT /Detector LCD screen/240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15

    Product type:TFT

    Show contents:240x320

    Outline size(mm) :42.52x59.86x2.20

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:800cd/m2

    Connection PIN Number:FPC-15PIN

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:JD9852

Product description

TFT-H024B12QVIFT8N15 is a 2.4-inch TFT color LCD screen carefully designed by the HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in JD9852 controller, support MIPI interface, no peripheral circuit required, 15PIN The plug-in FPC can be connected to the motherboard (optional connector), and the single power supply DC 3.2V power supply. The TFT module can be equipped with a touch screen, and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.image.png
