Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  1.54寸TFT正方形/240*240分辨率/全視角/SPI接口/1.5寸方屏/戶外儀器儀表/TFT-H015A2QQIST4N10

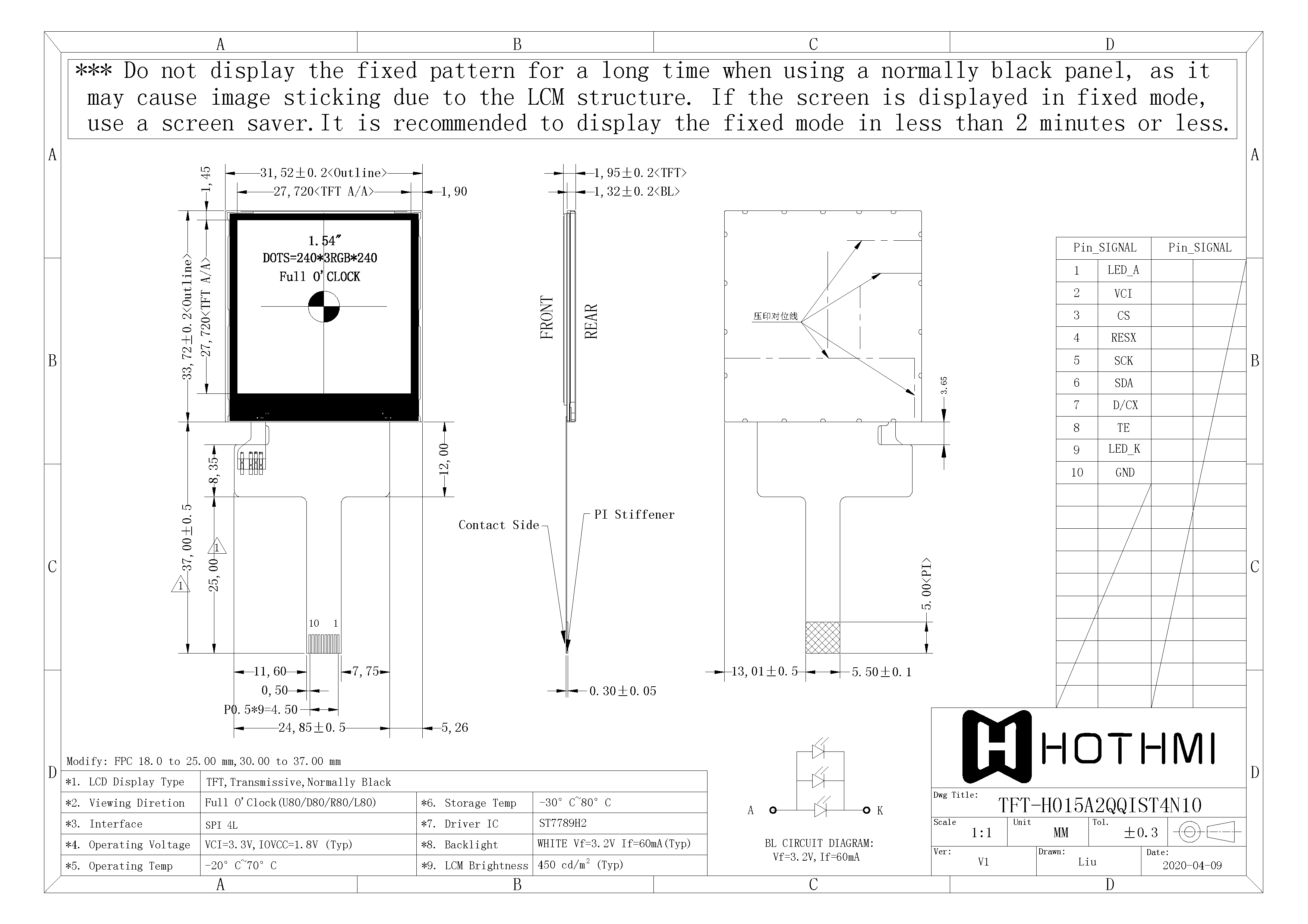

  • Model : 1.54 inch TFT/ 240 * 240 resolution whole perspective/highlight / 1.5 inch TFT - H015A2QQIST4N10

    Product type:TFT LCD

    Show contents:240x240

    Outline size(mm) :31.52x33.72x1.95

    Size of View Window(mm):1.54

    Display size(mm) :1.54

    Effective size(mm):27.72x27.72

    Product application:Smart apparel, instruments and meters

    Visual angle:Full View

    Backlight type or brightness:450cd/m2

    Connection PIN Number:10PIN

    Interface mode:SPI

    Special instructions:4L

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7789H2
