Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  1.3寸方形TFT小熊派專用/全視角/240*240分辨率/全視角/TFT-H013C4QQIST3N18焊接

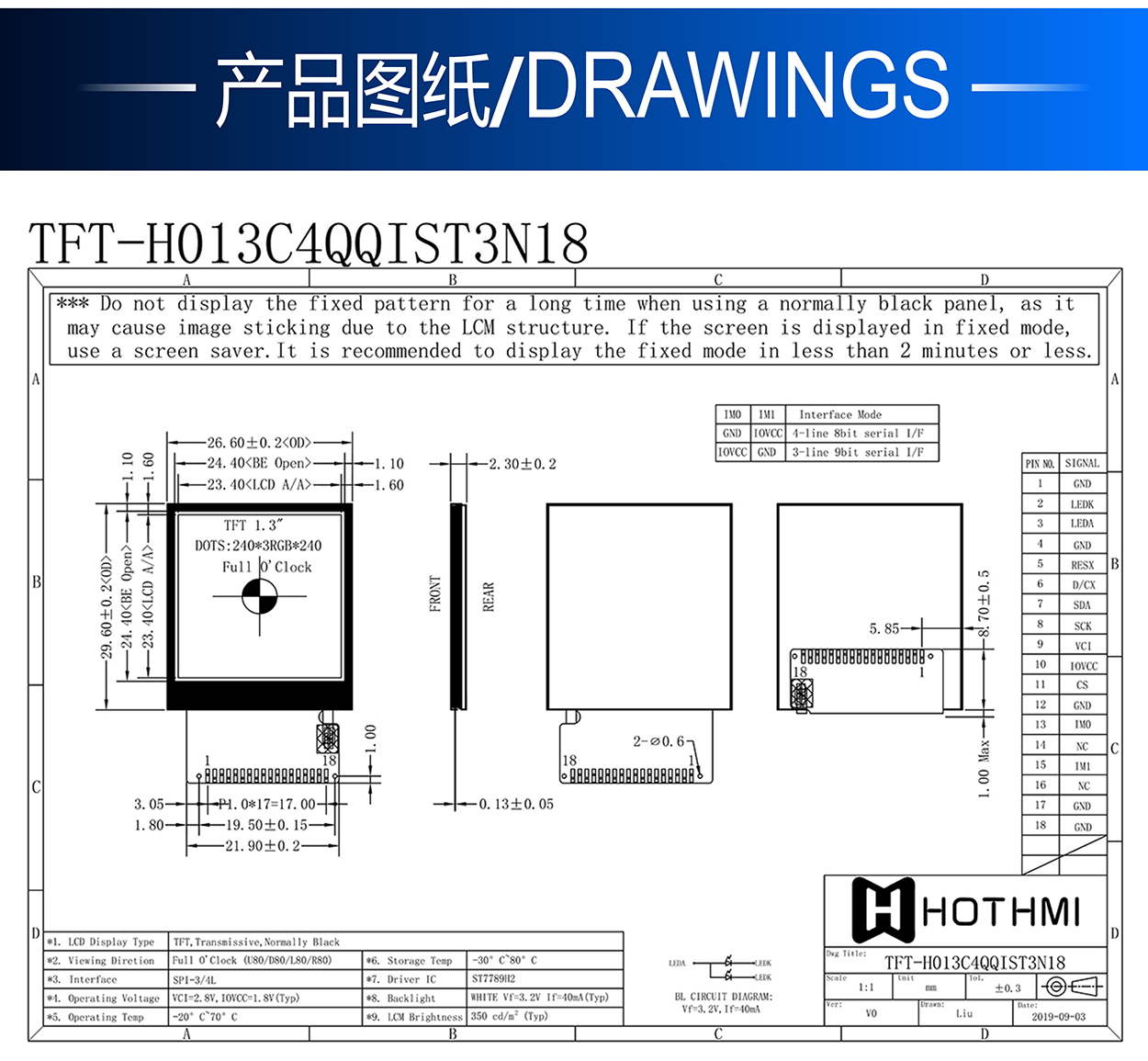

  • Model : 1.3 inch TFT | full view | 240 * 240 resolution SPI interface|TFT-H013C4QQIST3N18

    Product type:TFT LCD

    Show contents:240x240

    Outline size(mm) :26.6x29.6x2.3

    Size of View Window(mm):1.3

    Display size(mm) :1.3

    Effective size(mm):23.4x23.4

    Product application:Smart wear

    Visual angle:Full View

    Backlight type or brightness:350cd/m2

    Connection PIN Number:18PIN

    Interface mode:SPI

    Special instructions:SPI 3L/4L

    Working temperature:-20~70 C

    Power supply voltage:2.8V

    Driver chip model:ST7789H2

    PDF download
Product description

Product Description TFT-H013C4QQIST3N18 is a 1.3-inch full-color TFT LCD module with a resolution of 80x160 pixels and an aspect ratio of 1:2. The TFT module adopts ST7789H2 driver IC and supports SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 400 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
