Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.4寸TFT彩屏|240*320分辨率|SPI接口|全視角|高亮TFT-H024A5QVTST8R18
  • Model : 2.4 inch TFT | 240 * 320 resolution _SPI interface | highlighting TFT - H024A5QVTST8R18

    Product type:TFT LCD

    Show contents:240x320

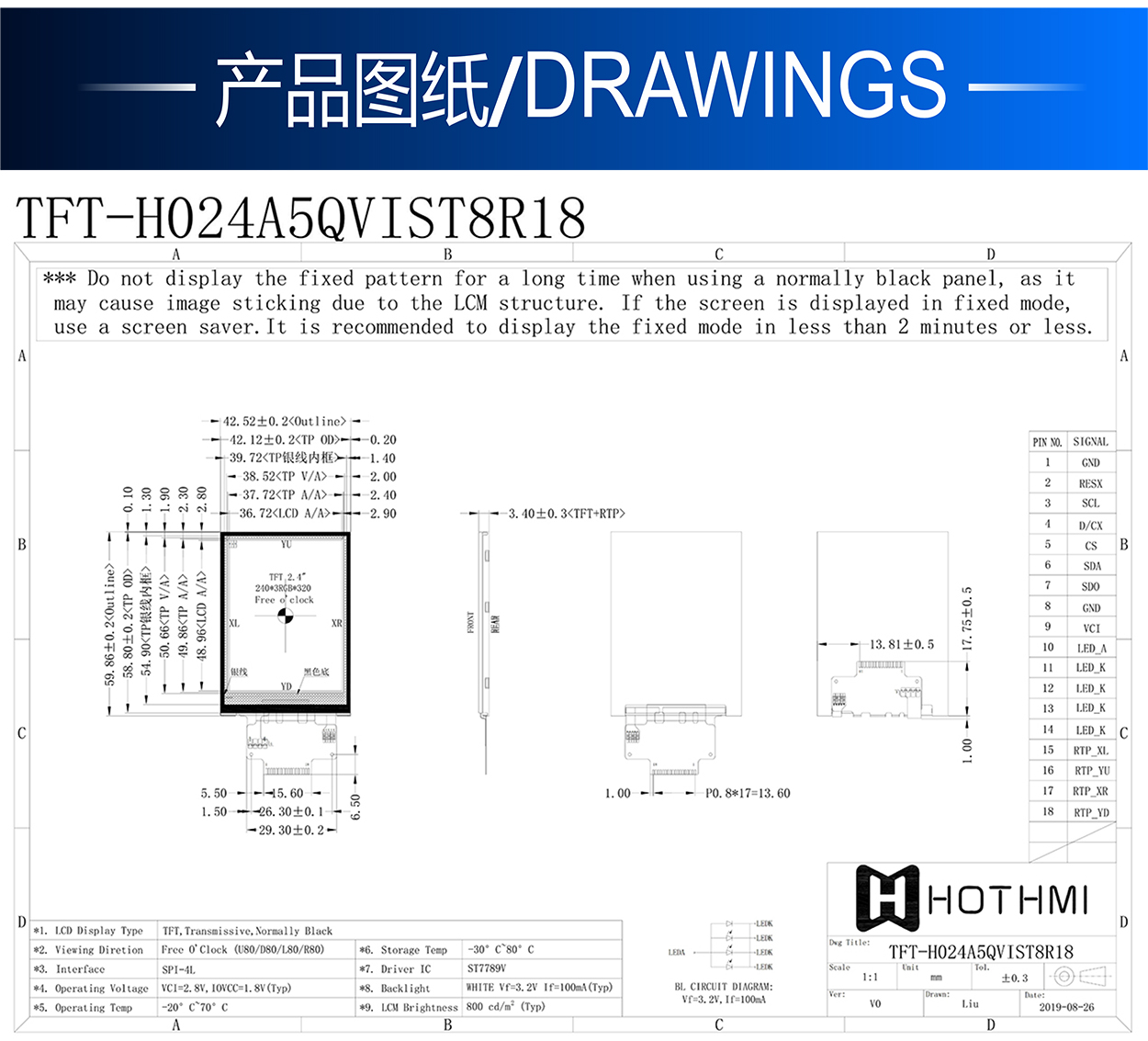

    Outline size(mm) :42.52x59.86x3.4

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Arduino

    Visual angle:Full View

    Backlight type or brightness:850cd/m2

    Connection PIN Number:18PIN

    Interface mode:SPI

    Special instructions:With RTP

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7789V

Product description

TFT-H024A5QVTST8R18 is a 2.4-inch wide warm IPS TFT-LCD display with a project-resistive touch screen with a resolution of 240x320 pixels. Module built-in ST7789V driver IC, support SPI interface. The TFT-H024A5QVTST8R18 uses an IPS panel with the advantage of a wider viewing Angle, left: 80/ right: 80/ top: 80/ bottom: 80 degrees (typical), contrast 800:1 (typical), Brightness 800 nits (typical)) value), glare panel, 16:9 aspect ratio. The H024A5 model has a projection resistive touch panel (PCAP) and the TFT-H024A5QVTST8R18 has a supply voltage (VCC) of 3.0V to 3.6V, with a typical value of 3.3V. It can operate at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.
