Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  10.1寸TFT橫屏|帶電容觸摸|1024x600IPS寬視角|LVDS接口|厚度5.0高亮度背光TFT-H101A9WSIFTKC40
  • Model : 10.1 inch TFT with CTP | 1024x600 ips wide view | TFT - H101A9WSIFTKC40 an LVDS interface

    Product type:TFT LCD

    Show contents:1024x600

    Outline size(mm) :235.0x143.0x5.0

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):222.72*125.28

    Product application:Industrial equipment

    Visual angle:Full View

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:40pin

    Interface mode:LVDS

    Special instructions:With CTP

    Working temperature:-20~70 C

    Power supply voltage:3.3V

    Driver chip model:EK79001+EK73215

Product description

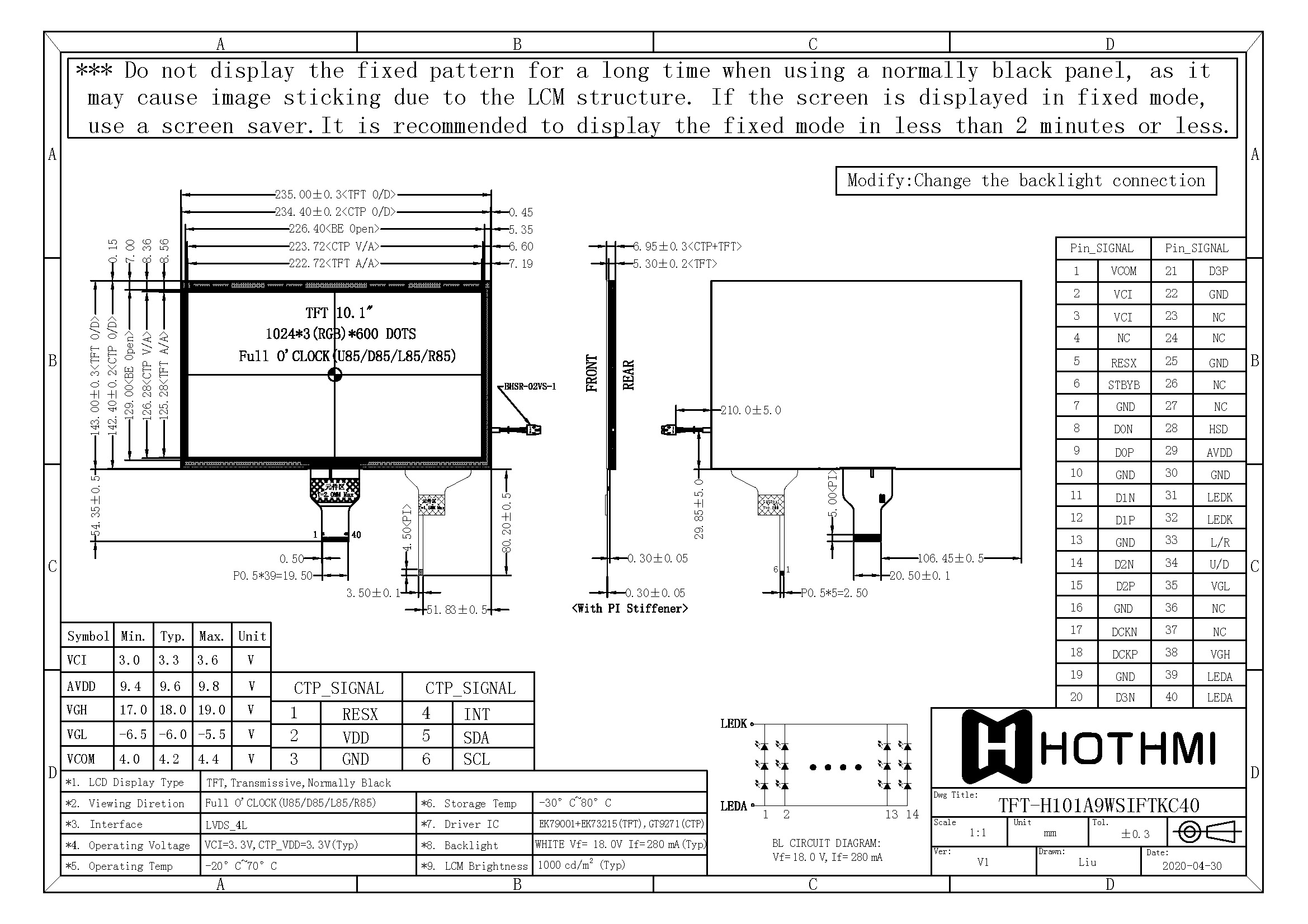

10.1 inch TFT with CTP | 1024 * 600 ips wide view | TFT - H101A9WSIFTKC40 an LVDS interfaceTFT-H101A9WSIFTKC40_V1.jpg
