Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  10.1寸TFT橫屏|1024*600IPS寬視角|RGB接口|厚度5.0高亮度TFT-H101A3WSIFT7N50
  • Model : 10.1 inch TFT landscape | 1024 * 600 ips wide Angle of view | RGB interface thickness 5.0 high brightness TFT - H101A3WSIFT7N50

    Product type:TFT LCD

    Show contents:1024x600

    Outline size(mm) :235.0x143.0x5.0

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):222.72x125.28

    Product application:Industrial instrumentation

    Visual angle:Full View

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:50PIN

    Interface mode:RGB

    Working temperature:-20~70 C

    Power supply voltage:3.3V

    Driver chip model:EK79001+EK73215

Product description

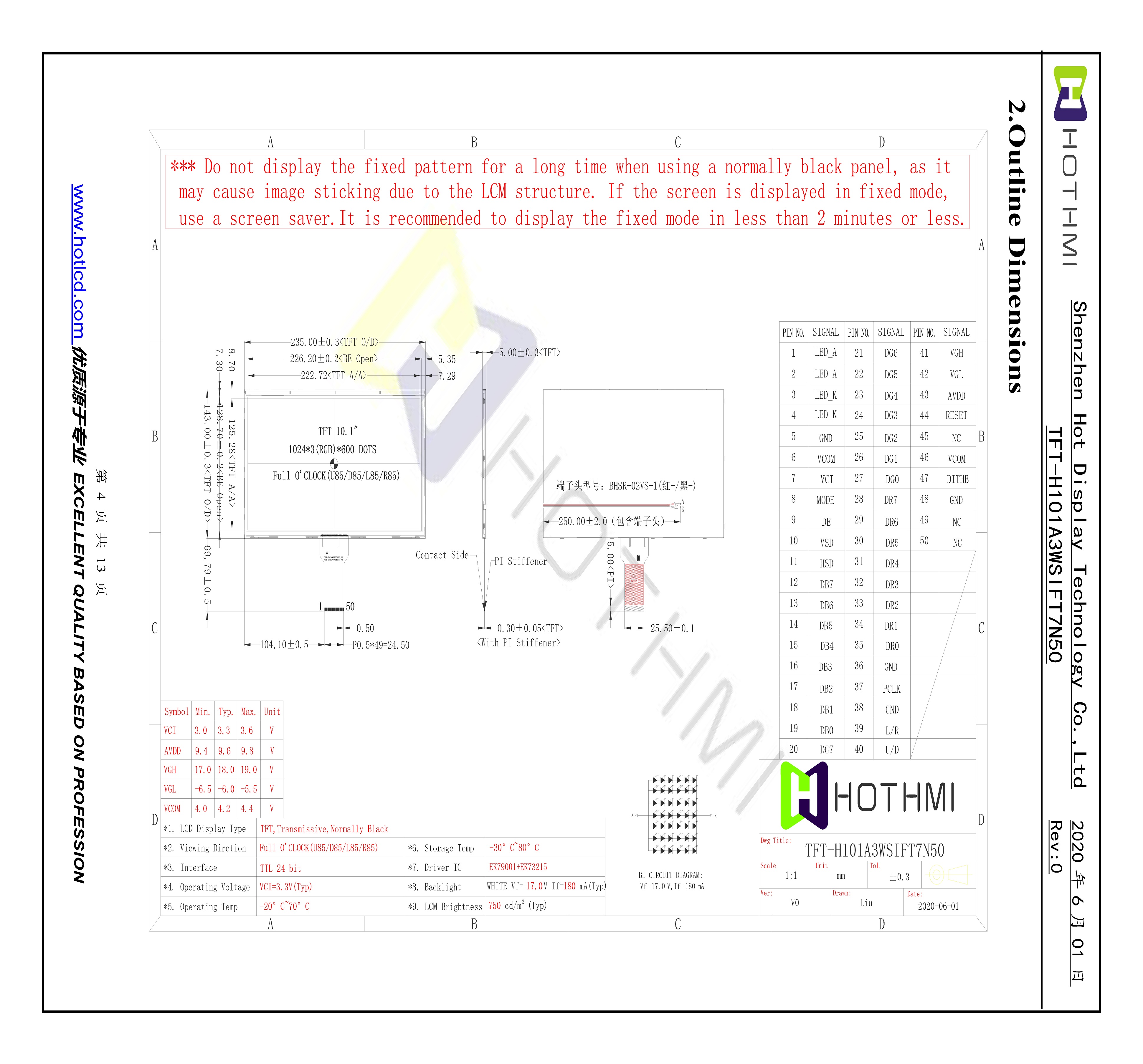

10.1 inch TFT landscape | 1024 * 600 ips wide Angle of view | RGB interface thickness 5.0 high brightness TFT - H101A3WSIFT7N50TFT-H101A3WSIFT7N50.jpg
