Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  4.5寸TFT/480*854分辨率/MCU接口/TFT-H045C1FWTNT4N40
  • Model : 4.5寸TFT/480*854Resolution/MCU interface/TFT-H045C1FWTNT4N40

    Product type:TFT LCD

    Show contents:480x854

    Outline size(mm) :60.00×109.00×2.25

    Size of View Window(mm):4.5

    Display size(mm) :4.5

    Effective size(mm):55.44x98.64

    Visual angle:12H

    Backlight type or brightness:400cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:MCU

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8v

    Driver chip model:NT35510S

    PDF download
Product description

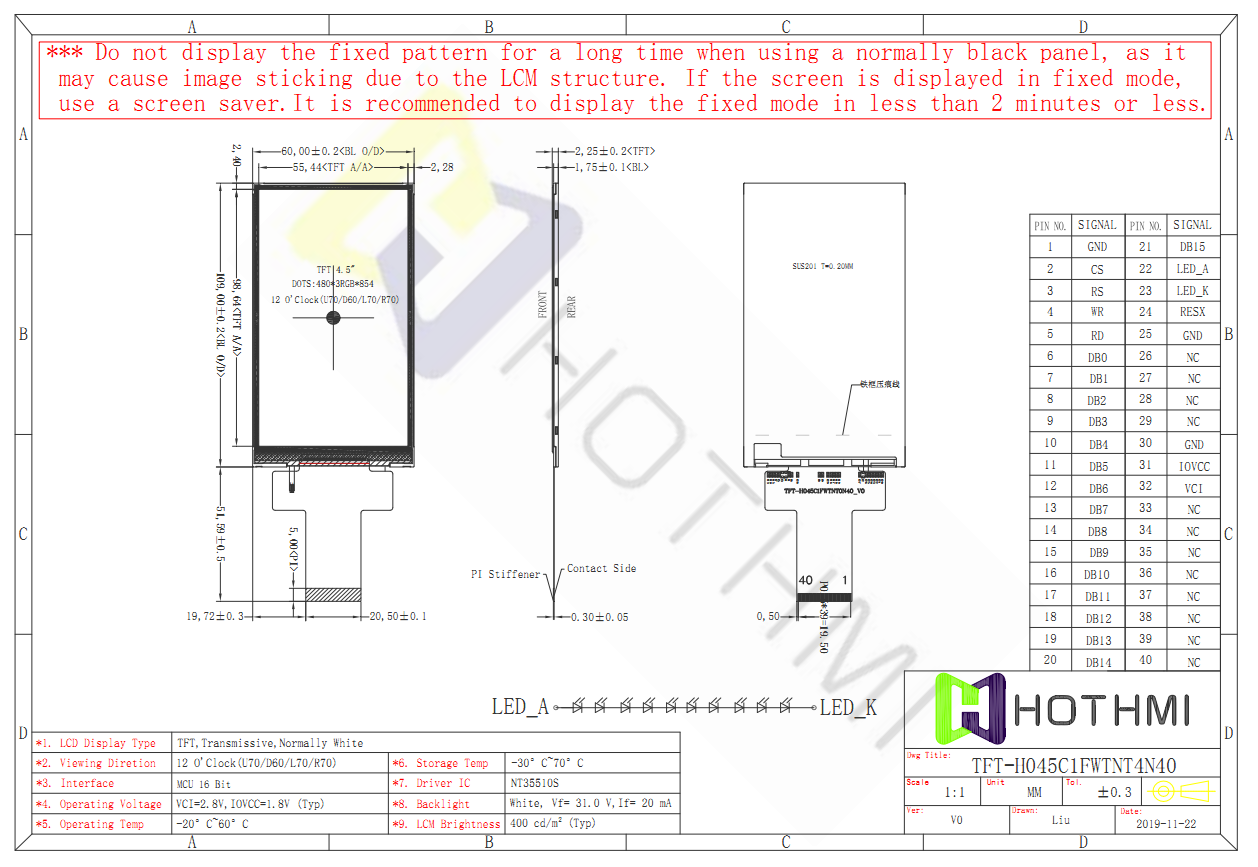

4.5寸TFT/480*854Resolution/MCU interface/TFT-H045C1FWTNT4N40image.png
