Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.4寸TFT/240*320分辨率/SPI接口/TFT-H024C8QVTST2N18
  • Model : 2.4 inch TFT/240*320 resolution/SPI interface/TFT-H024C8QVTST2N18

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :42.72x60.26x2.30

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Vehicle, medical, industrial control

    Visual angle:12 o 'clock

    Backlight type or brightness:250cd/m2

    Connection PIN Number:FPC-18PIN

    Interface mode:SPI

    Working temperature:-20~70℃

    Power supply voltage:2.8v

    Driver chip model:ST7789V

Product description

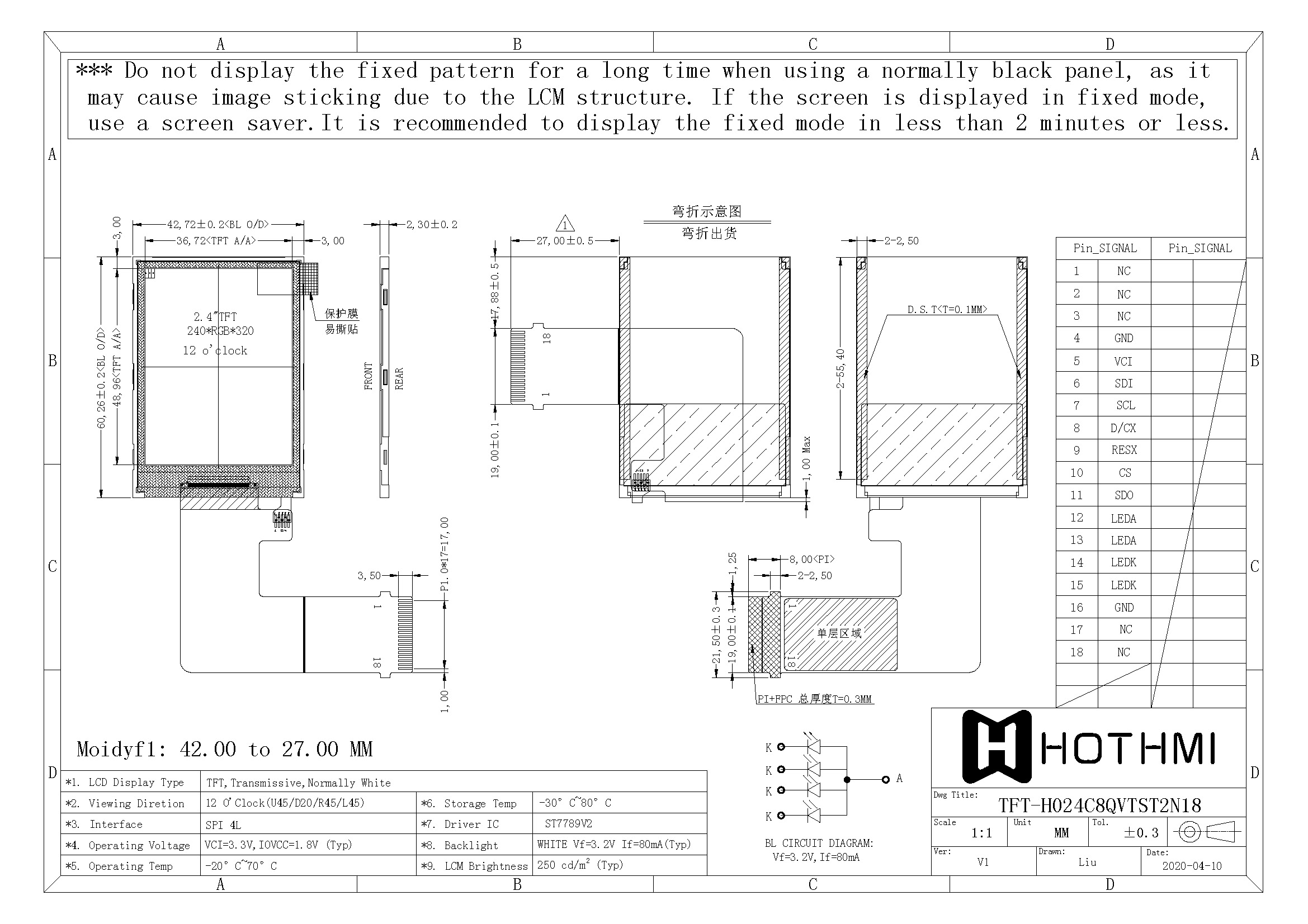

2.4 inch TFT/240*320 resolution/SPI interface/TFT-H024C8QVTST2N18TFT-H024C8QVTST2N18_V1.jpg
