類型：TFT橫屏

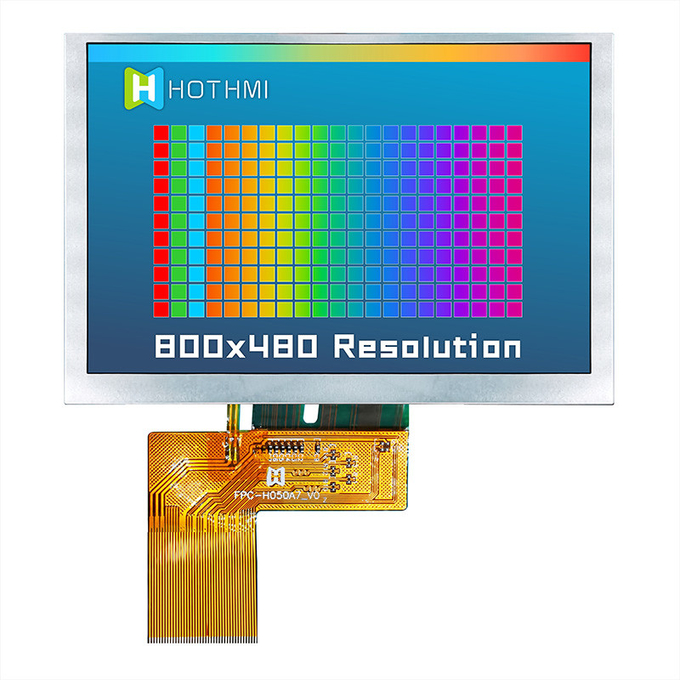

顯示像素：800x480
外形尺寸 ：120.70x75.80x2.90

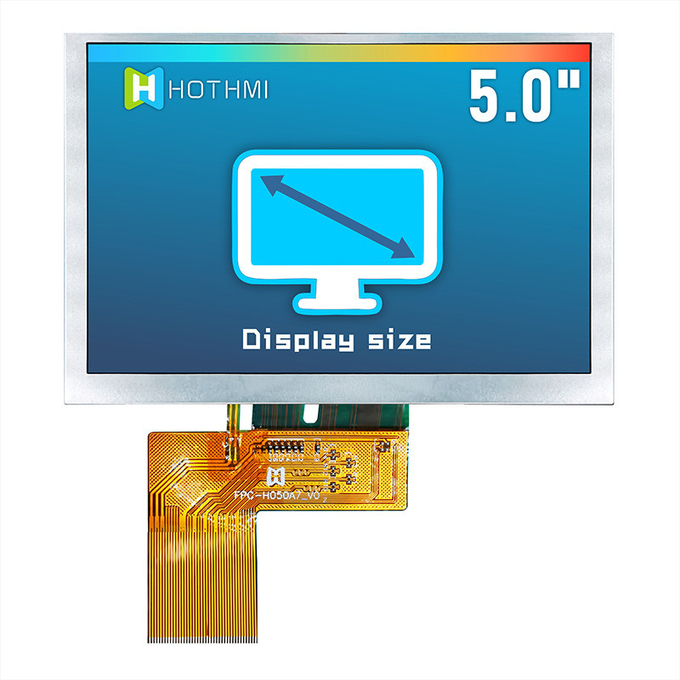

VA尺寸：5.0
AA尺寸 ：5.0
有效尺寸mm：108.00x64.80
應用：車載，醫療，工控

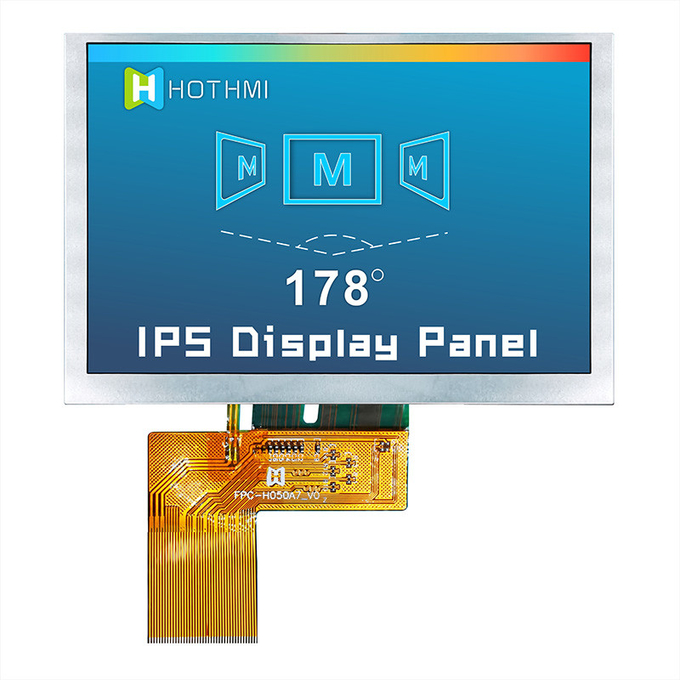

視角：全視角

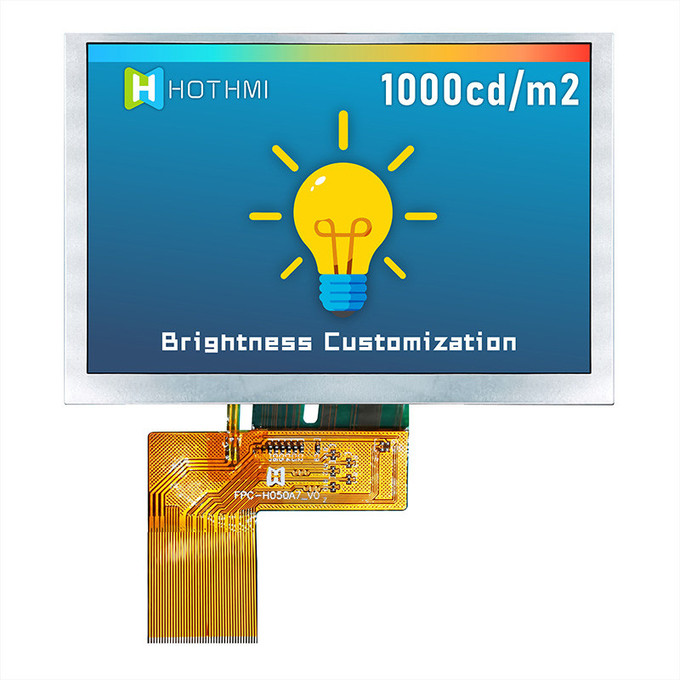

背光/亮度：1000cd/m2
引腳：40pin

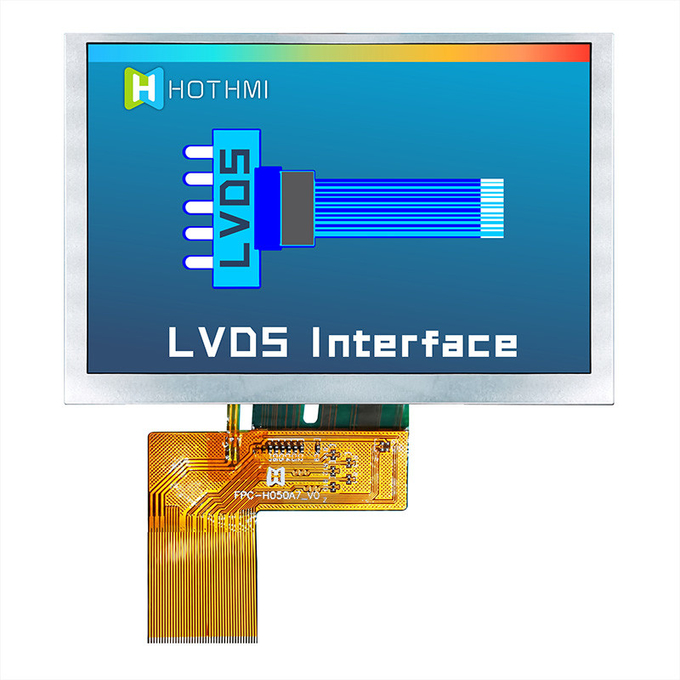

接口方式：LVDS

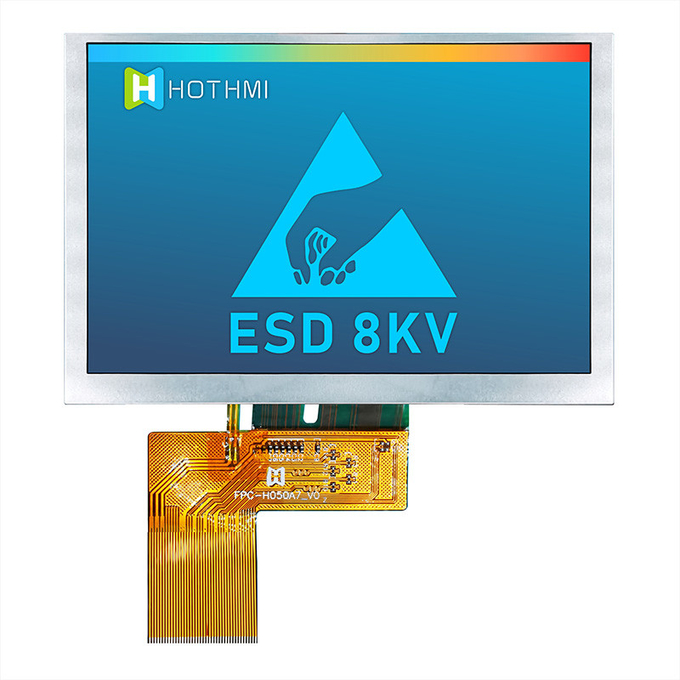

特殊說明：抗靜電ESD 8KV
工作溫度：-30~85℃
供電電壓：3.3V
驅動芯片：ST7262

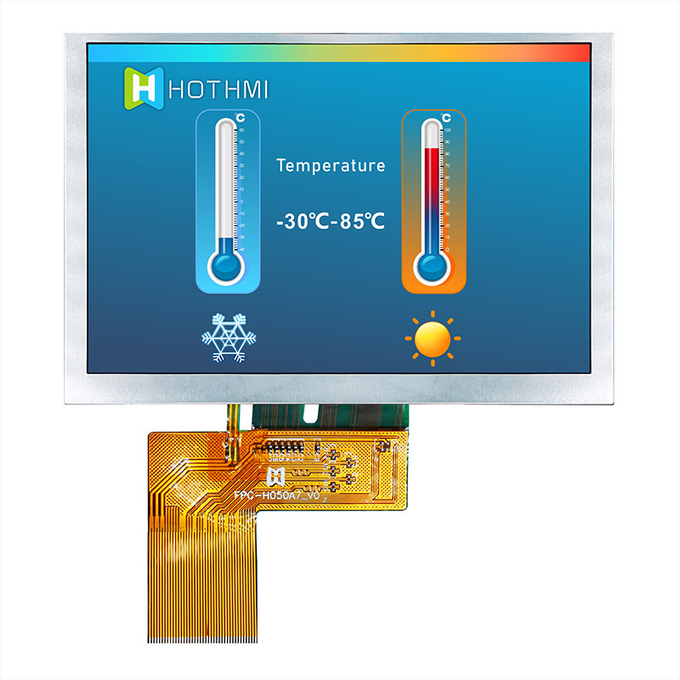

隆重推出 TFT-H050A7SVISTKN40，這是一款來自值得信賴的 TFT LCD 顯示器制造商的高品質 5.0 英寸 IPS LCD 顯示器。 該顯示器具有令人印象深刻的 800x480 分辨率，可提供清晰而生動的視覺效果，一定會增強任何項目。
但這款顯示器的與眾不同之處在于它能夠在 -30℃ 至 85℃ 的廣泛溫度范圍內使用。 無論您是在嚴寒還是酷熱的環境中工作，這款顯示器都將保持可靠和實用。
由于采用了陽光下可讀技術，即使在陽光直射下也能輕松查看該顯示屏，是戶外應用的完美選擇。
憑借其耐用的結構和一流的性能，TFT-H050A7SVISTKN40 是任何要求最好的項目的完美顯示解決方案。
General Feature
Item | Standard Value | Unit | ||
Display Size | 5.0 | Inch | ||
Number of Pixels | 800(H)*3(RGB)* 480(V) | dots | ||
Active Area | 108.00x64.80mm | mm | ||
Outline Dimension | 120.70x75.80x2.90 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | LVDS 3 Lane/4 Lane | - | ||
Driver IC | ST7262 | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -30 ～ +85 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 ~ 2 | LEDA | LED anode |
| 3 ~ 4 | LEDK | LED cathode |
| 5 ~ 6 | VCI | 3.3V power supply |
| 7 | NC | Not connected |
| 8 | MODE | Sets LVDS data format |
| 9 | LENS | Sets LVDS lane |
10 |
SHLR | Horizontal scanning direction control pin (L: from right to left ; H: from left to right) |
11 |
UPDN | Vertical scanning direction control pin (L: from down to up ; H: from up to down ) |
| 12 ~ 14 | GND | Power supply ground |
| 15 | DCKN | LVDS Negative clock signal (-) |
| 16 | DCKP | LVDS Positive clock signal (+) |
| 17 ~ 18 | GND | Power supply ground |
| 19 | D3N | LVDS Negative data signal (-) |
| 20 | D3P | LVDS Positive data signal (+) |
| 20 | D3P | LVDS Positive data signal (+) |
