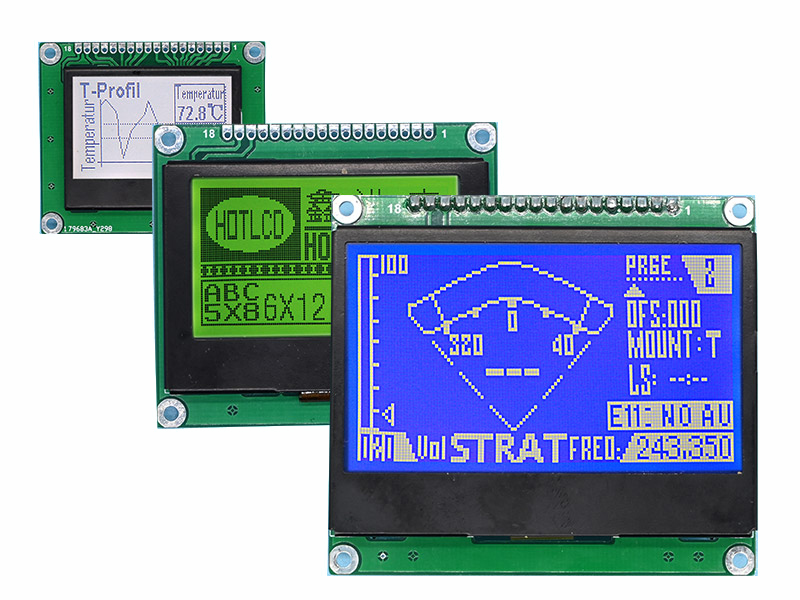

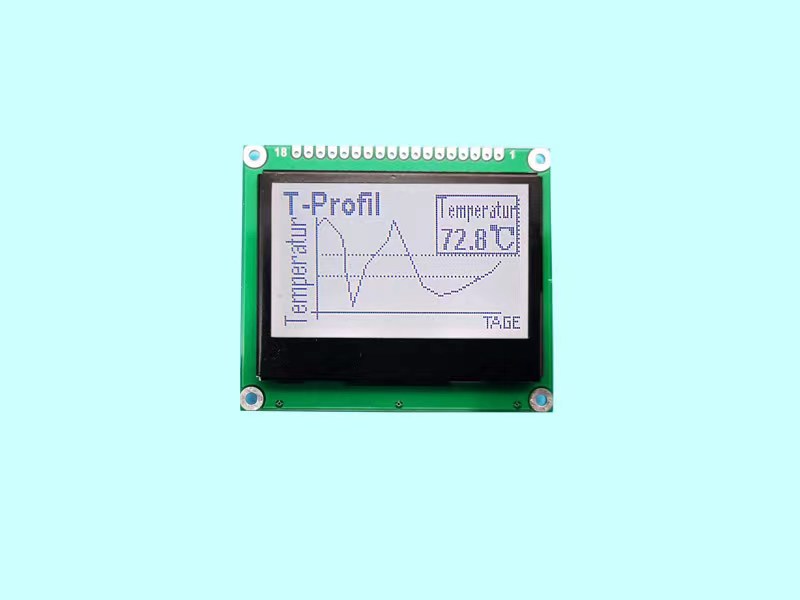

The COG liquid crystal module is a component that assembles a COG liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the COG liquid crystal module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |

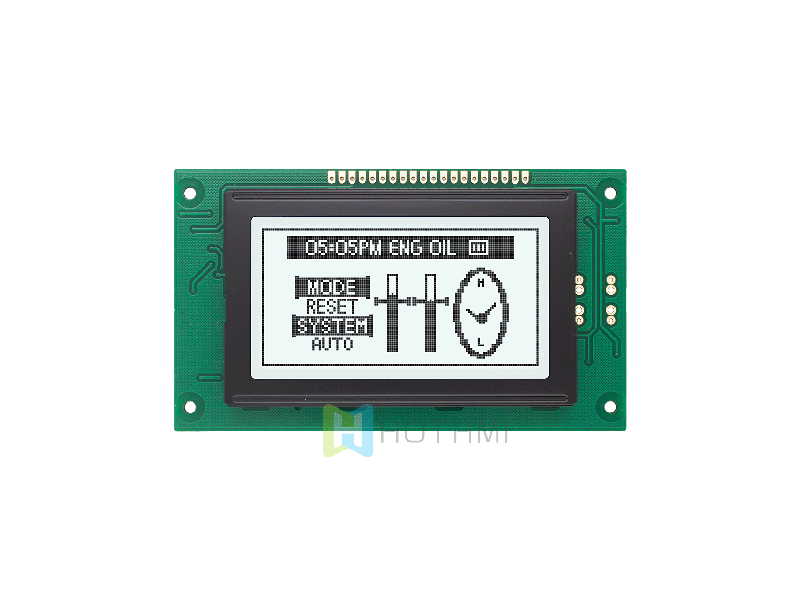

Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.2"128X64 monochrome graphic LCD module | with white backlight | FSTN(+) | MCU interface | Arduino HTM12864A-31W-A5P | Graphic LCD Module | 128x64 |
|
113.0x65.0x12.7 | 72.0x39.5 | 66.52x33.24 | 0.52x0.52 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | KS0108 | |

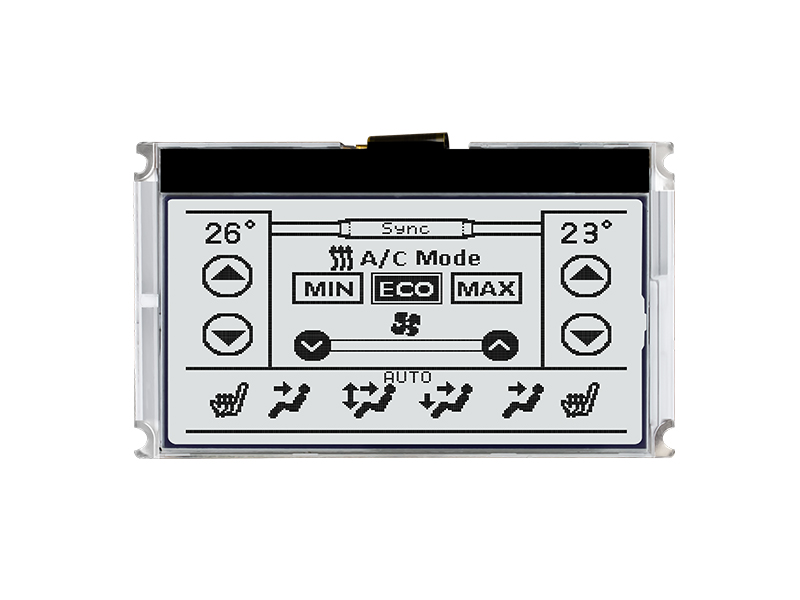

| 240X120 Graphic COG LCD MODULE FSTN+ Display With White Backlight HTM240120B | COB LCD Module | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | 16pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1608 | ||

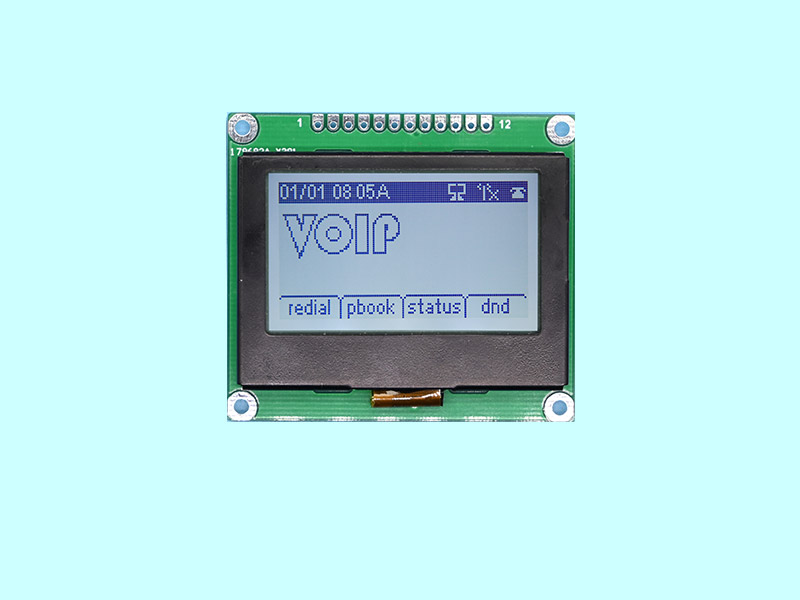

| 128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation | COB LCD Module | 128x64 |
|
58x51.2x6.2 | 54.6x39.2 | 128x64 | 0.38x0.32 | 6H | 12pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7567 | ||

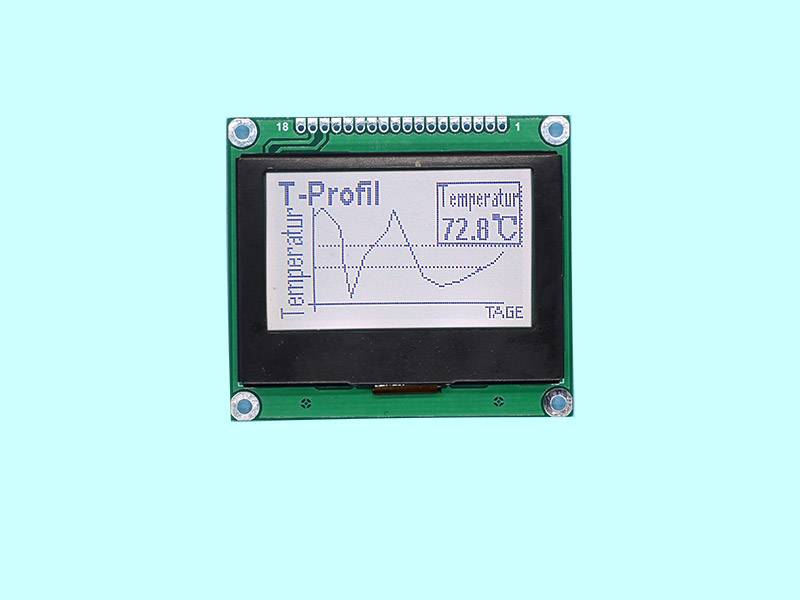

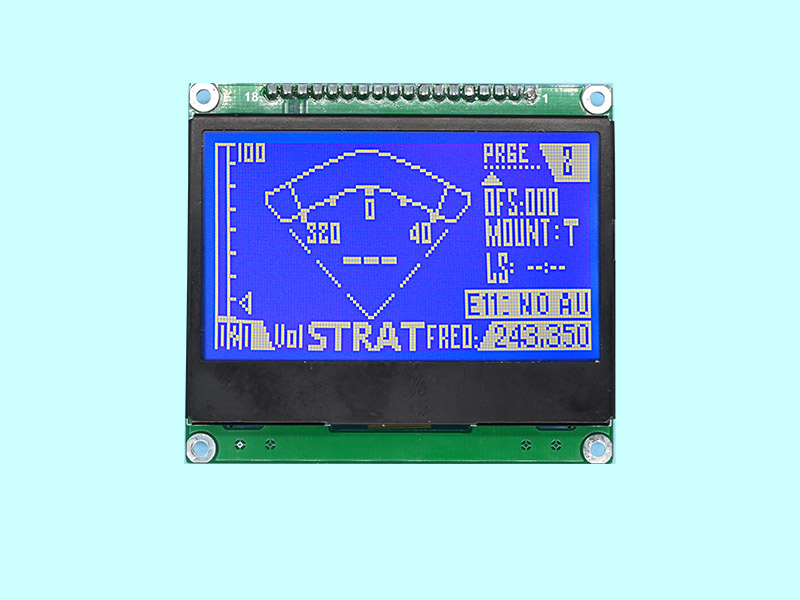

| HTM-COG12864N01A-MCU8080 | LCM | 128x64 |
|
78.0x54.0 | 62.3x33.5x7.6 | 55.01x27.49 | 6H | WHITE | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3v | ST7567 | ||

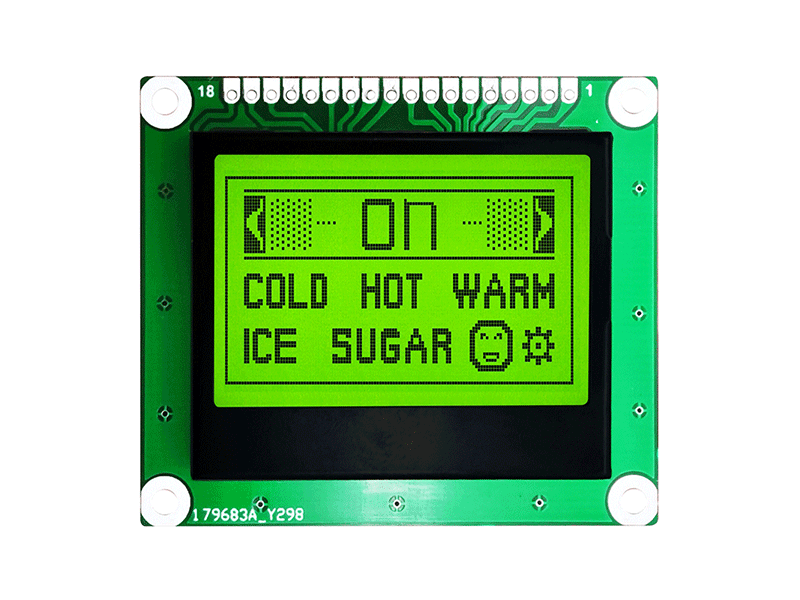

| HTM-COG12864T01A-MCU8080 | LCM | 128x64 |
|
58.0x51.2x6.2 | 45.2x27.0x6.2 | 40.92x24.28 | 6H | WHITE | 18PIN | MCU | Anti-static ESD 8KV | -30~80℃ | 3.3v | ST7567 | ||
| HTM-COG13264C01A-MCU8080 | LCM | 132x64 |
|
66.0x56.2 | 53.2x31.5 | 48.8x26.2 | 6H | WHITE | 18PIN | MCU | -20~80℃ | 3.3v | ST7567 | |||
| HTM-COG12864I01A-MCU8080 | LCM | 128x64 |
|
71.0x63.7x7.8 | 65.5x38.0 | 60.77x32.93 | 6H | WHITE | 18PIN | MCU | -20~70℃ | 3.3V | ST7567 | |||
| 128X64 Graphic COG LCD | FSTN + GRAY Display With White Side Backlight/HTM-COG12864C01A-MCU8080 | LCM | 128x64 |
|
52.0x44.2x6.4 | 36.0x23.5 | 33.25x20.45 | 6H | WHITE | 18PIN | MCU | -20~70℃ | 3.3v | ST7567 | |||

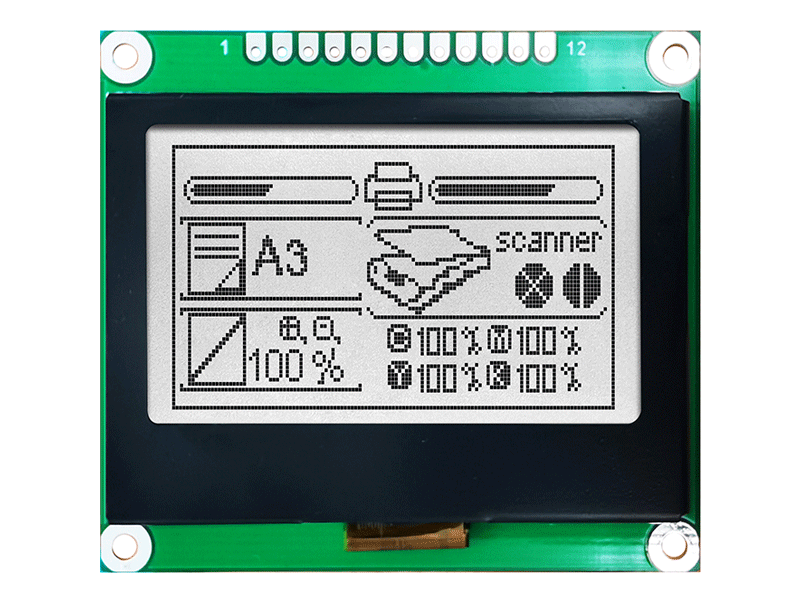

| HTM-COG12864N01A-SPI | LCM | 128x64 |
|
78.0x54.0x7.6 | 62.3x33.5 | 55.01x27.49 | 6H | WHITE | 12PIN | SPI | -20~70℃ | 3.3V | ST7567 | |||
| HTM-COG12864T01A-SPI | LCM | 128x64 |
|
58.0x51.2 | 45.2x27.0 | 40.92x24.28 | 6H | WHITE | 12PIN | SPI | -20~70℃ | 3.3V | ST7567 |
