Product type：TFT Module
Show contents：320x480
Outline size(mm) ：60.88x94.57x 2.50
Size of View Window(mm)：4.0
Display size(mm) ：4.0
Effective size(mm)：55.68x83.52
Product application：Industrial Control Equipment
Visual angle：6H
Backlight type or brightness：330cd/m2
Connection PIN Number：15PIN
Interface mode：SPI
Special instructions：With capacitive touch function
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：ST7365

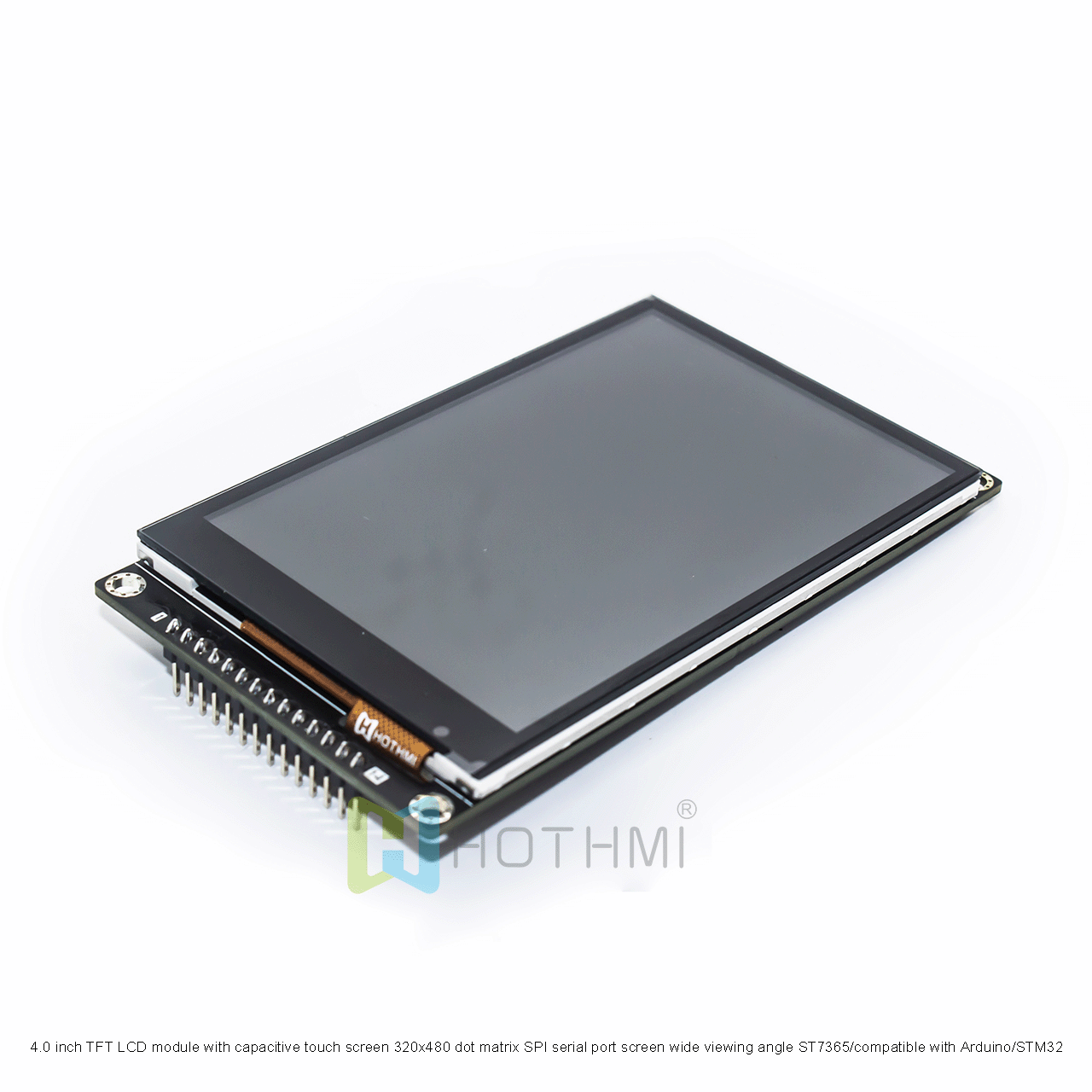

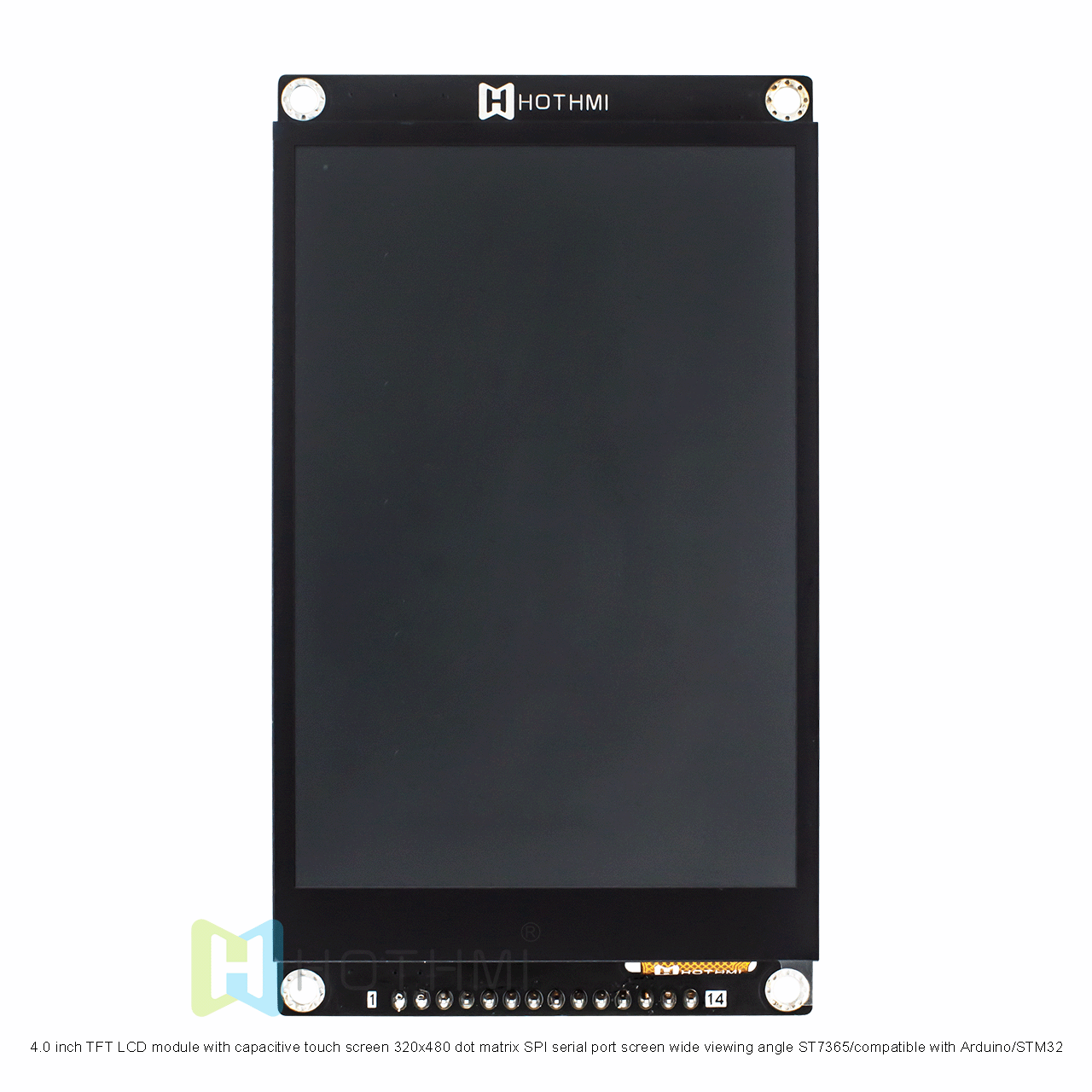

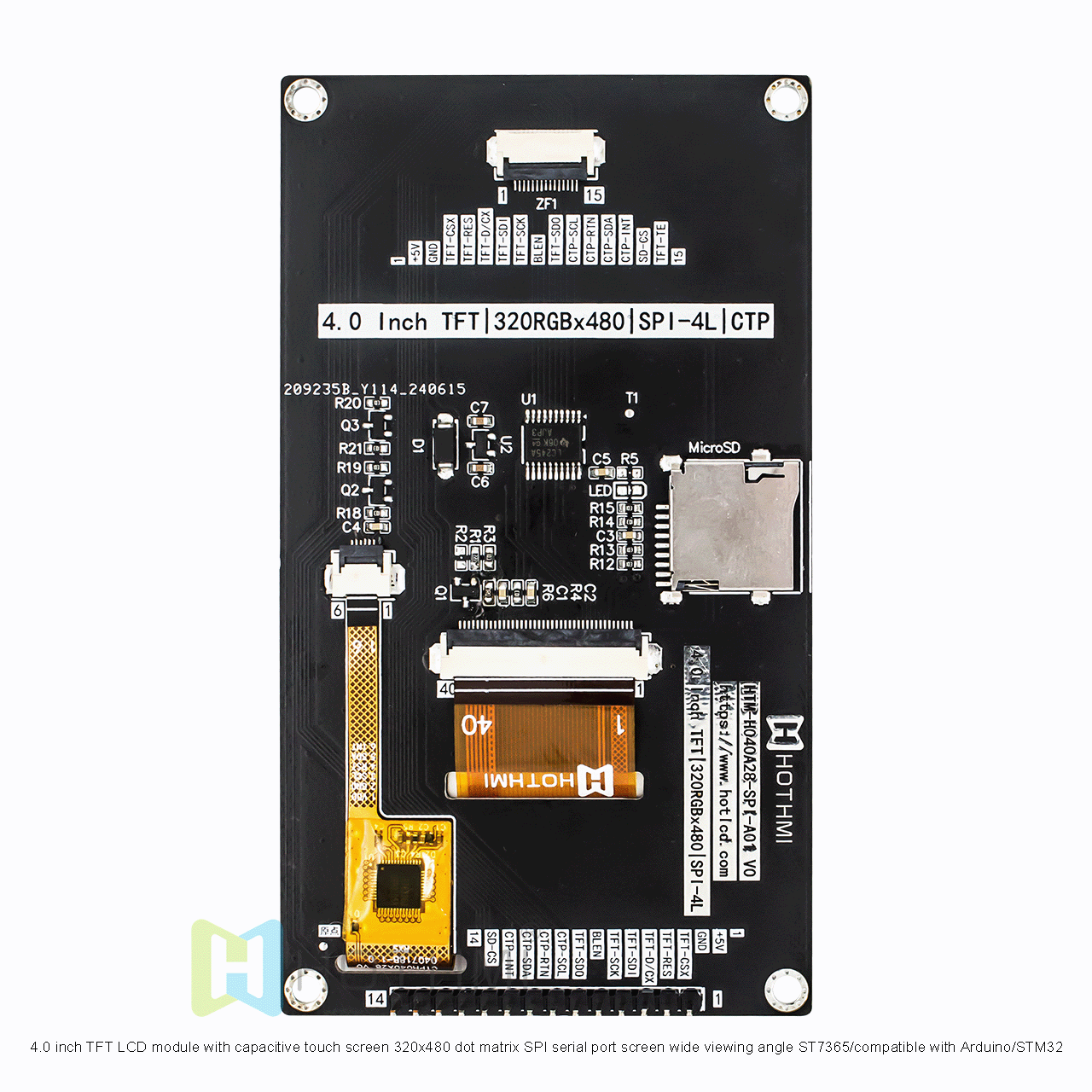

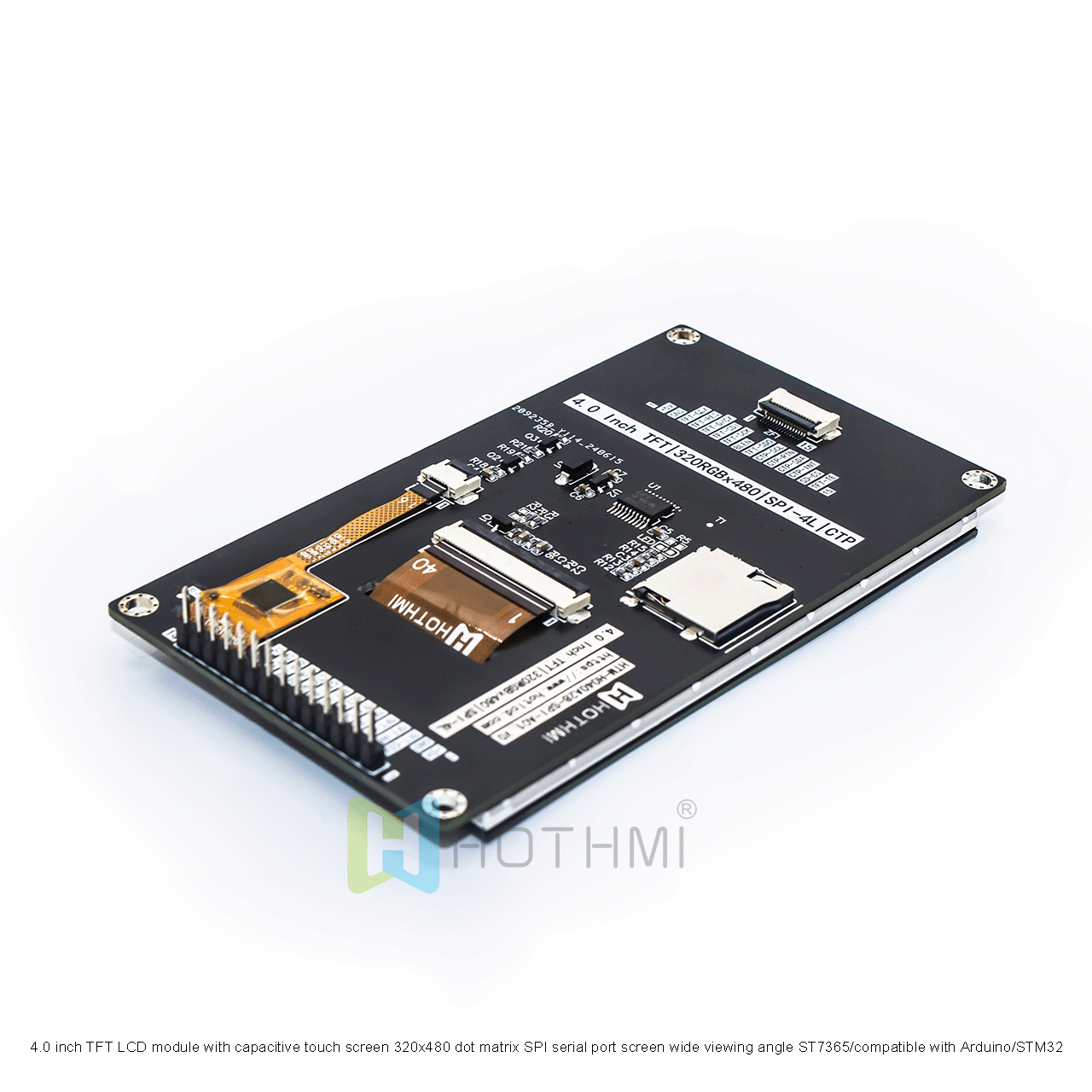

HTM-H040A28-SPI-A01C is a 4.0-inch IPS LCD module with plate - capacitive touch display with a resolution of 320X480 pixels. It uses ST7365 display driver IC, plug-in PIN pins, and is also compatible with FPC cables and can be used with matching connectors. The wide viewing angle used in this display ( U70/D60/L70/R70) technology provides full viewing angle and excellent color performance, allowing you to easily watch from all angles without distortion. The display has a high contrast ratio of 500:1, capable of displaying deep blacks and vivid colors. With a brightness of up to 330cd/m2, it can be read under sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with RoHS environmental protection standards. The module is widely used in various instruments, industrial computers, smart devices, etc. It is suitable for a variety of microcontroller development platforms such as C8051/Arduino/STM32.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
