Product type：OLED
Show contents：64x48

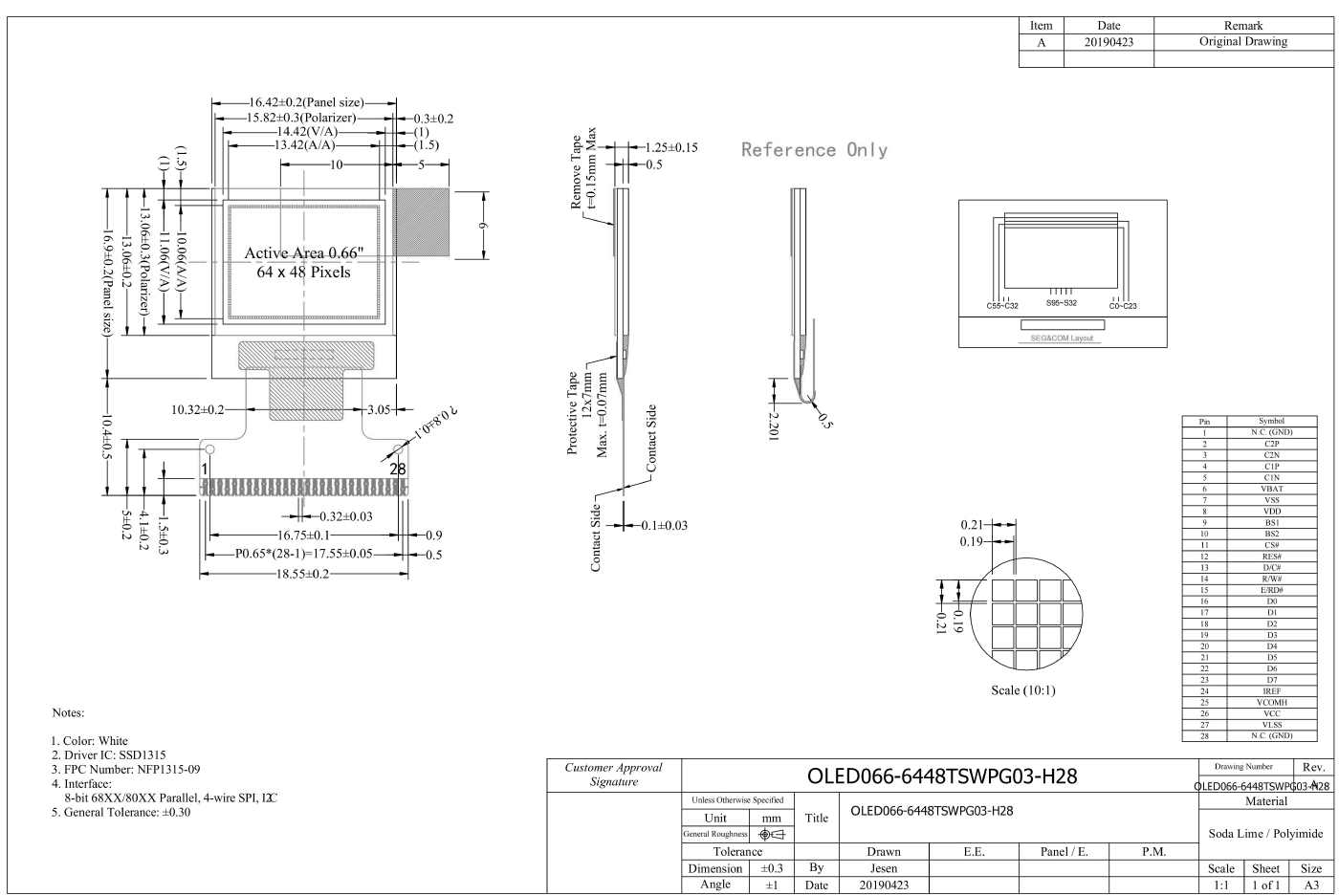

Outline size(mm) ：16.42x16.9x1.25
Size of View Window(mm)：0.66
Display size(mm) ：0.66
Effective size(mm)：13.42x10.06
Product application：Instrumentation
Backlight type or brightness：190cd/m2
Connection PIN Number：28PIN
Interface mode：8-bit 8080 Parallel, 4-wire SPI, I2C
Special instructions：EMI shielding
Working temperature：-40~85℃
Power supply voltage：3.3V
Driver chip model：SSD1315
This 0.66-inch white monochrome graphic OLED display features a built-in SSD1315 controller and requires a power supply of 3.3 V. It offers great viewing angles and crisp, vibrant graphics. The display module can be interfaced using either serial or parallel communication. It operates in a wide temperature range of -40 to 85 degrees Celsius, making it ideal for use in a variety of environments, including harsh ones. The display is compatible with Arduino and other popular development boards. It also comes with a touchscreen and EMI-shielded FPC.
