Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules | HI | VGA | LVDS | MIPI | WIth Board  >  4.3寸IPS全視角 800x480px TFT LCD彩色液晶顯示屏 可選配觸摸屏/LCM-TFT043T3

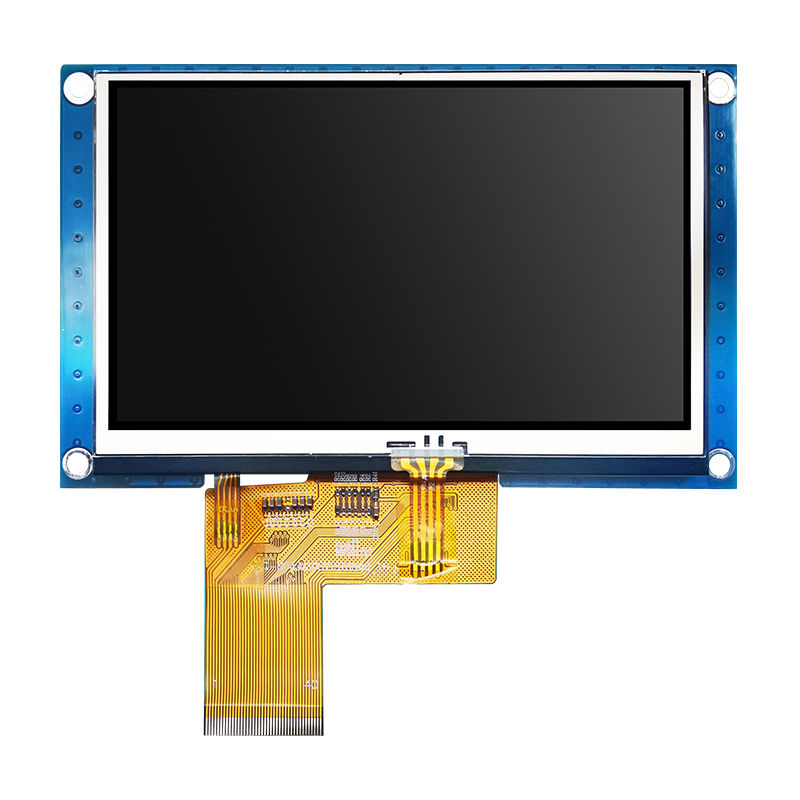

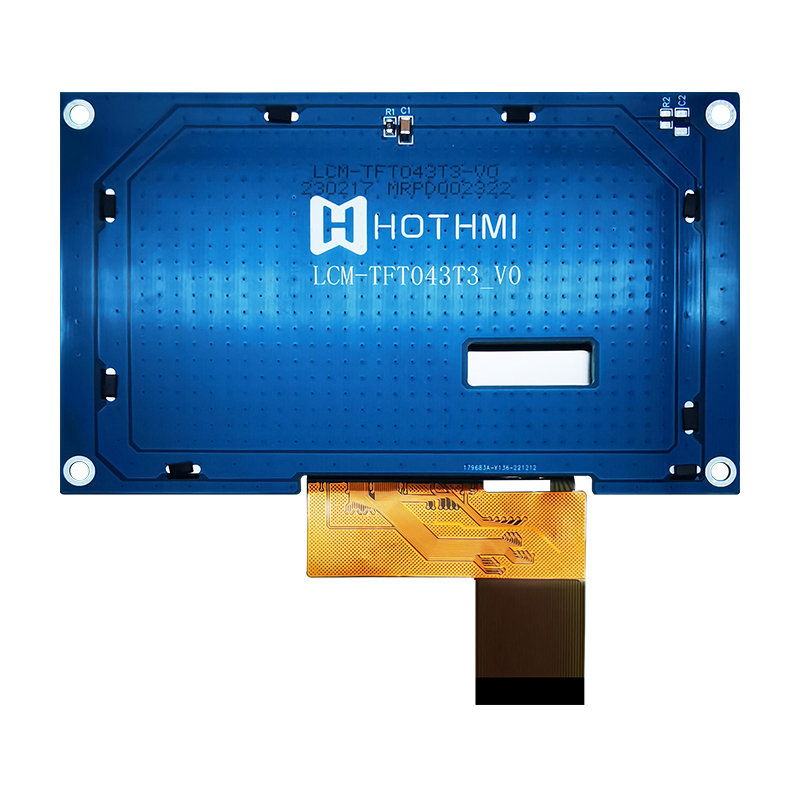

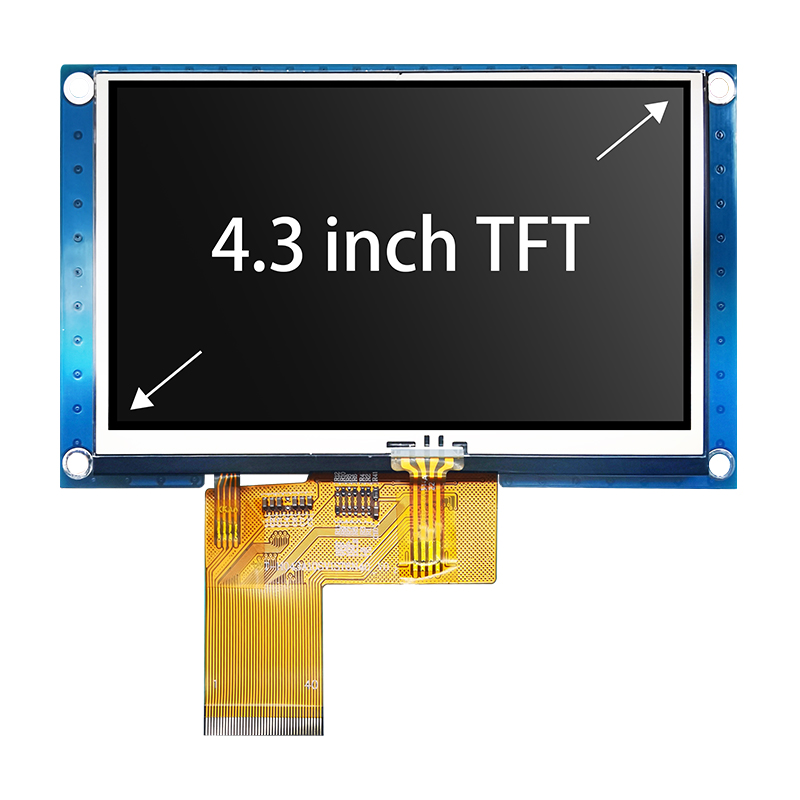

  • Model : 4.3-inch IPS full viewing angle 800x480px TFT LCD color LCD display optional touch screen/LCM-TFT043T3

    Product type:TFT Module

    Show contents:800x480

    Outline size(mm) :121.9x74.7x6.35

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.86

    Product application:Vehicle, medical, industrial control

    Backlight type or brightness:400cd/m2

    Connection PIN Number:40pin

    Interface mode:TTL

    Special instructions:Anti-static ESD 8KV

    Power supply voltage:3.3V

    Driver chip model:ST7262

Product description

LCM-TFT043T3 | 4.3" LCD TFT Module | 800x480 Pixels | TTL Interface | 40-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen

LCM-TFT043T3 Is A 4.3-Inch IPS Full-Viewing And High-Brightness Color LCD Module, 800x480 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen (Built-In Controller GT911), Ultra-Wide Temperature, High Image Quality, Wide Viewing Angle , Supports TTL Interface, 65K/262K/16.7M True Color, FFC Or Pin Header Connection, 3.3V Or 5V Optional Voltage, Supports Horizontal Or Vertical Screen Display. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Various Instruments, Smart Devices, Etc., And Is Suitable For A Variety Of Microcontroller Development Platforms Such As 8051, PIC, AVR, ARDUINO, ARM And Raspberry Pi.
