Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  7寸TFT LCD IPS顯示RGB 280x1424 分辨率 陽光下可讀 彩屏模組 咖啡機專用 TFT-H070A18ZBINV7N40

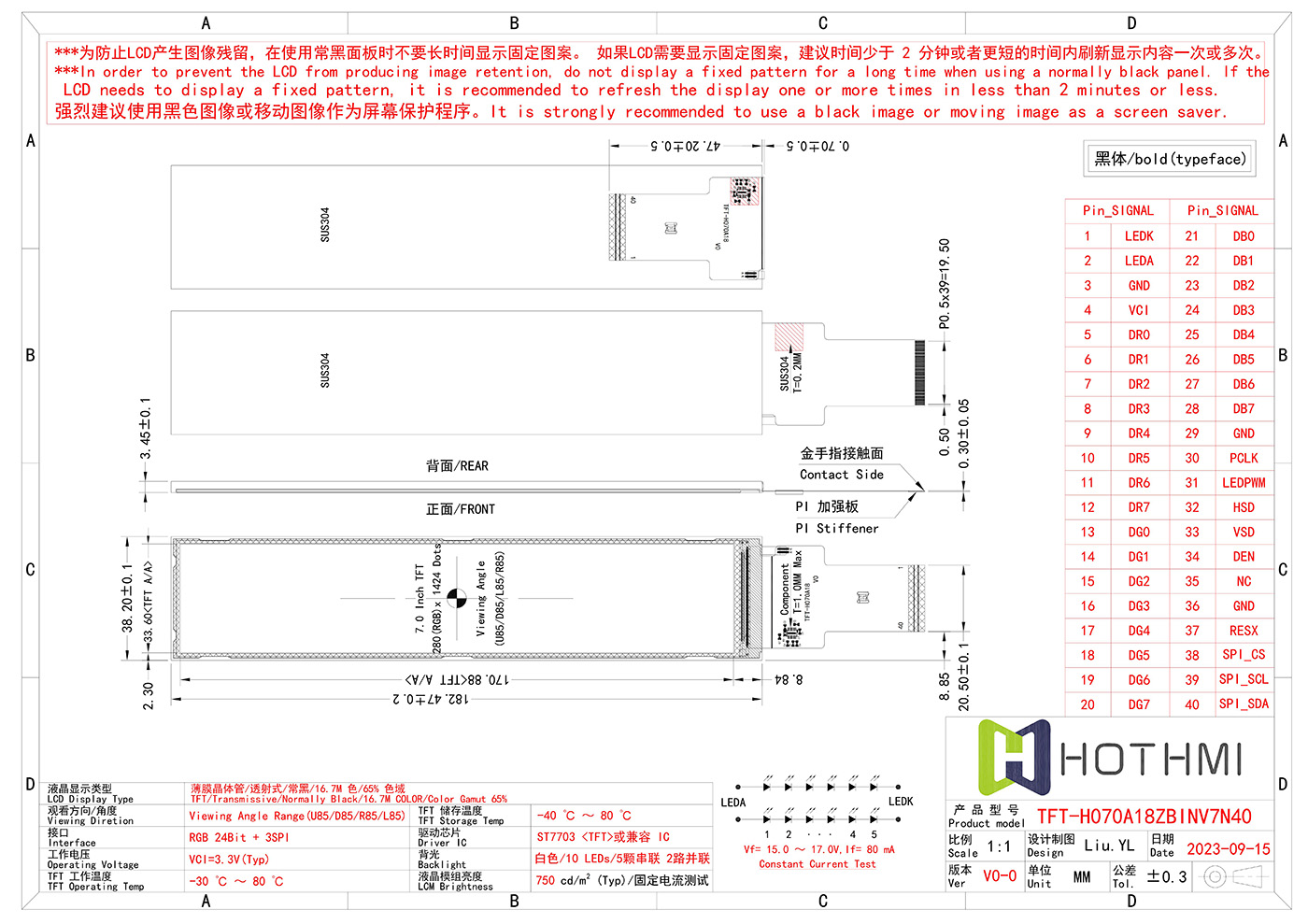

  • Model : 7 inch TFT LCD IPS display module RGB/280x1424 dot matrix color screen module Sunlight readable For coffee machines TFT-H070A18ZBINV7N40

    Product type:TFT strip

    Show contents:280x1424

    Outline size(mm) :182.47x38.2x3.45

    Size of View Window(mm):7.0

    Display size(mm) :7.0

    Effective size(mm):170.88x33.6

    Product application:Home appliances, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:750cd/m2

    Connection PIN Number:40pin

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7703

    PDF download
Product description

TFT-H070A18ZBINV7N40 | 7" IPS LCD | High resolution 280x1424 px screen | RGB connector | 40-pin FFC connection | Optional touch screen

This 7-inch IPS TFT display is packed with advanced technology and features. Using IPS technology, it provides full viewing angles, superior color reproduction and better image consistency. High resolution with 280x1424 pixels and LED backlight with brightness up to 750 cd/m2 ensure clear visibility. The ultra-bright backlight and 3M enhancement film make it readable in bright conditions, including direct sunlight. In addition, a capacitive touch screen or a resistive touch screen is optional to provide touch interaction functions.

The display is equipped with a 24-bit RGB interface for easy integration and compatibility with various Arduino models. Uses 40-pin flexible flat cable (FFC) connection for easy electrical connection. Powered by the built-in ST7703 driver IC, this driver optimizes the display functionality, ensuring smooth operation and accurate image rendering. Products are RoHS compliant while adhering to strict environmental and safety standards, reflecting the emphasis on quality and reliability.

Overall, this display is suitable for a variety of applications that require high resolution, high brightness, and touch capabilities.
