Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  3.0寸TFT|分辨率360*480| MIPI接口|全視角IPS|TFT-H030A5NHIST4N20

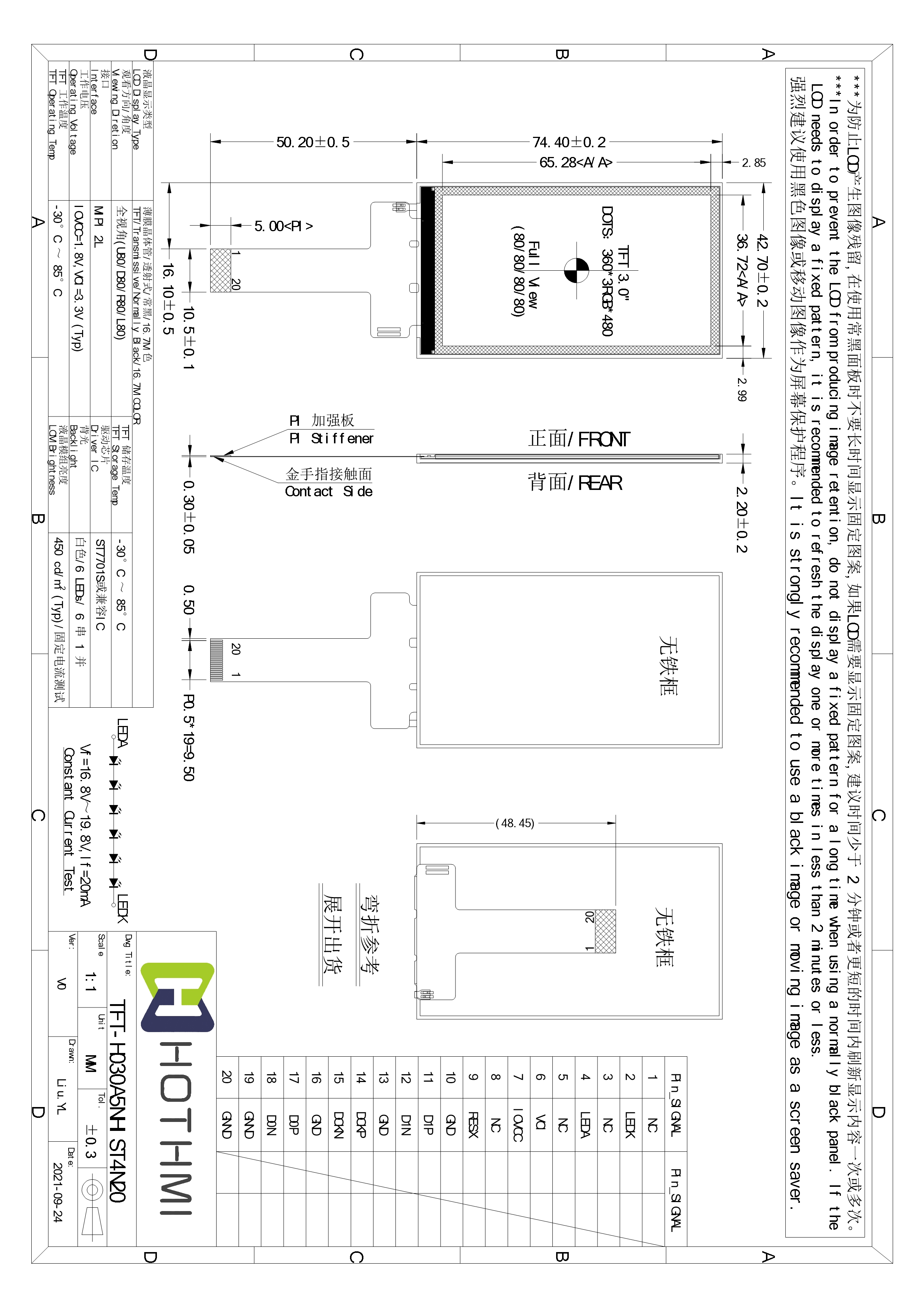

  • Model : 3.0 inch TFT | 360 * 480 resolution | MIPI interface| IPS | TFT- H030A5NHIST4N20

    Product type:TFT LCD

    Show contents:360x480

    Outline size(mm) :42.7x74.4x2.2

    Size of View Window(mm):3.0

    Display size(mm) :3.0

    Effective size(mm):36.72x65.28

    Product application:Smart devices

    Visual angle:Full View

    Backlight type or brightness:450cd/m2

    Connection PIN Number:20pin

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7701S

Product description
