Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  4.3寸顯示屏 TFT豎屏MIPI接口 480800分辨率 IPS全視角工控4.3TFT-H043A8WVIST3C30

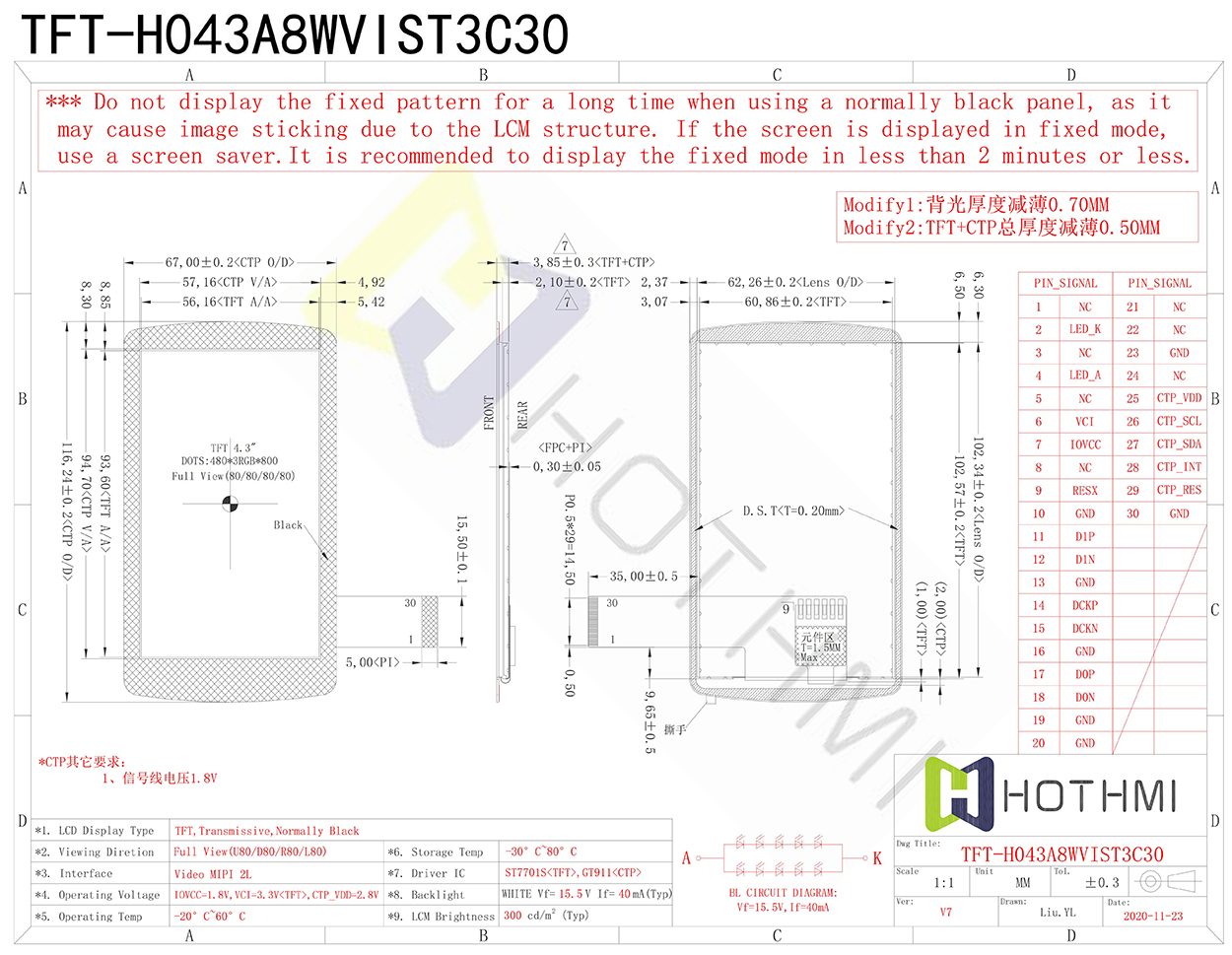

  • Model : 4.3 inch TFT LCD 480*800 resolution Full view/MIPI Interface Construction copy 4.3TFT-H043A8WVIST3C30

    Product type:TFT LCD

    Show contents:480x800

    Outline size(mm) :67.00x116.24x3.85

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):56.16x93.60

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:300cd/m2

    Connection PIN Number:FPC-30PIN

    Interface mode:MIPI

    Special instructions:CTP

    Working temperature:-20~60℃

    Power supply voltage:3.3V

    Driver chip model:ST7701S<TFT>,GT911<CTP>

Product description

Product  Description TFT-H043A8WVIST3C30 is a 4.3-inch full-color TFT LCD module  with a resolution of 480x800 pixels and an aspect ratio of 2:5. The TFT  module adopts ST7701S driver IC and supports MIPI interface. The TFT  module with IPS panel has the advantage of wide viewing angle (left 80  degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical  contrast ratio is 800:1, and the module brightness is up to 300 nits  (typical value). The operating temperature range of the module is  -20℃~+60℃, and the storage temperature range is -30℃~+80℃.

Model : 4.3 inch TFT /480*800 resolution/Full view/MIPI Interface/Construction copy/TFT-H043A8WVIST3C30
