Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  10.1寸TFT豎屏|800*1280寬視角IPS|LVDS|TFT101R1120H01
  • Model : 10.1 inch TFT vertical screen|800*1280 wide viewing angle IPS|LVDS|TFT101R1120H01

    Product type:TFT LCD

    Show contents:800x1280

    Outline size(mm) :143.0x228.55x2.5

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):135.36x216.58

    Product application:Digital, tablet

    Visual angle:FULL

    Backlight type or brightness:300cd/m2

    Connection PIN Number:20pin

    Interface mode:LVDS

    Special instructions:Can be CTP

    Working temperature:-10-60℃

    Power supply voltage:3.3V

    PDF download
Product description

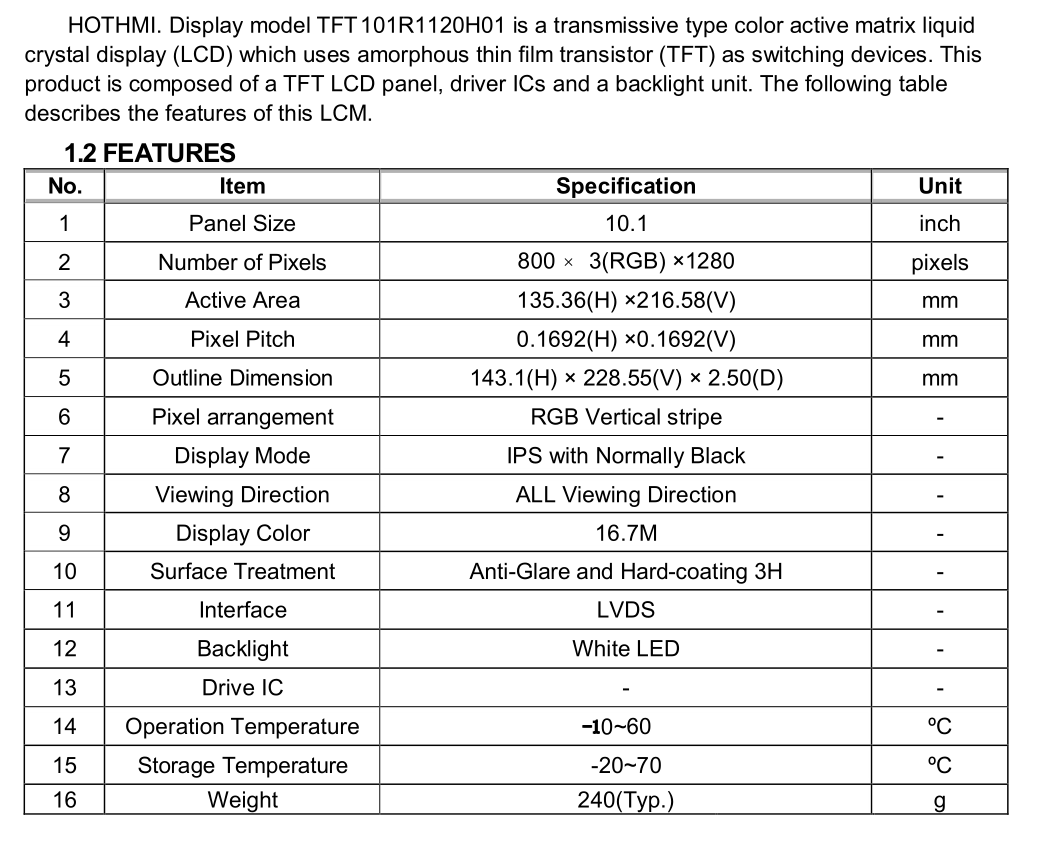

10.1 inch TFT vertical screen|800*1280 wide viewing angle IPS|LVDS|TFT101R1120H0110.1豎屏LVDS.png
