Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.8寸TFT/240x320分辨率/SPI串口/TFT-HTT2806N03-14P
  • Model : 2.8"/240x320Resolution/SPI/TFT-HTT2806N03-14P

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :50.0x69.2x3.6

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.2x57.8

    Visual angle:12H

    Backlight type or brightness:260cd/m2

    Connection PIN Number:FPC-14PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8v

    Driver chip model:ILI9341

Product description

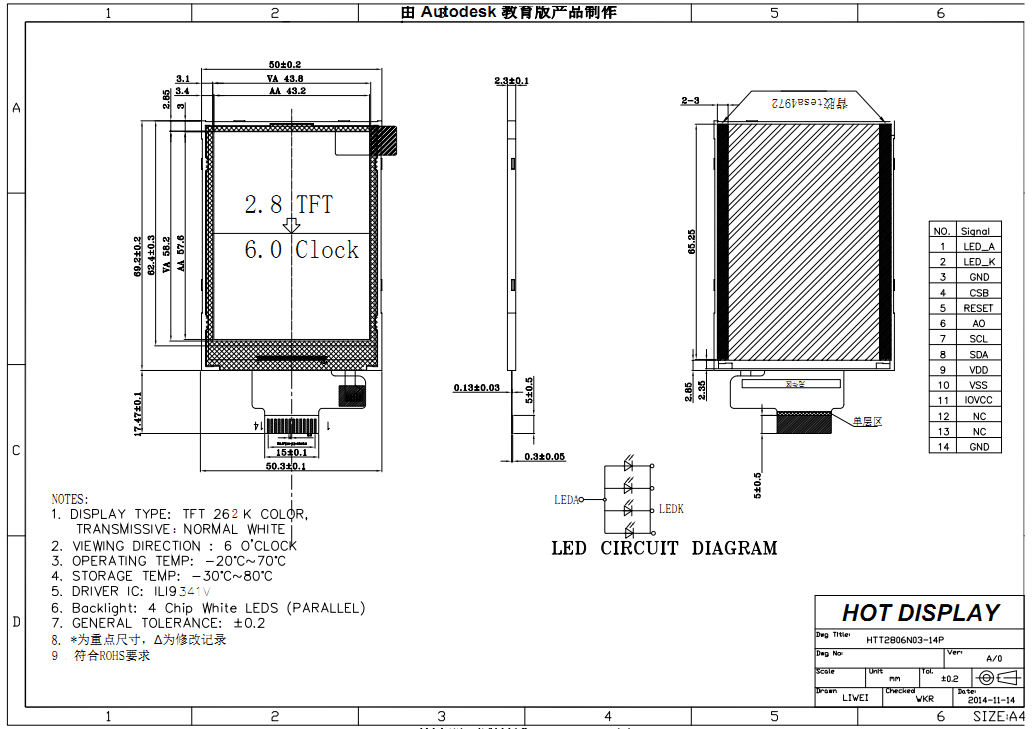

2.8 inch TFT/240x320 resolution/SPI serial port/TFT-HTT2806N03-14Pimage.png
