Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.8寸TFT彩屏|240x320寬視角高亮|MCU8/16位/SPI接口|TFT-H028A1QVIST6N40
  • Model : 2.8''TFT240X320 Full View High brightness TFT-H028A1QVIST6N40

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :49.6x69.0x2.4

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.20x57.60

    Product application:Industrial instrumentation

    Visual angle:Full View

    Backlight type or brightness:600cd/m2

    Connection PIN Number:40pin

    Interface mode:MCU

    Special instructions:MCU8/16&SPI 3L/4l

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7789V

Product description

Product Description TFT-H028A1QVIST6N40 is a 2.8-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 2:3. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 600 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

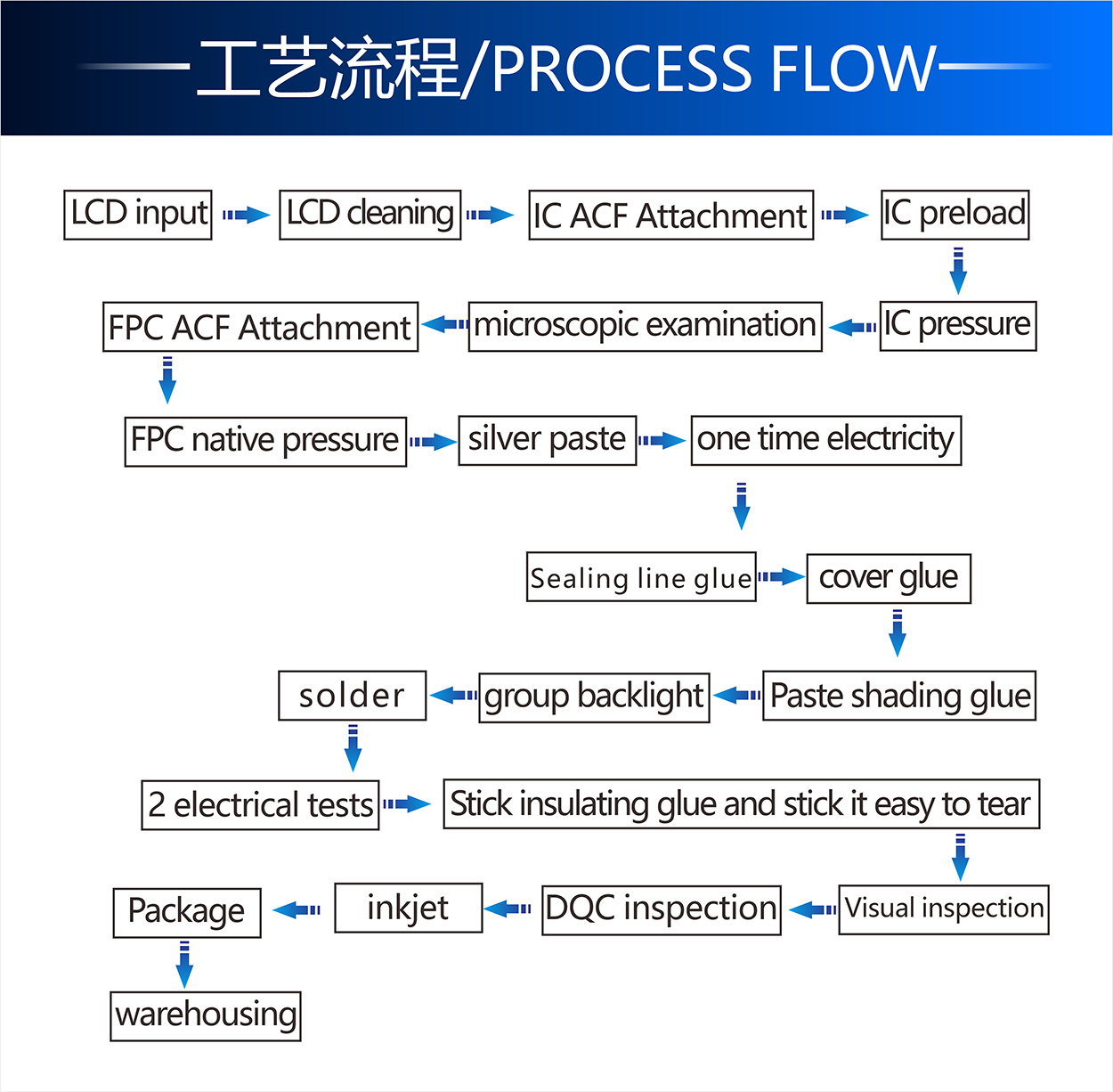

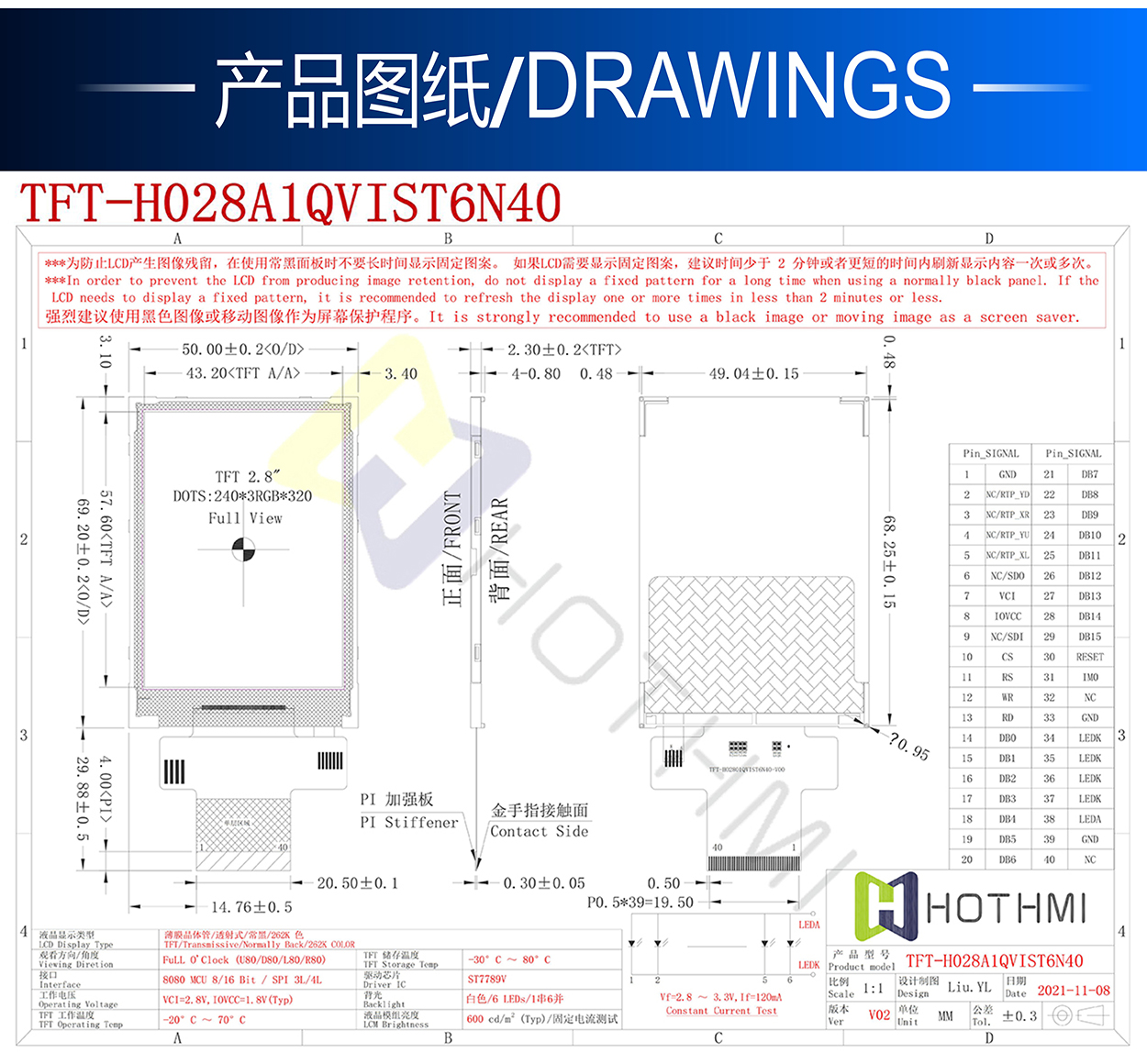

2.8 inch TFT, 240x320 resolution, TFT LCD screen, COG LCD screen, Shenzhen LCM, Shenzhen LCD, LCM, LCD, LCD module, LCD screen, LCD screen, LCD module, LCD module, backlight, LCD production Manufacturer, Xinhongtai, HOTLCD, COG, MONO TFT, LCD module2.8寸TFT-H028A1QVIST6N40詳情3.jpg工藝流程英文.jpg
