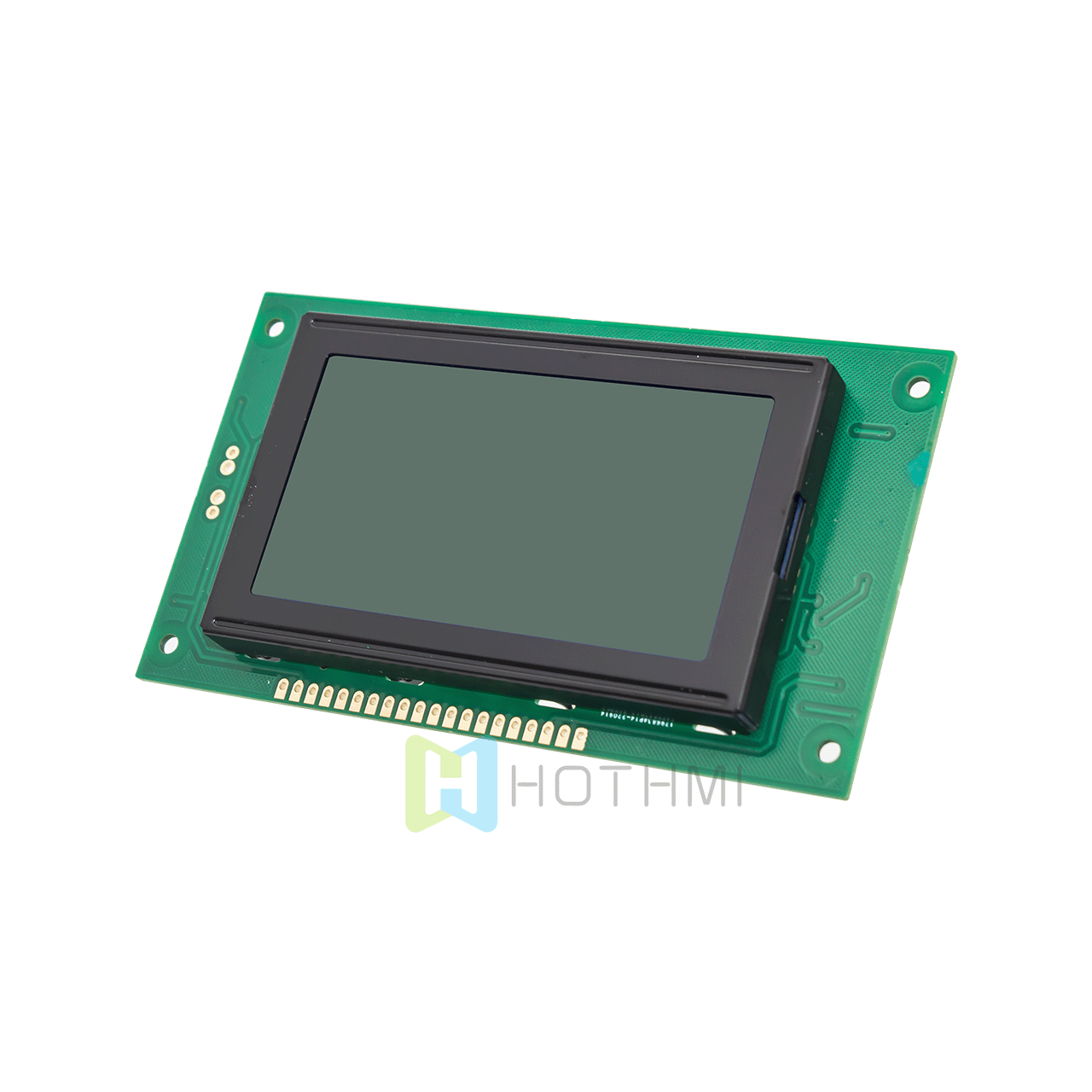

Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：113.0x65.0x12.7
Size of View Window(mm)：72.0x39.5
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108

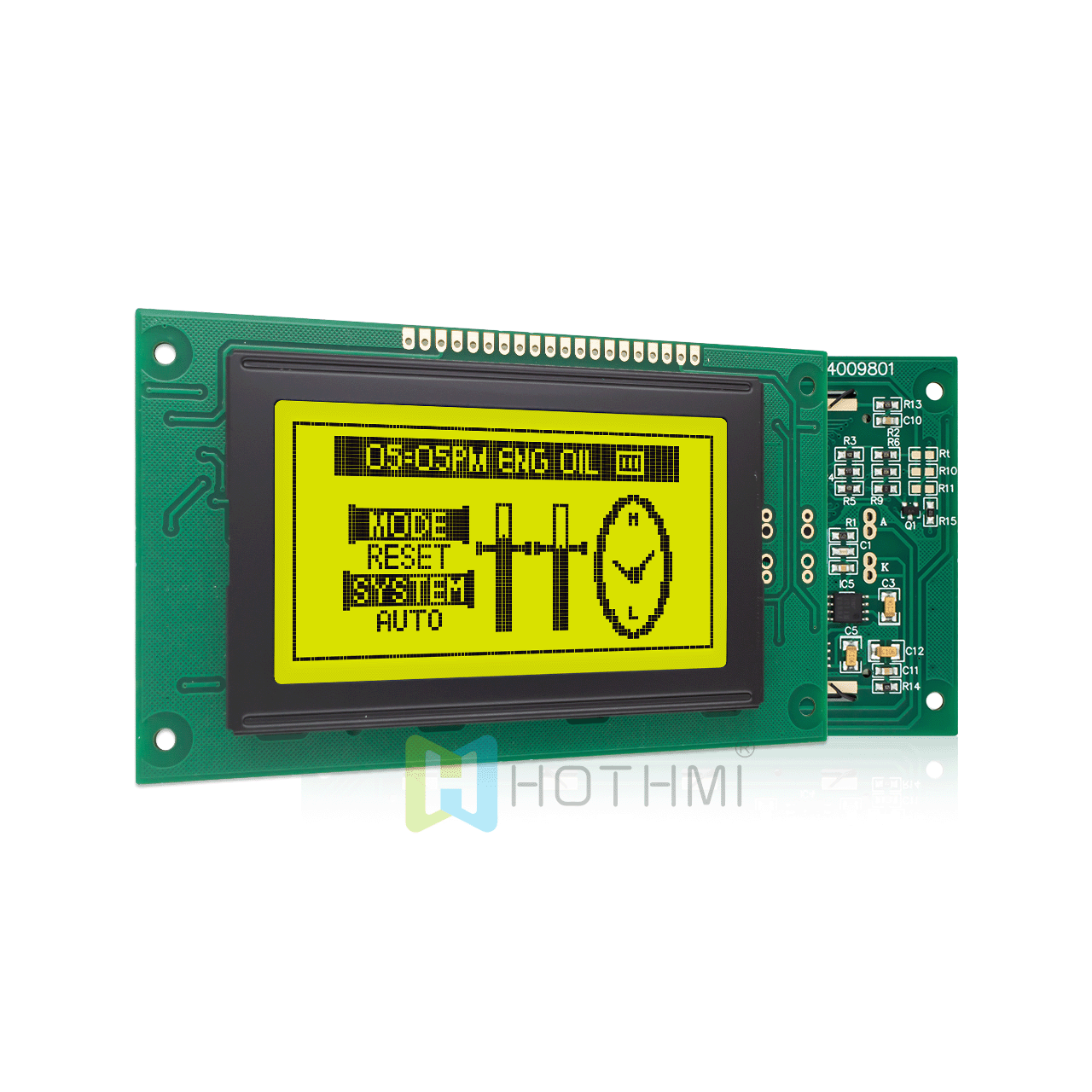

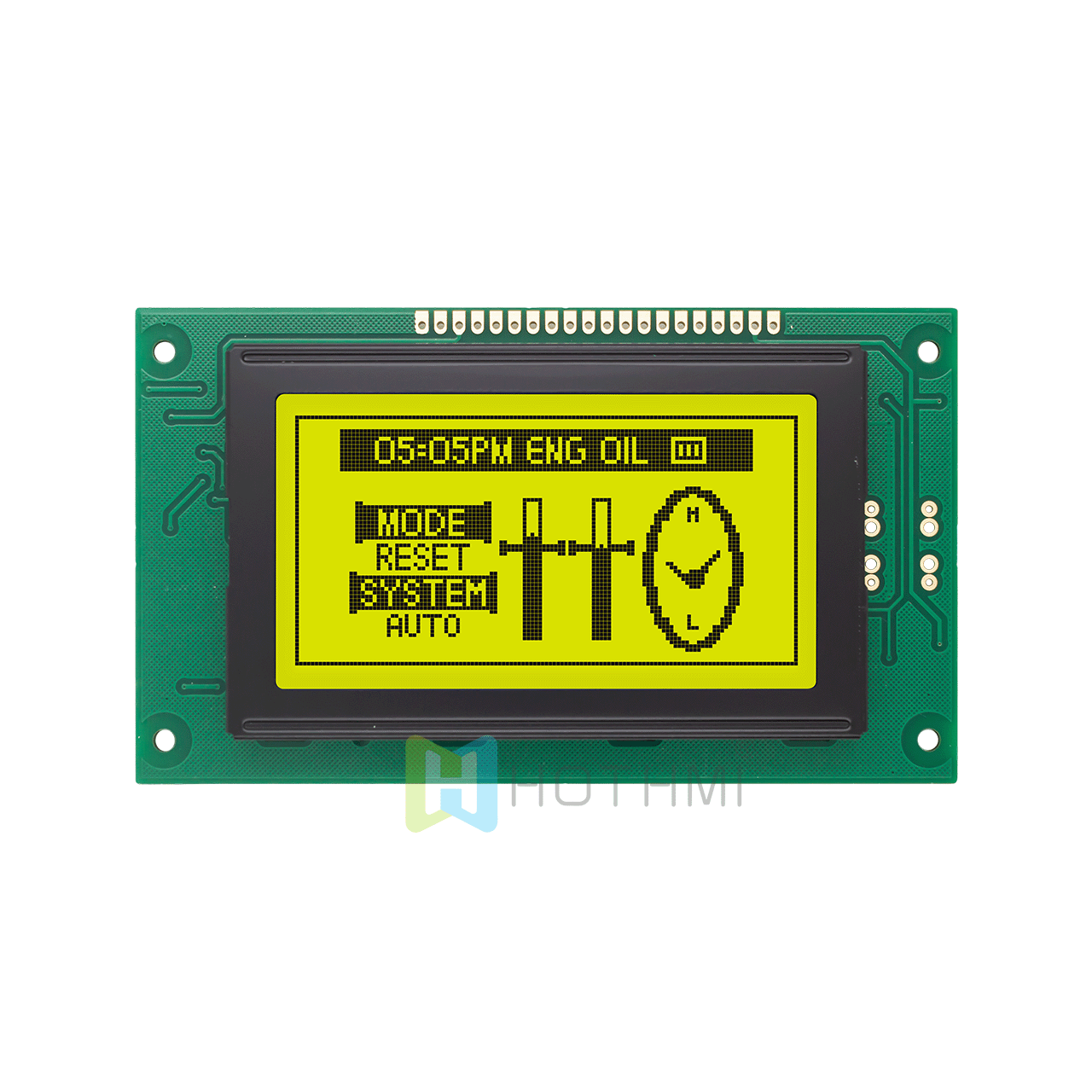

This 128x64 LCD display graphics module displays deep black pixels on a vivid yellow/green background. This transflective LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the screen uses its reflective coating to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a powerful backlight design that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the screen is always easy to read regardless of the lighting conditions.
This LCD graphic display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a wide range of applications. Model HTM12864A - 11Y - A5P is designed to withstand harsh operating conditions and operates properly when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00.
