Product type：TFT Display
Show contents：240x320
Outline size(mm) ：42.72.0x60.26x2.3
Size of View Window(mm)：2.4"
Display size(mm) ：2.4"
Effective size(mm)：36.72x48.96
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：400cd/m2
Connection PIN Number：FPC-40 pin
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7789<TFT>
2.4-inch 240x320 dot matrix TFT LCD display / 2.4” full-color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 controller

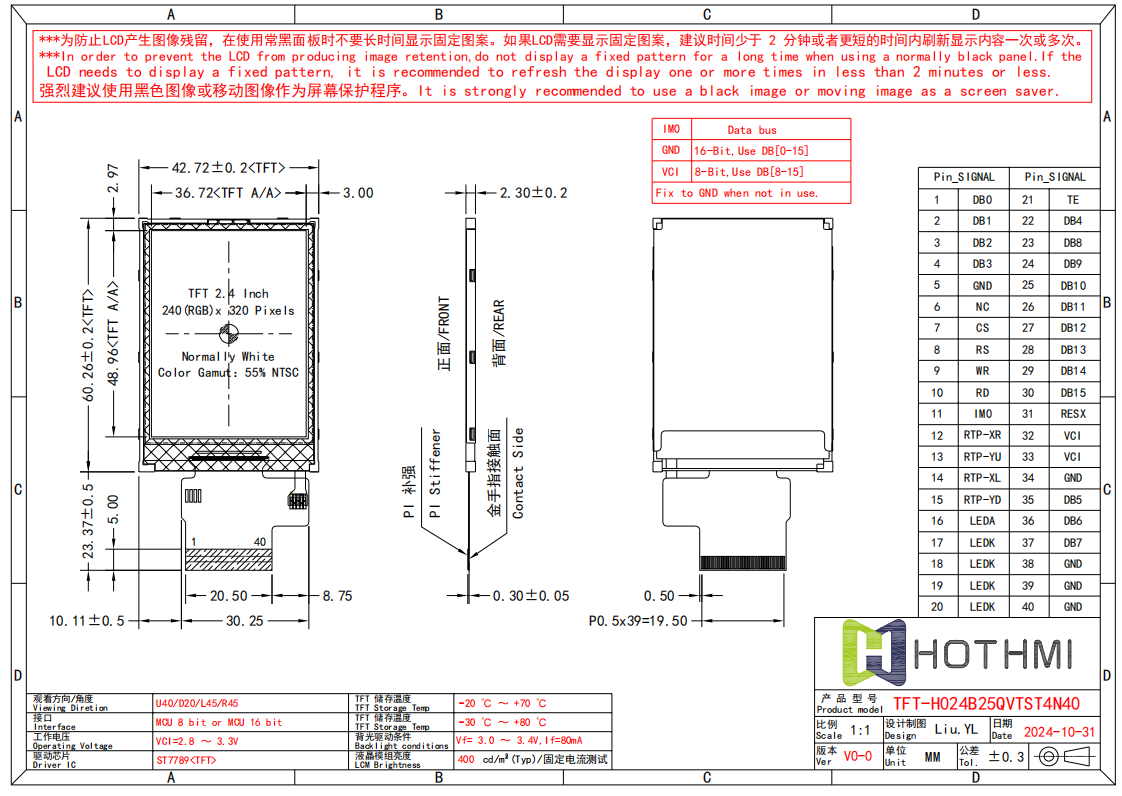

Model TFT-H024B25QVTST4N40 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. It has a resolution of 240x320, built-in ST7789 controller, optional touch screen, support MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.
