Product type：TFT LCD
Show contents：1280x800

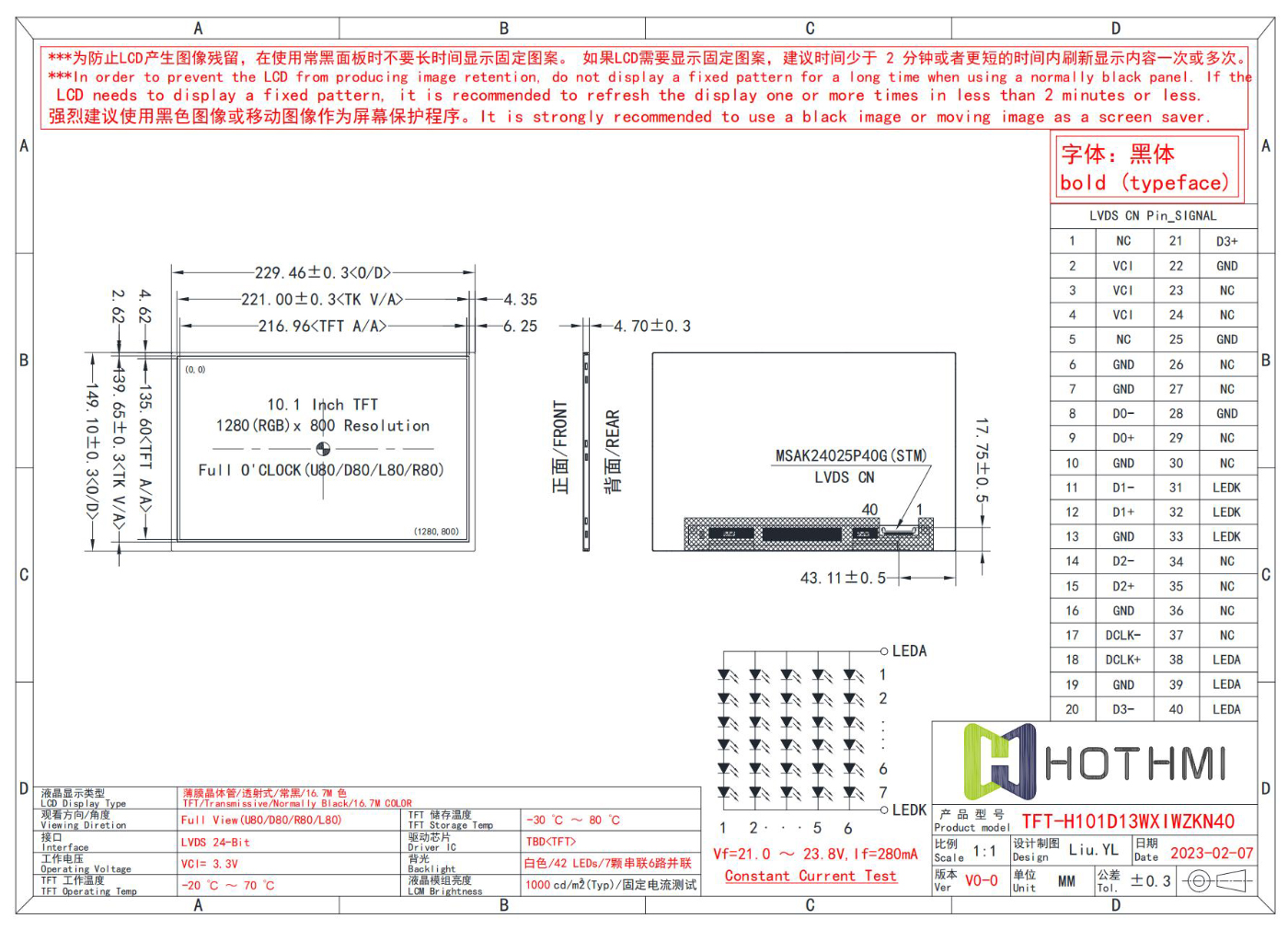

Outline size(mm) ：229.46x149.10x4.70
Size of View Window(mm)：10.1
Display size(mm) ：10.1
Effective size(mm)：216.96x135.60
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：1000cd/m2
Connection PIN Number：FPC-40PIN
Interface mode：LVDS 24 Bit
Special instructions：With capacitive touch function
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：T.B.D
TFT-H101D13WXIWZKN40 is a 10.1-inch IPS capacitive touch TFT LCD display with a resolution of 1280x800 pixels. It uses T B. D display driver IC, plug-in FPC, and can be used with matching connectors. The IPS (U80/D80/L80/R80) technology used in this monitor provides full view and excellent color performance, allowing you to easily view from all angles without distortion. This monitor has a high contrast of 1000:1 and can display deep black and vivid colors. It has a brightness of up to 1000cd/m2 and can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with RoHS environmental standards. This module is widely used in various instruments, industrial computers, intelligent devices, etc. Suitable for various microcontroller development platforms such as Linux system boards, industrial control motherboards, and RK motherboards.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
