Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  3.5寸 IPS TFT 液晶顯示屏 電容式觸摸 RGB 640x480 像素 ST7703/TFT-H035A17VGINV5C40
  • Model : 3.5 Inch IPS TFT LCD Display RGB 640x480 Px ST7703/TFT-H035A17VGINV6N40

    Product type:TFT LCD

    Show contents:640x480

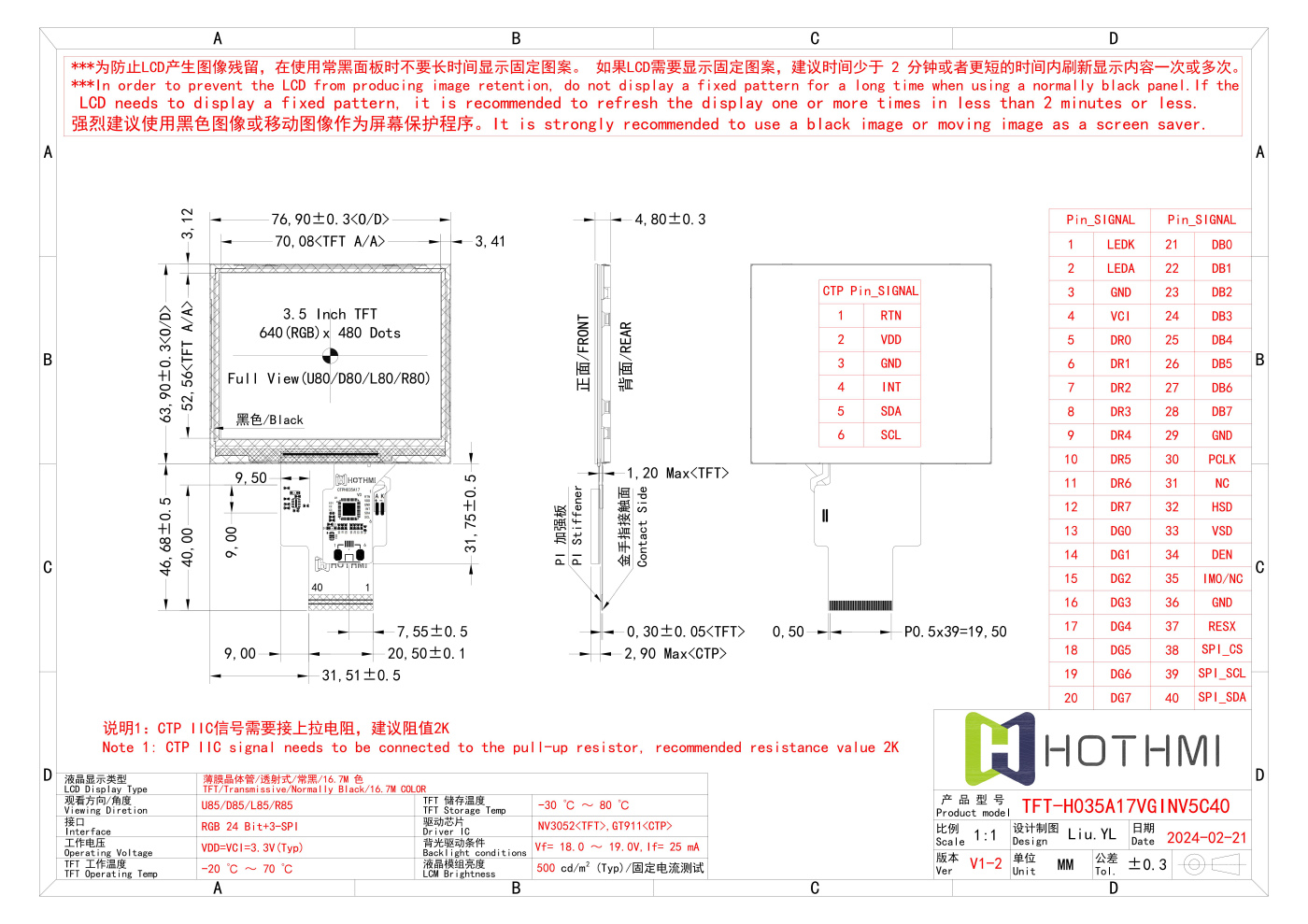

    Outline size(mm) :76.9x63.9x4.8

    Size of View Window(mm):3.5

    Display size(mm) :3.5

    Effective size(mm):70.08x52.56

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:500cd/M2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:NV3052,GT911

Product description

TFT-H035A17VGINV5C40 | 3.5-Inch IPS TFT LCD Display | 640x480px High Resolution Screen | RGB Interface | Capacitive Touch Screen

This 3.5-Inch IPS TFT LCD Display Has A High Resolution Of 640x480 Pixels And Has Built-In EMI Shielding. The TFT Has An RGB Interface And Also Includes A High-Brightness LED Backlight With A Typical Brightness Level Of 500 Cd/M2. Thanks To The IPS Technology Built Into This LCD Monitor, The Monitor Offers Stunning Clarity, Superior Color Reproduction, Better Image Consistency, And High Contrast Ratio Across All Viewing Angles. The Ultra-Bright Backlight Makes This TFT Sunlight Readable In Bright Conditions, Including Direct Sunlight.

While This Transmissive LCD Boasts Impressive Quality And 3.3-Volt Power, It Also Includes A Capacitive Touch Panel, Making It An Excellent Choice For Projects That Require High-End Visual Output With 10-Point Multi-Touch Capability. The PCAP Touch Screen Has A Built-In I2C Interface And GT911 Controller. With Its Precise Touch Recognition And Enhanced Interactive Application Responsiveness, Users Can Perform Various Gestures And Interact More Intuitively. This TFT Display Is Powered By The Built-In NV3052 Driver IC And Is Compatible With The Raspberry Pi/STM32/RK Series, Providing Excellent Performance And Reliability. This Driver Optimizes The Monitor's Functionality, Ensuring Smooth Operation And Accurate Rendering Of Images And Graphics. The LCD And Touch Screen Use FFC (Flexible Flat Cable) Connections To Ensure Easy Electrical Connection. Our Monitors Are RoHS Compliant And Adhere To Strict Environmental And Safety Standards.
