Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  1.28寸 圓形 IPS SPI TFT LCD 顯示屏 Sunlight Readable GC9A01/TFT-H013A6QQIGC7N10-V1
  • Model : 1.28 inch round IPS SPI TFT LCD display Sunlight Readable GC9A01/TFT-H013A6QQIGC7N10-V1

    Product type:TFT Round

    Show contents:240x240

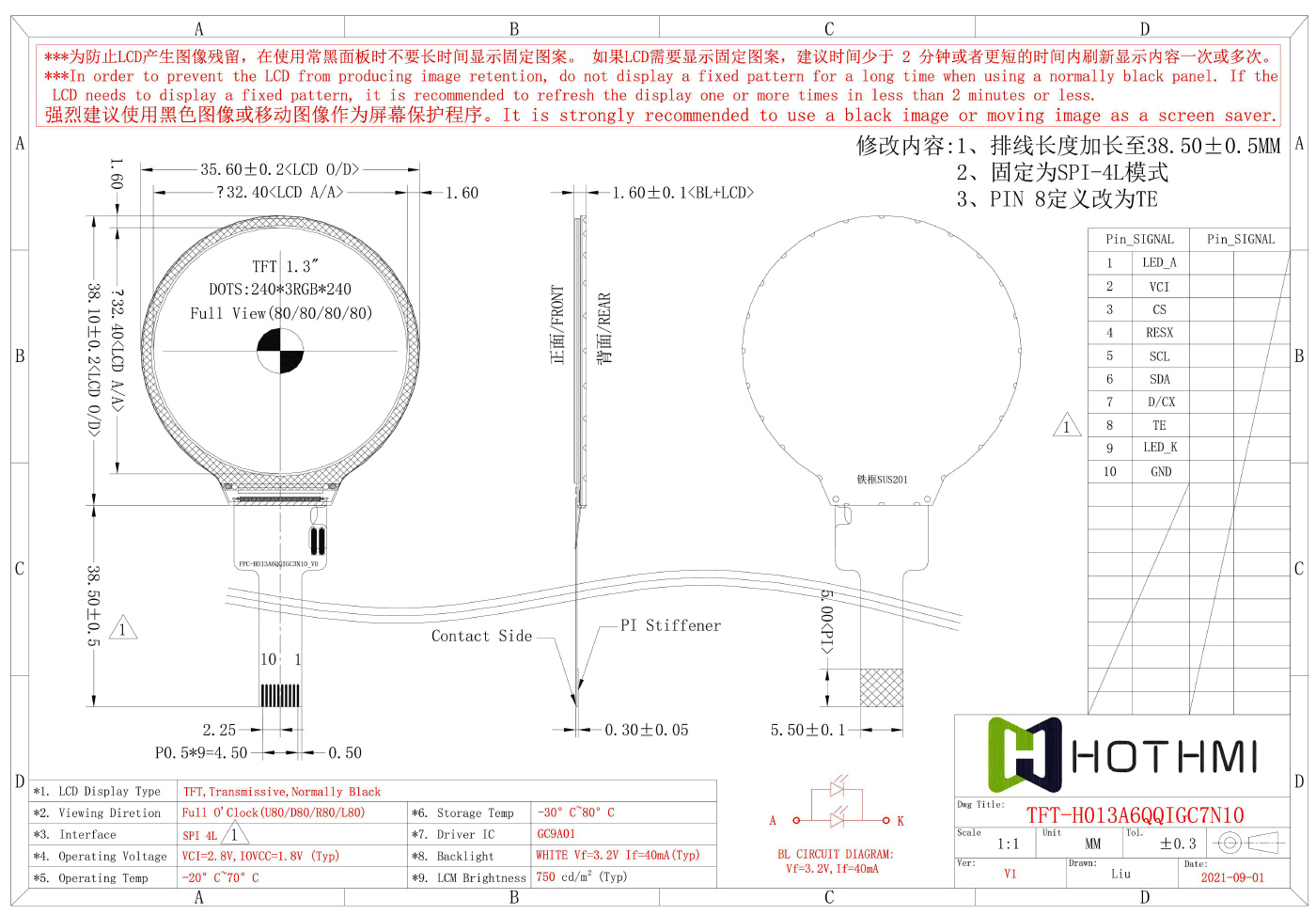

    Outline size(mm) :35.6x38.1x1.6

    Size of View Window(mm):1.28

    Display size(mm) :1.28

    Effective size(mm):32.4x32.4

    Product application:Smart wear, instrumentation

    Visual angle:Full view

    Backlight type or brightness:750cd/m2

    Connection PIN Number:10pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:GC9A01

Product description

TFT-H013A6QQIGC7N10-V1 | 1.28" TFT LCD | 240x240 Pixels | SPI Interface | 10-Pin FFC ZIF Connection | Optional Capacitive/Resistive Touch Screen

The TFT-H013A6QQIGC7N10-V1 Is A Circular IPS TFT-LCD Screen With A Display Diameter Of 1.28 Inches And A Resolution Of 240x240 Pixels. This Circular TFT Display Consists Of An IPS TFT-LCD Panel With A Built-In GC9A01 Driver IC That Communicates Via An SPI Interface.

TFT-H013A6QQIGC7N10-V1 Adopts IPS Panel With Higher Contrast, Pure Black Background When Display Or Pixel Is Off, Left: 80 / Right: 80 / Top: 80 / Bottom: 80 Degrees (Typical) Wider Viewing Angle, Contrast 1,000:1 Ratio (Typ), 750 Nits Brightness (Typ), Anti-Glare Surface Panel. If Customers Need Capacitive Touch Screen, Please Choose Model TFT-H013A6QQIGC7N10-V1.

The LCM's Supply Voltage Is 1.8V To 2.8V, With A Typical Value Of 2.8V. The Operating Temperature Is -20℃ To +70℃, And The Storage Temperature Is -30℃ To +80℃. Display Modules Are Suitable For Compact Devices Such As Smart Meters, Wearables And Meter Applications. They Are Also Ideal For Home Automation Products, White Goods And Video Systems.
