Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules | HI | VGA | LVDS | MIPI | WIth Board  >  3.5寸320x240像素TFT液晶含控制板 IPS LVDS 不銹鋼外殼/HTM-TFT035C01-LVDS

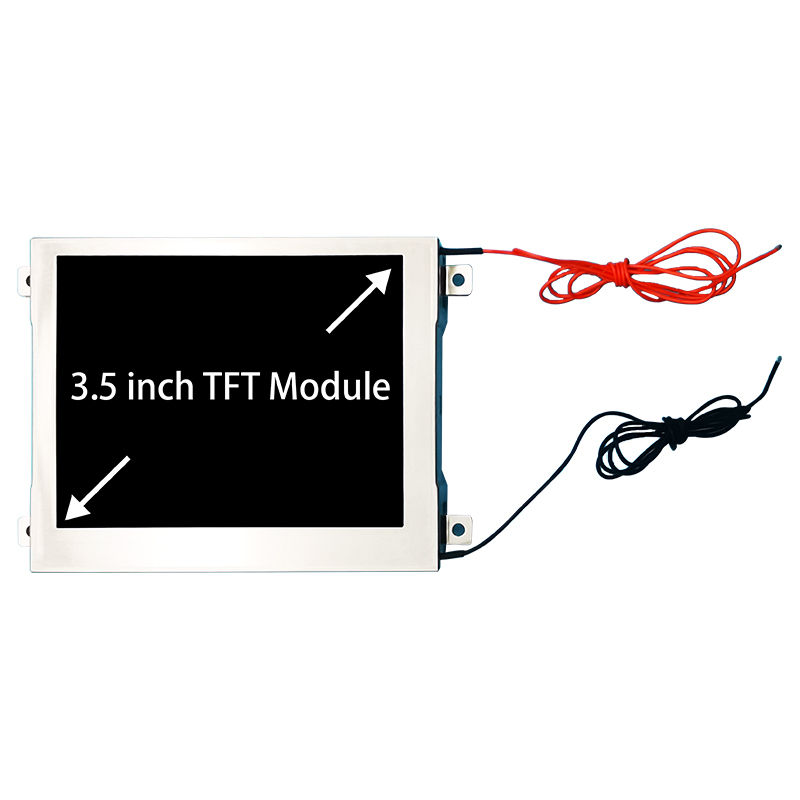

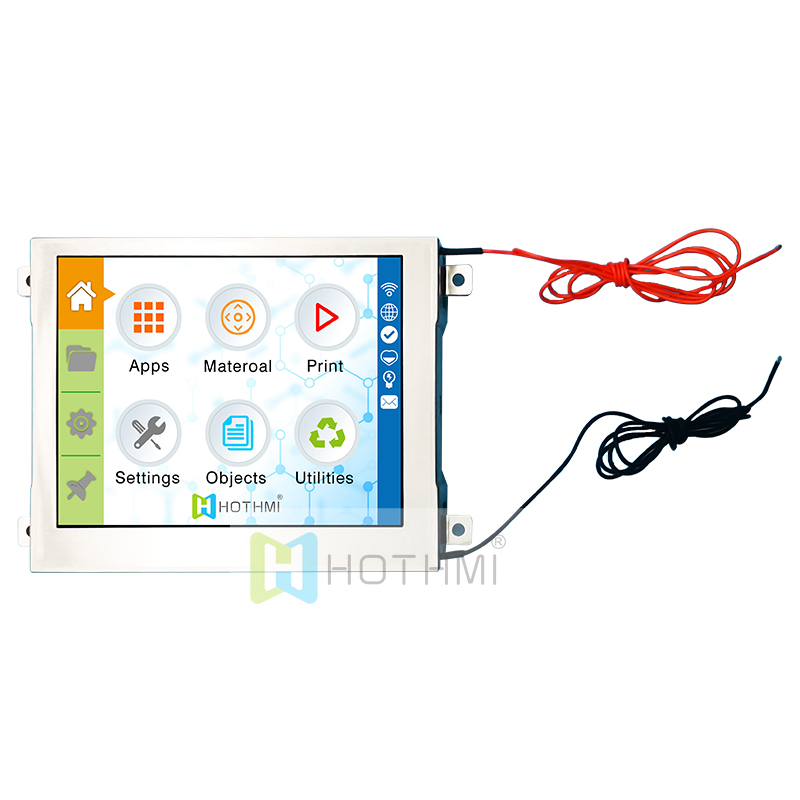

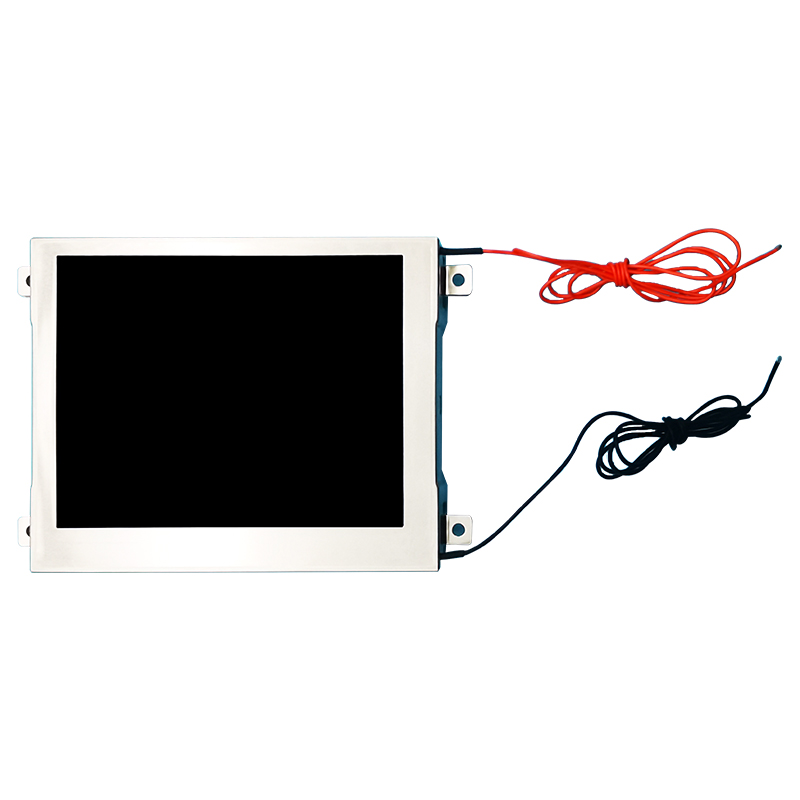

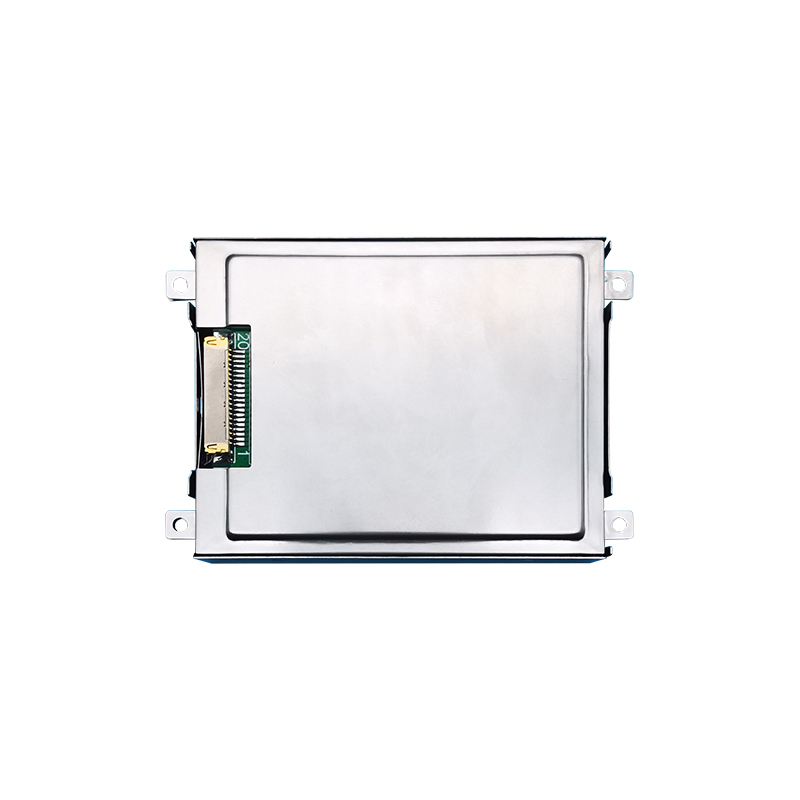

  • Model : 3.5 inch 320x240 px TFT LCD with control board IPS LVDS stainless steel shell/HTM-TFT035C01-LVDS

    Product type:TFT Module

    Show contents:320x240

    Outline size(mm) :83.9x65.9x14.85

    Size of View Window(mm):3.5

    Display size(mm) :3.5

    Effective size(mm):70.88x52.56

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:350cd/m2

    Connection PIN Number:FPC-20PIN

    Interface mode:LVDS

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7272A

    PDF download
Product description

HTM-TFT035C01-LVDS | 3.5" IPS LCD | 320x240px Resolution Screen | LVDS Interface | Customized Stainless Steel Housing | Optional Resistive/Capacitive Screen

This 3.5-Inch IPS TFT Display Features A High Resolution Of 320x240 Pixels And Has Built-In EMI Shielding. The TFT Features An LVDS Interface, Which Provides Additional Benefits Such As High-Speed Data Transfer Rates, Lower EMI And Reduced Wiring Complexity. Also Included Is A High-Brightness LED Backlight With A Typical Brightness Level Of 350 Cd/M2. Thanks To The IPS Technology Built Into This LCD Monitor, The Monitor Offers Stunning Clarity, Superior Color Reproduction, Better Image Consistency, And High Contrast Ratio Across All Viewing Angles.
