Product type：COG
Show contents：128x64

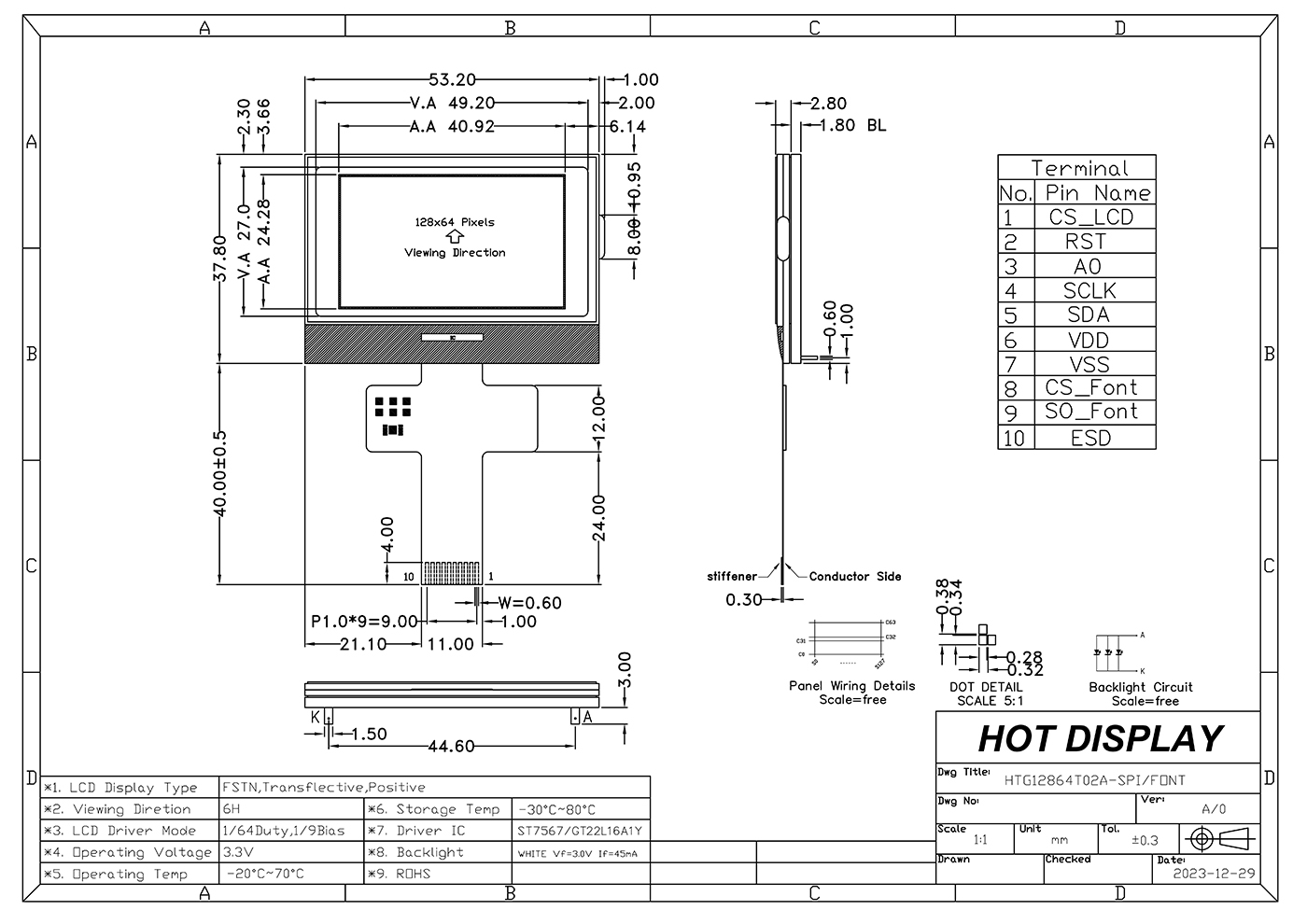

Outline size(mm) ：53.2x37.8x2.8
Size of View Window(mm)：49.2x27.0
Display size(mm) ：40.92x24.28
Point spacing(mm)：0.38x0.32
Product application：Instrumentation
Visual angle：6H
Connection PIN Number：10pin
Interface mode：SPI
Special instructions：With Chinese, English and Russian text library
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：ST7567
HTG12864T02A-31W-SPI-FONT | Monochrome Graphics COG | 128x64 Pixels | Transflective LCD Display | Side White Backlight | FSTN (+) Front Display | Comes With Chinese, English, Russian, Fonts | Optional Heating Plate , Can Reach Ultra-Low Temperature Operation Of -40℃ | Low Power Consumption Graphic LCD
This HOTLCD 12864 Chip On Graphics Glass (COG) LCD Module Displays Deep Black Pixels On A Bright White Background. This Transflective LCD Monitor Is Engineered To Provide Optimal Visibility In A Variety Of Lighting Conditions In A Variety Of Environments. In Bright Sunlight, The Display Uses Its Reflective Layer To Reflect Ambient Light Back To The Viewer, Making The Screen Easy To Read. In Darker Environments, The LCD Has A Strong Built-In Backlight That Provides High Contrast And Displays Clear Graphics To The Viewer. This Advanced Display Technology Ensures That The Display Is Always Easy To Read, Regardless Of Lighting Conditions. It Comes With A Russian Character Library, Which Can Be Displayed In Chinese, English And Russian At The Same Time.
This Graphic LCD Display Module Is Fully Compatible With Arduino/C8051 And Can Be Seamlessly Connected With Other Electronic Systems And Suitable For Various Applications. The HTG12864T02A-31W-SPI-FONT Model Is Designed To Withstand Harsh Operating Conditions And Will Perform Abnormally When Used In Temperatures Ranging From -20 To 70 Degrees Celsius. The LCD Has An Optimal Viewing Angle Of 6:00, Operates At 3.3V, And Is RoHS Compliant.
