Product type：TFT LCD
Show contents：170x320
Outline size(mm) ：25.8x49.72
Size of View Window(mm)：2.0
Display size(mm) ：2.0
Effective size(mm)：22.7x42.72
Product application：Instrumentation
Visual angle：Full view
Backlight type or brightness：700cd/m2
Connection PIN Number：10pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7789

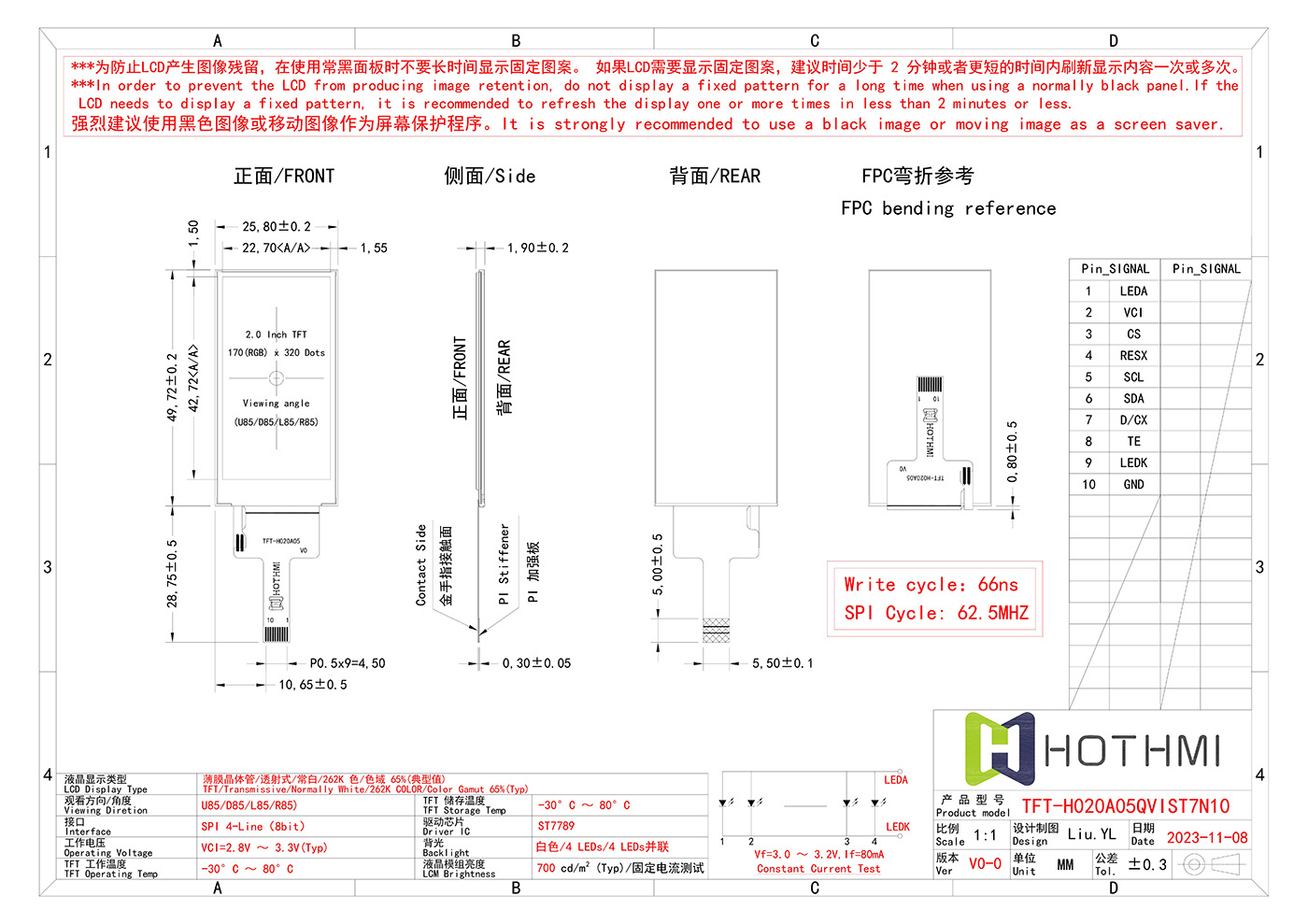

TFT-H020A05QVIST7N10 | 2.0" LCD module | 170x320 pixels | Serial SPI interface | 10-pin FFC ZIF connection | Optional resistive/capacitive touch screen
This 2.0-inch TFT display is suitable for a variety of projects from embedded systems to industrial equipment and handheld devices. It offers a crisp 170x320 pixel resolution and a bright LED backlight brightness of 750 cd/m2, and the display is visible in sunlight, ensuring high-quality color image display.
In terms of connection, it uses a 4-wire serial SPI interface and is connected through pin headers to improve communication efficiency with Arduino and other devices. The interface is not only flexible, but also supports fast data transfer, providing the possibility for real-time updates, smooth animations and dynamic visual effects.
In addition, the monitor is RoHS compliant and adheres to strict environmental and safety standards, reflecting the emphasis on environmental protection and user safety. Overall, this monitor combines performance, flexibility, and reliability for a variety of modern electronic devices and projects.
