Product type：TFT Module
Show contents：240x320
Outline size(mm) ：88x53.3x10.9
Size of View Window(mm)：2.8
Display size(mm) ：2.8
Effective size(mm)：57.6x43.2
Product application：Instrumentation
Visual angle：Full view
Backlight type or brightness：700cd/m2
Connection PIN Number：8pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7789V

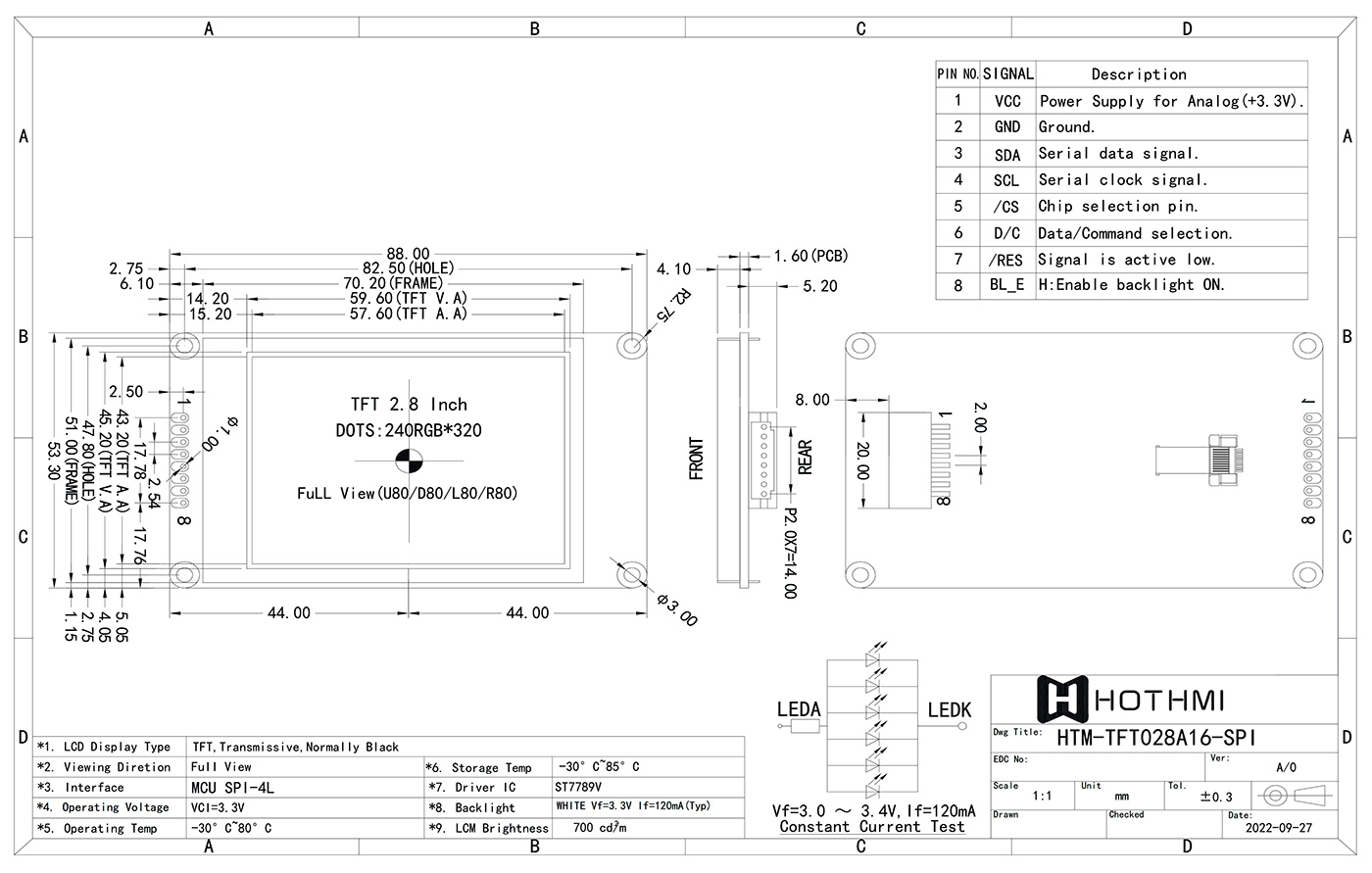

HTM-TFT028A16-SPI | 2.8" LCD module | 240x320 pixels | Serial SPI interface | 8-pin FFC ZIF connection | With driver control board
It can be used in any embedded system, industrial equipment, security and handheld devices that need to display high-quality and color images. It is a 4 wire serial spi interface with pin header connections.
The 2.8-inch TFT display has a resolution of 240x320 pixels and has a bright LED backlight with a brightness of 700 cd/m2. Visible in sunlight, the display offers stunning clarity at viewing angles of up to 70° thanks to the Multi-Domain Vertical Alignment (MVA) technology in this LCD monitor. While this transmissive LCD doesn't come with a touch screen, its compact size, 3.3-volt power supply, and impressive display quality make it an excellent choice for projects that require portrait-mode visual output without touch functionality.
The 3/4-wire SPI serial interface improves communication efficiency between the Arduino and the display. Experience lightning-fast data transfer and real-time updates for smoother animations and more dynamic visuals. The interface provides flexibility and compatibility with a variety of Arduino models, and the TFT LCD display is powered by the ST7789V controller, delivering superior performance and reliability. The controller optimizes the functionality of the monitor, ensuring smooth operation and accurate rendering of images and graphics. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.
