Product type：COB LCD Module
Show contents：40x2Character

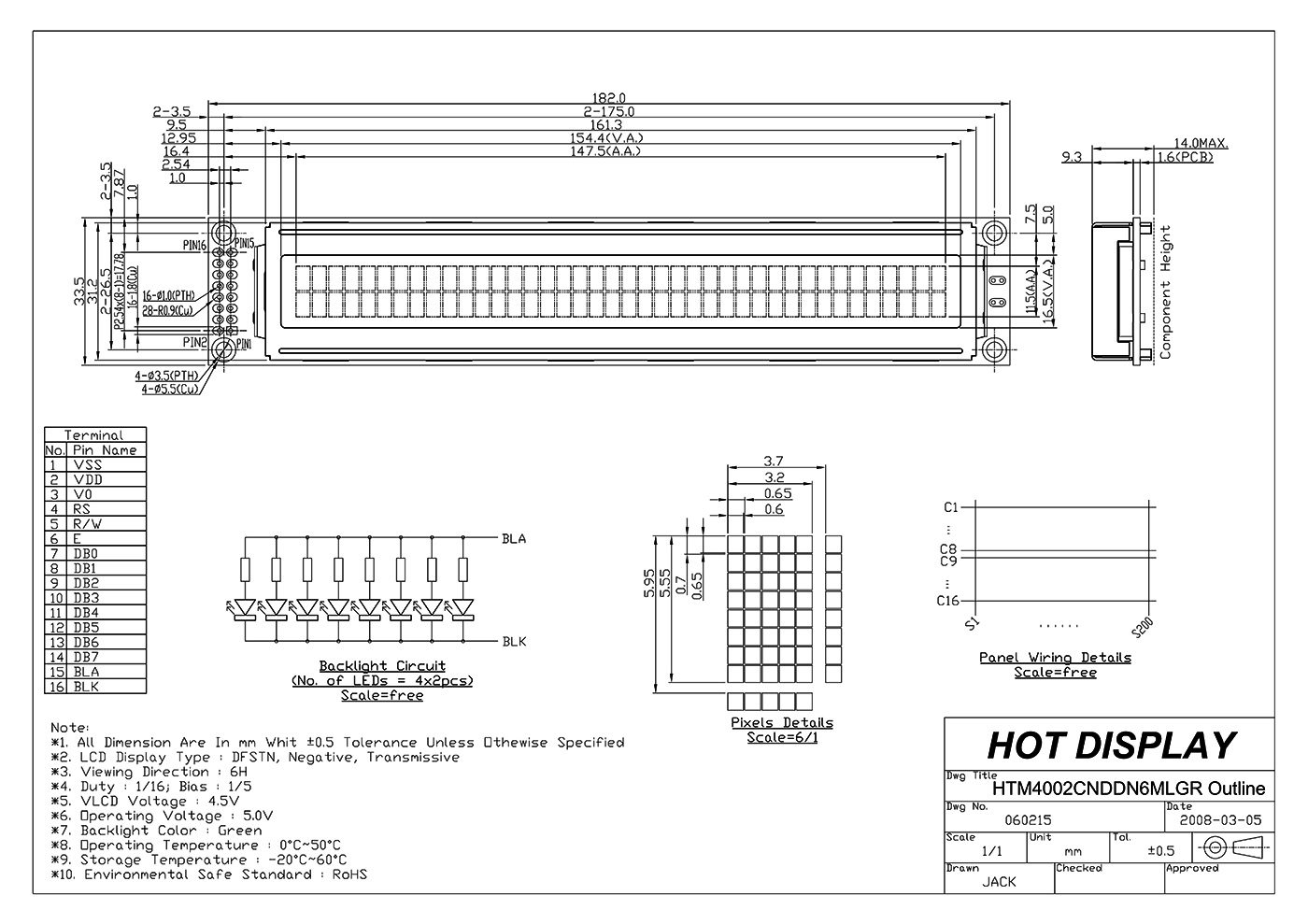

Outline size(mm) ：182x33.5x9.3
Size of View Window(mm)：154.4x16.5
Display size(mm) ：147.5x11.5
Point spacing(mm)：0.65x0.6
Product application：Instrumentation
Visual angle：6H
Backlight type or brightness：Green
Connection PIN Number：16pin
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-10~60℃
Power supply voltage：5.0V
Driver chip model：ST7066U
HTM4002C | 40x2 Character Display | Transmissive LCD | Green Backlight | DFSTN (-) Negative Blue Display
The HOTDISPLAY 40x2 character LCD displays green pixels on a black background. This high-quality LCD utilizes a transmissive mode, requiring the built-in backlight for visibility in low-light environments. It features a wide operating temperature range from -20 to 70 degrees Celsius.
The HTM4002C display is optimized for a 6:00 viewing orientation and comes with English and Japanese standard font options. It is compatible with Arduino, allowing easy integration into Arduino-based projects. The LCD operates at a 5V supply voltage, ensuring compatibility with common electronic systems.
In summary, the HOTDISPLAY 40x2 character LCD is a versatile display solution with green pixels on a black background, suitable for various applications. Its compatibility with Arduino makes it convenient for use in a variety of projects.
