Product type：OLED Module
Show contents：128x128

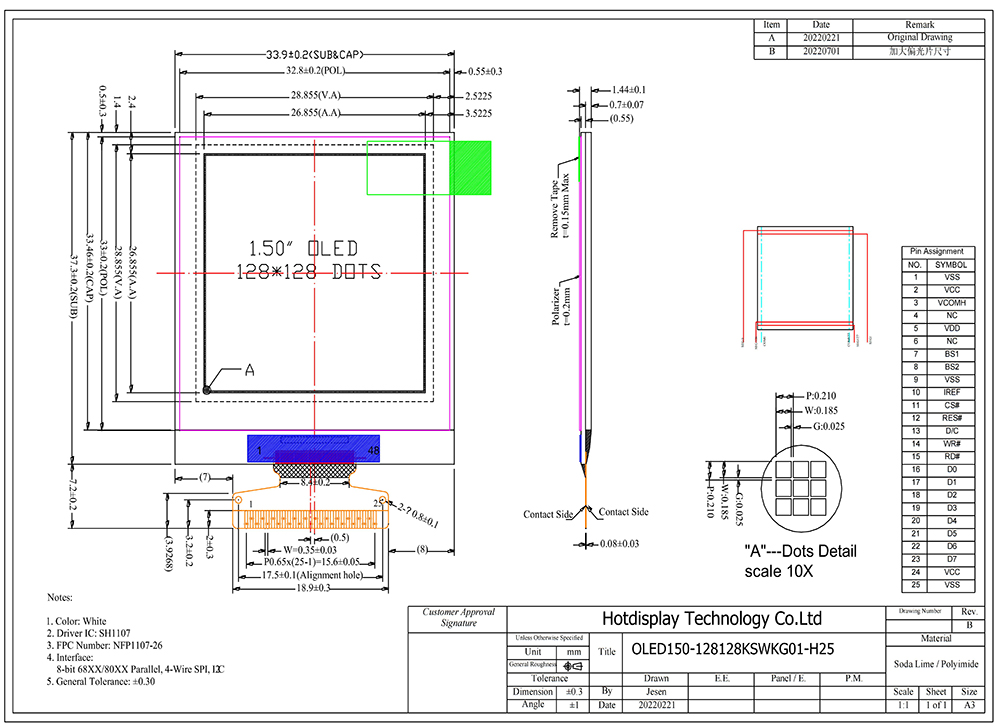

Outline size(mm) ：33.9x37.3
Size of View Window(mm)：1.5
Display size(mm) ：1.5
Point spacing(mm)：0.21x0.21
Effective size(mm)：26.855x26.855
Product application：Instrumentation
Backlight type or brightness：100cd/m2
Connection PIN Number：25pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-40~80℃
Power supply voltage：3.3V
Driver chip model：SH1107
Introducing our revolutionary 1.5" OLED Display Module! Experience the perfect blend of compact size and stunning visual performance.
With a resolution of 128x128 dots, this display module delivers incredible clarity and detail. The A.A area measures 26.855x26.855mm, providing ample space to showcase your content. Its compact dimensions of 33.9x37.3mm make it ideal for space-constrained applications.
Immerse yourself in a world of vibrant visuals with the crisp white color selection. The minimum brightness of 100 cd/m2 ensures optimal visibility, even in challenging lighting conditions. Your content will shine bright and captivate your audience.
Powered by an external supply of 3.3V, this OLED module offers convenient and reliable operation. Choose your preferred interface mode from Parallel, I2C, or 4-wire SPI for seamless integration into your system. It's designed to adapt to your specific requirements.
Operating flawlessly in temperatures ranging from 40-80℃, this module is built to withstand various environmental conditions. Its reliability and durability make it suitable for a wide range of applications.
With template control using a PCB circuit board, customization is a breeze. Tailor the display to meet your unique needs and unleash your creativity. The SH1107 driver IC ensures smooth performance and exceptional image quality.
Upgrade your projects with our feature-packed 1.5" OLED Display Module. Elevate your visuals, showcase your content, and leave a lasting impression. It's time to unlock the full potential of OLED technology! #OLED #DisplayModule #Innovation #VisualExcellence
Size: 1.5'' OLED Display Moudle
Resolution: 128x128 dots
A.A Area: 26.855x26.855mm
Dimensions: 33.9x37.3mm
Color Selection: White
Working Brightness: 100 cd/m2 (minimum)
Power Supply Mode: External supply (3.3V)
Interface Mode: Parallel/I2C/4-wire SPI
Working Temperature: 40-80℃
Template Control with PCB Circuit Board
Driver IC: SH1107
Character Size: 0.185x0.185
Character Spacing: 0.21x0.21
