Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  Smart TFT Modules | RS232| UART|CAN|| WIth Board/Touch  >  5寸 800x480 UART TFT彩屏 智能串口屏 陽光下可見 COF-H050A13-UART-A01

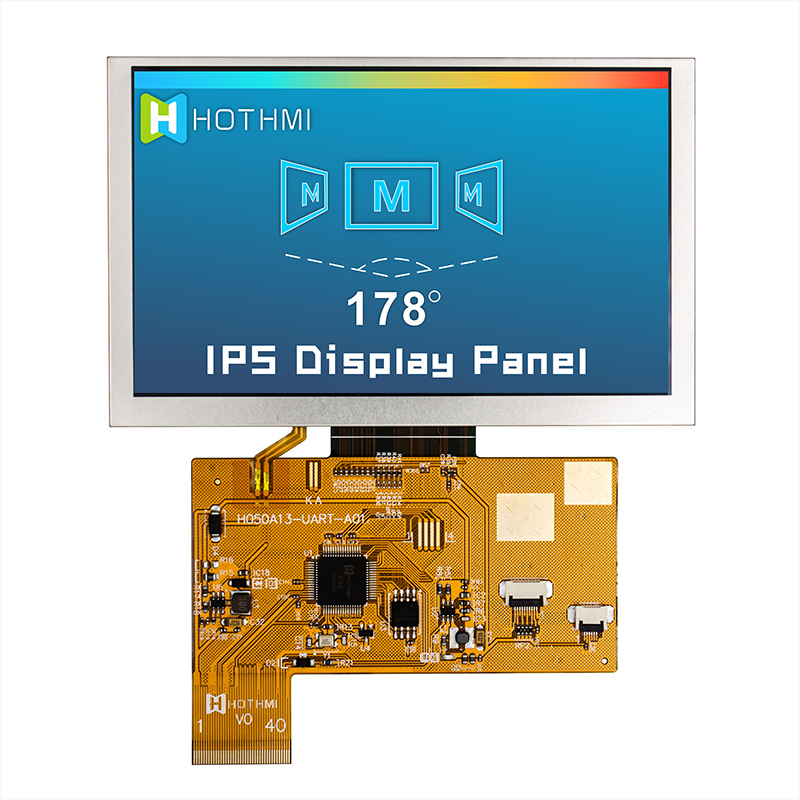

  • Model : 5 Inch 800x480 UART TFT Display With Smart serial screen COF-H050A13-UART-A01

    Product type:TFT LCD

    Show contents:800x480

    Outline size(mm) :120.7x75.8x3.03

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):110x66.8

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:40pin

    Interface mode:UART(TTL)

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~70℃

    Power supply voltage:5.0V

    PDF download
Product description

5 Inch 800x480 UART TFT Display With Smart serial screen COF-H050A13-UART-A01

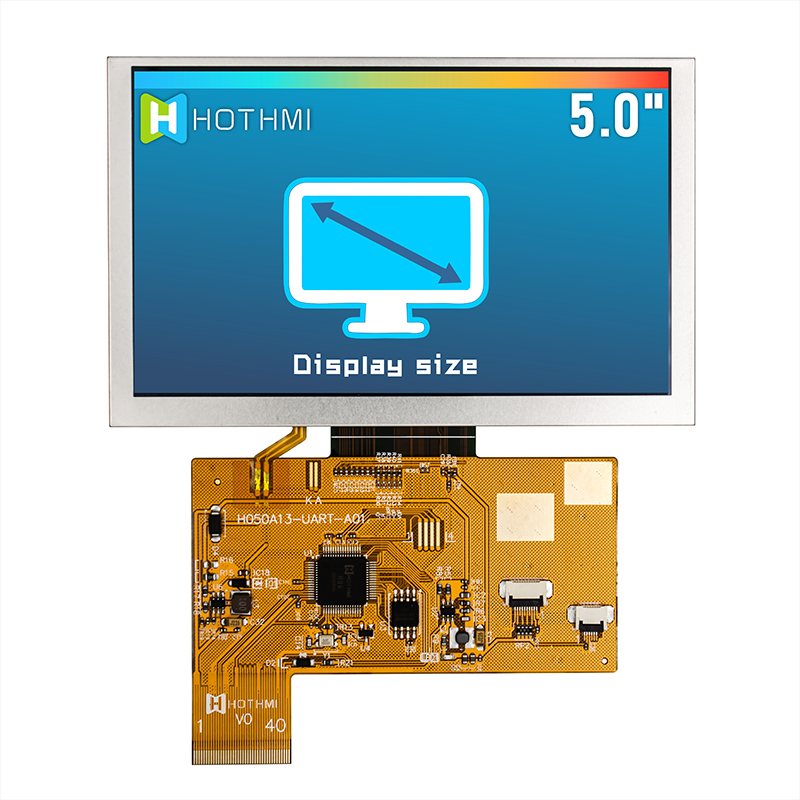

  1. Screen Size: 5.0 inches

  2. Display Type: IPS LCD

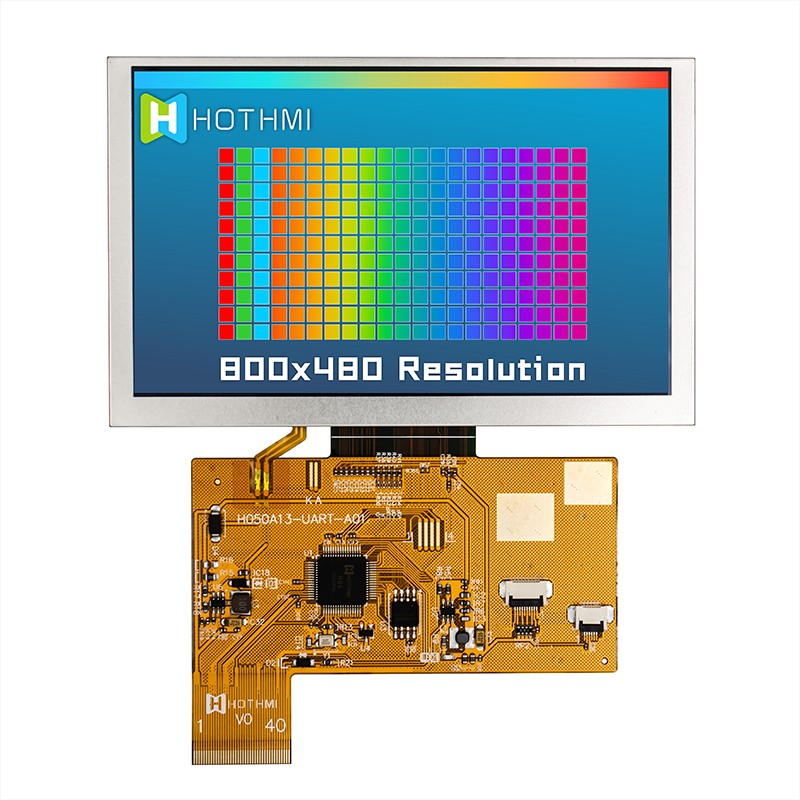

  3. Resolution: 800x480 pixels

  4. LCD Controller Board: Included for seamless operation and compatibility with various systems

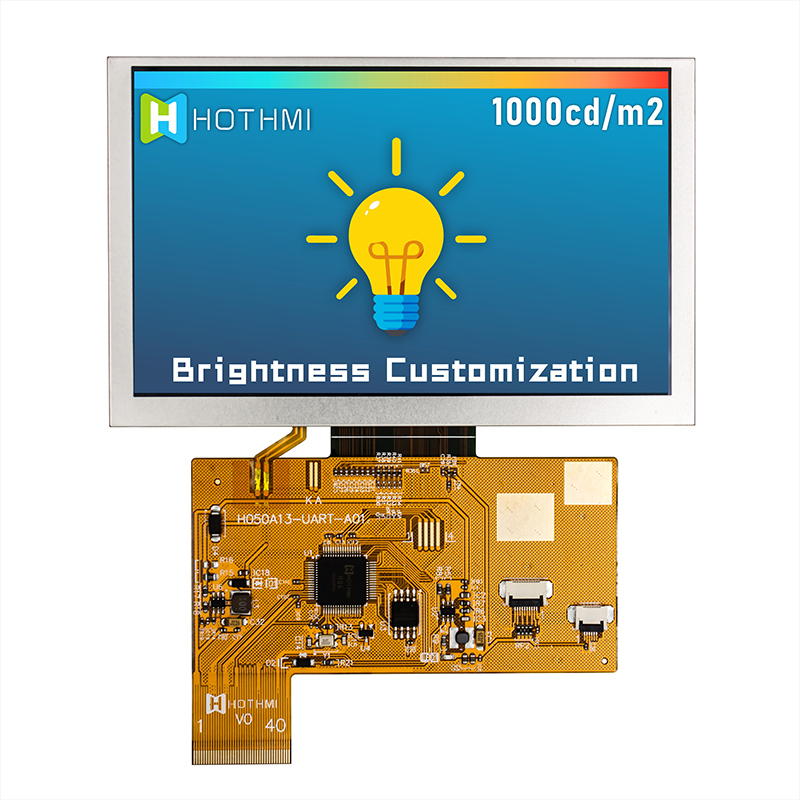

  5. Luminance: 1000cd/m2 (candelas per square meter), providing excellent brightness for clear visibility even in direct sunlight

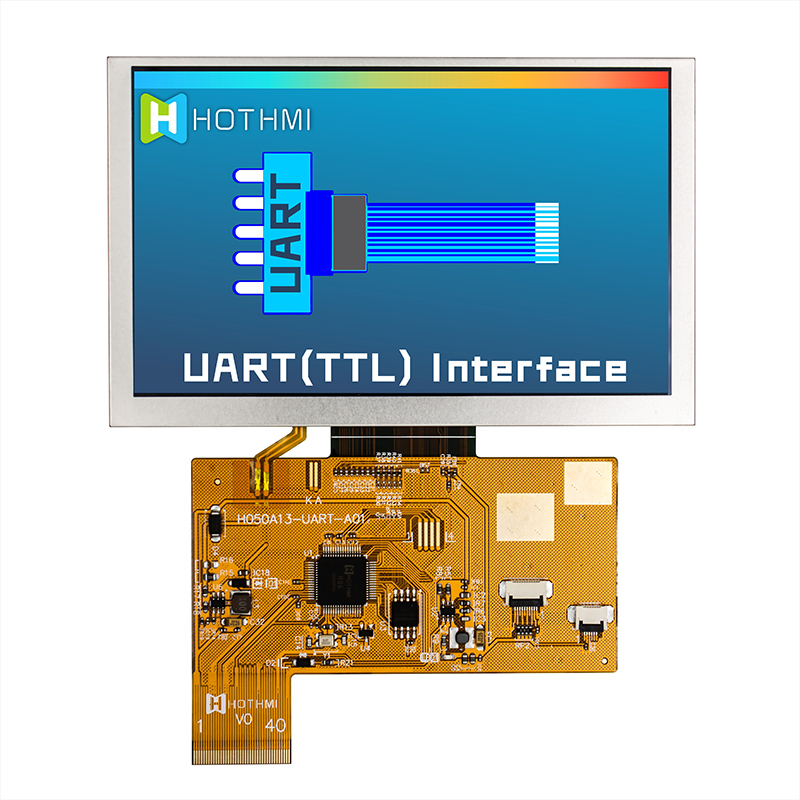

  6. Interface: UART (TTL) for easy connectivity and communication with your system

  7. Sunlight Readable: Designed to maintain visibility and legibility of the display under bright outdoor lighting conditions

  8. Wide Operating Temperature Range: -30°C to 80°C, ensuring reliable performance in extreme temperature environments

  9. High-Quality Display: The IPS LCD technology delivers exceptional color accuracy, wide viewing angles, and sharp image quality

  10. Robust Construction: Built to withstand demanding conditions and provide long-lasting durability

  11. Compact and Portable: The 5.0-inch size and lightweight design make it suitable for space-constrained projects and portable devices

  12. Versatile Applications: Ideal for a wide range of applications including industrial control systems, portable devices, automotive displays, and more

  13. User-Friendly: The display module offers intuitive controls and easy setup for convenient operation

  14. Quality Assurance: Manufactured and tested to meet high standards, ensuring reliable performance and longevity

Experience the superior visual performance and reliability of the COF-H050A13-UART-A01 5.0-inch Smart Serial Screen. Its sunlight readability, wide temperature range, and user-friendly interface make it an excellent choice for various projects where a compact and high-quality display is required.
