Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  7寸 彩屏 IPS全視角高亮度 TFT LCD 彩色液晶顯示屏帶控制器板1024x600 HTM-H070A2-RGB-B06
  • Model : 7 Inch IPS 1024x600 TFT LCD Module Display Panel With Controller Board HTM-H070A2-RGB-B06

    Product type:TFT Module

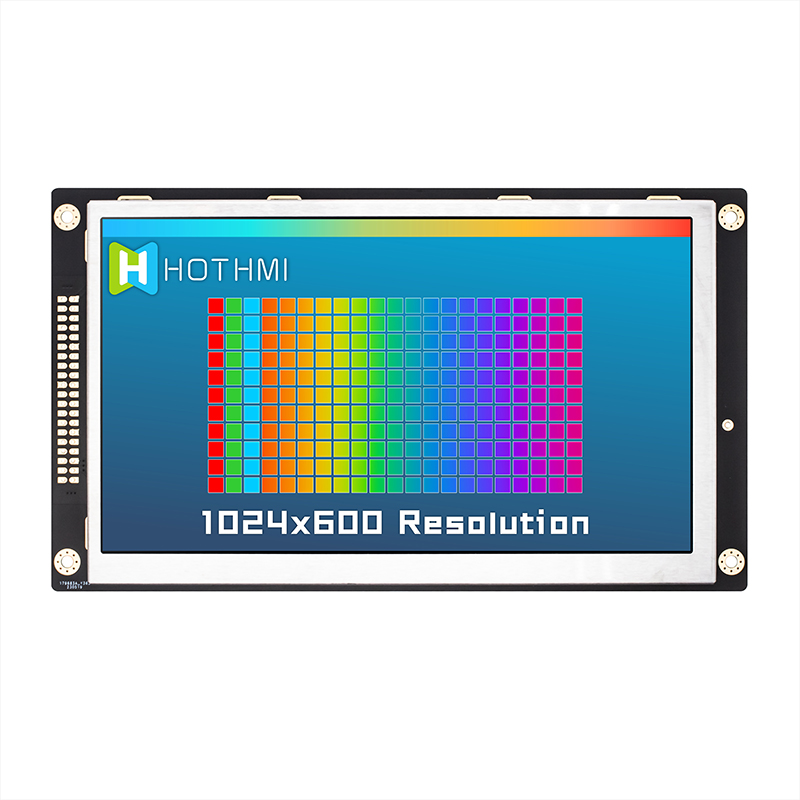

    Show contents:1024x600

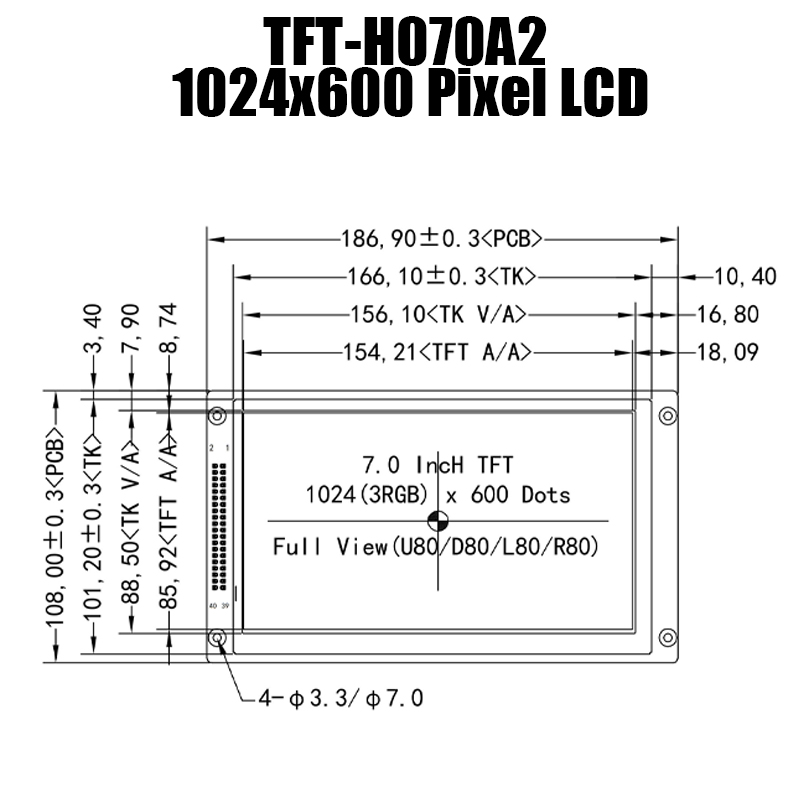

    Outline size(mm) :186.9x108x8.3

    Size of View Window(mm):7.0

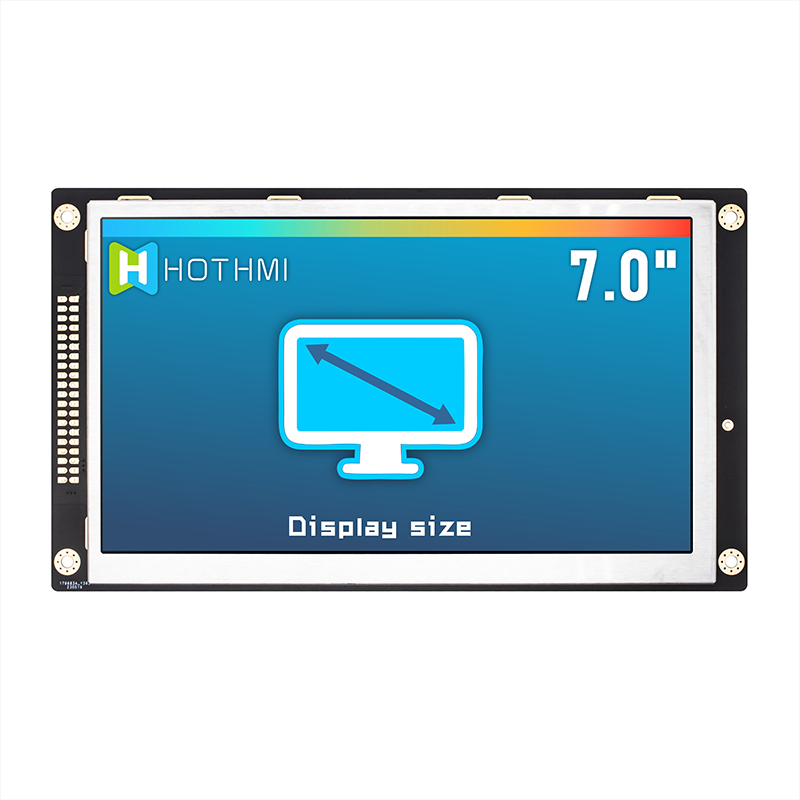

    Display size(mm) :7.0

    Effective size(mm):156.1x88.5

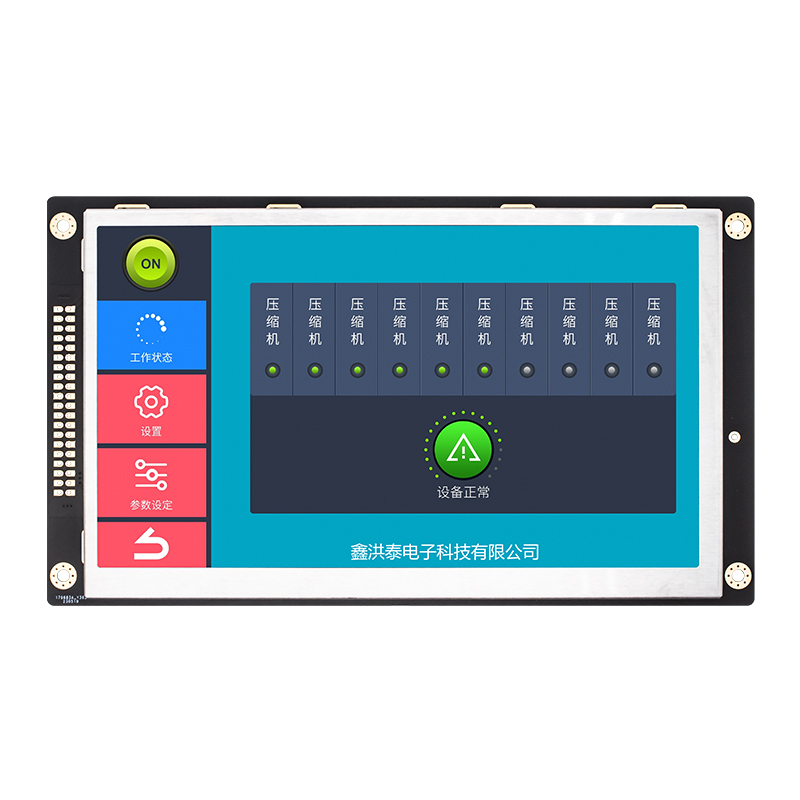

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:700cd/m2

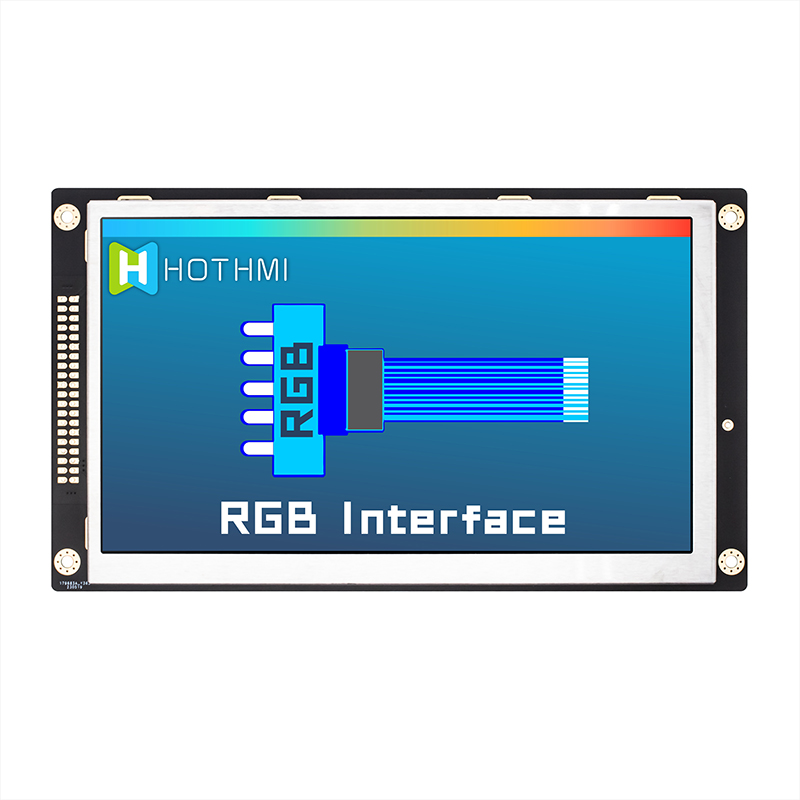

    Interface mode:RGB

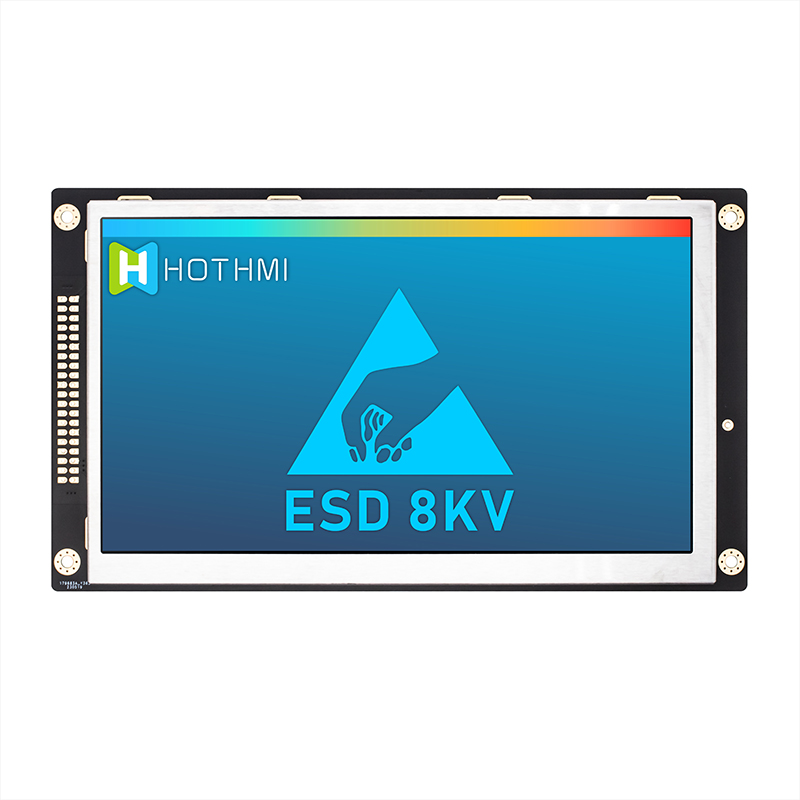

    Special instructions:Anti-static ESD 8KV

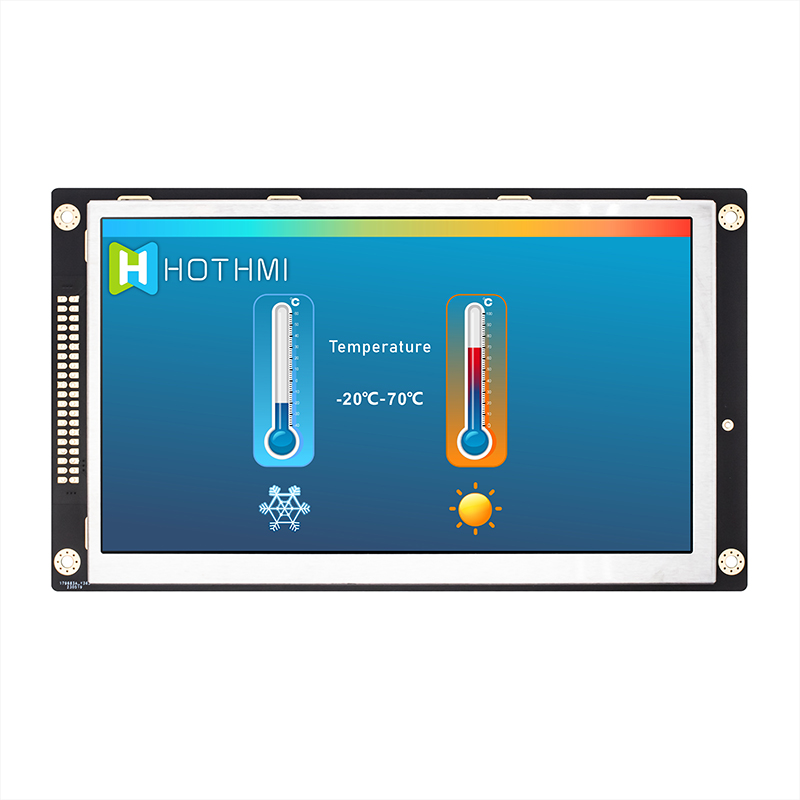

    Working temperature:-20~70℃

    Power supply voltage:5.0V

    PDF download
Product description

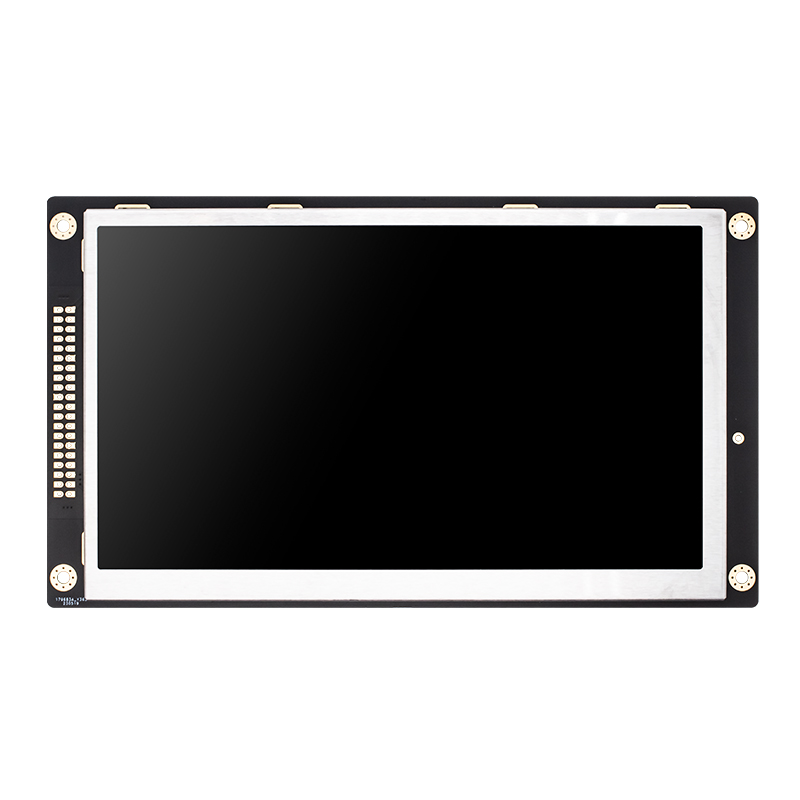

7 Inch IPS 1024x600 TFT LCD Module Display Panel With Controller Board HTM-H070A2-RGB-B06

The display module has a resolution of 1024600 and a 24-bit RGB interface, suitable for use with MCUs or CPUs that have built-in display controllers. It can be driven using RAM chips, such as ST's STM32F4x9, STM32F7x6, and STM32H7x4. The module is compatible with the debugging board from Atom Matrix and features an IPS full viewing angle. Additionally, the module comes with T-CON circuitry and backlight boosting circuitry, requiring only a single 5V power supply. Users have the option to include a resistive or capacitive touch screen. Without the touch screen, the brightness can reach 700cd/m2, while with the touch screen, the brightness can reach 550cd/m2.


Introducing the HTM-H070A2-RGB-B06, a cutting-edge 7-inch IPS TFT LCD module display panel with a controller board. This remarkable display boasts a high-resolution of 1024x600 pixels, ensuring crisp and vibrant visuals that will captivate your audience.

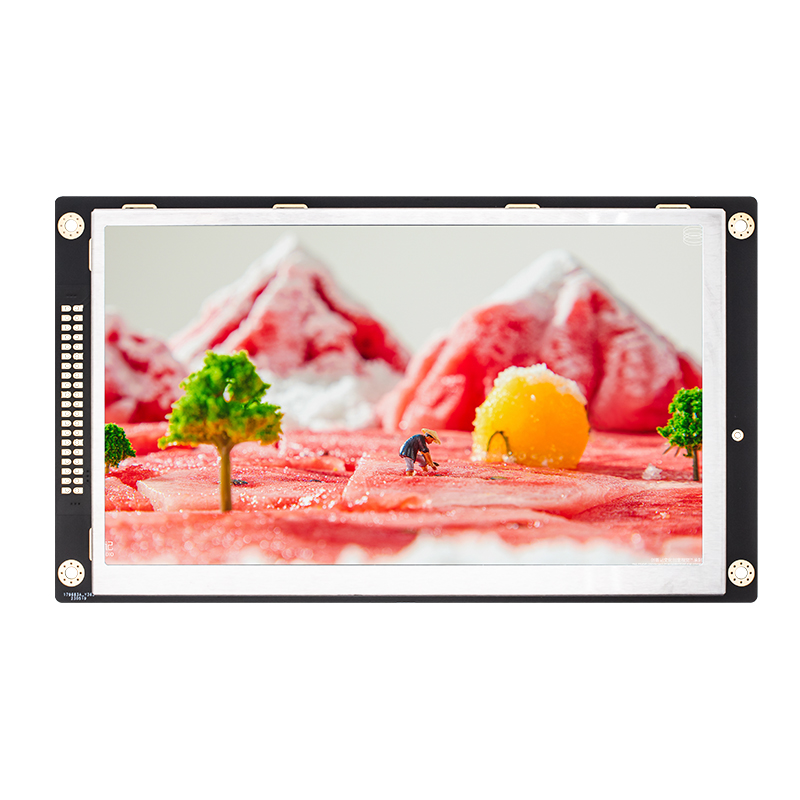

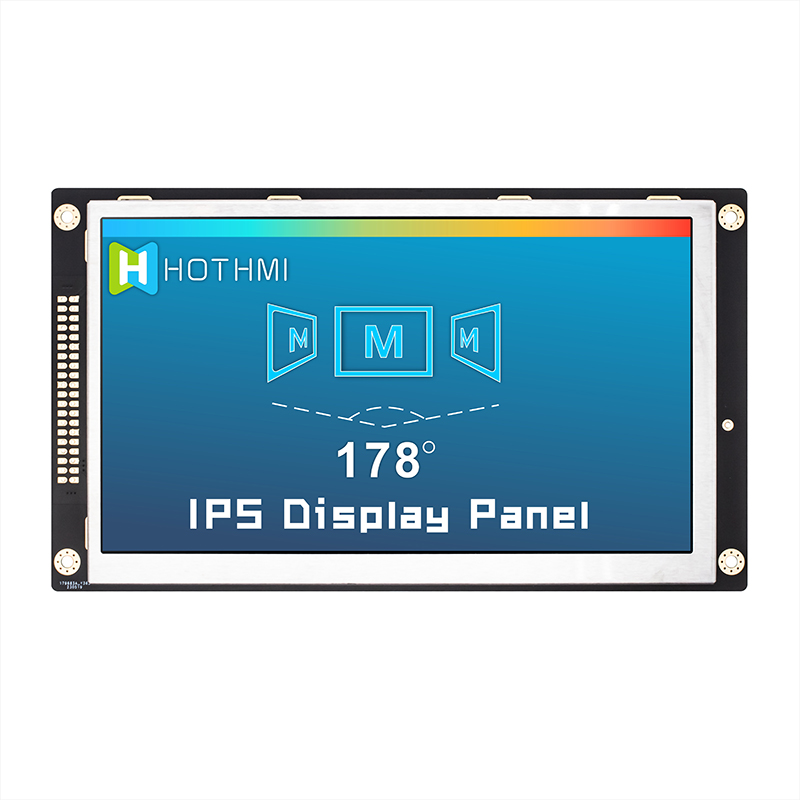

Equipped with an IPS panel, this display offers wide viewing angles and exceptional color accuracy, allowing your content to shine from any perspective. Whether you're showcasing images, videos, or text, the HTM-H070A2-RGB-B06 delivers stunning clarity and detail.

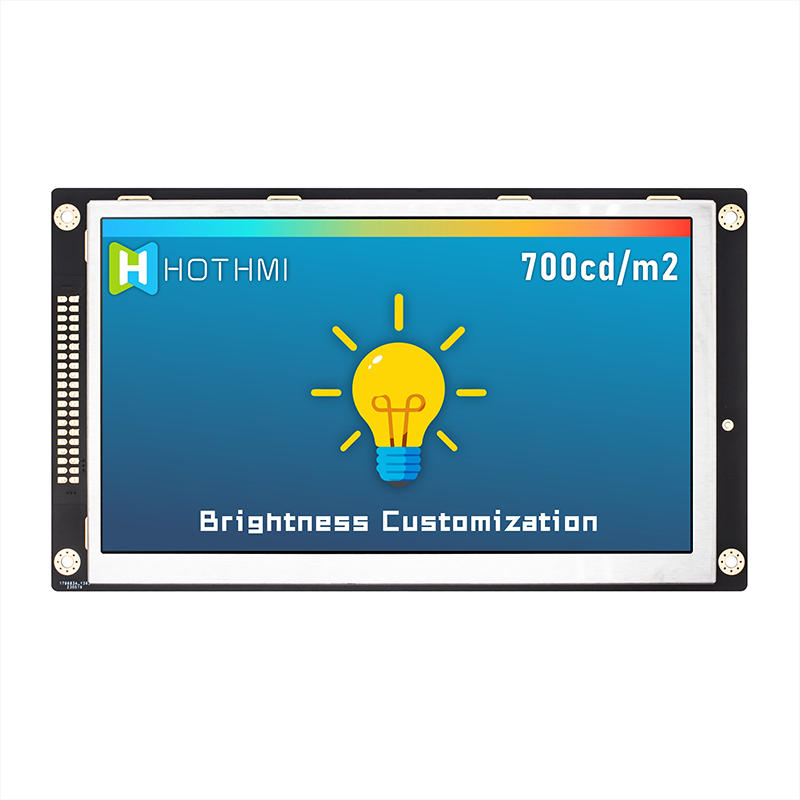

With a luminance of 700cd/m2, this display ensures excellent visibility even in brightly lit environments. Whether you're using it indoors or outdoors, the HTM-H070A2-RGB-B06 guarantees optimal visibility and readability under various lighting conditions.

The interface of this display is RGB, ensuring seamless compatibility with a wide range of devices and systems. You can easily integrate it into your existing setup without any compatibility concerns.

Built with durability in mind, the HTM-H070A2-RGB-B06 operates flawlessly within a temperature range of -20°C to 70°C. It is designed to withstand harsh environmental conditions, making it suitable for a wide range of applications and industries.

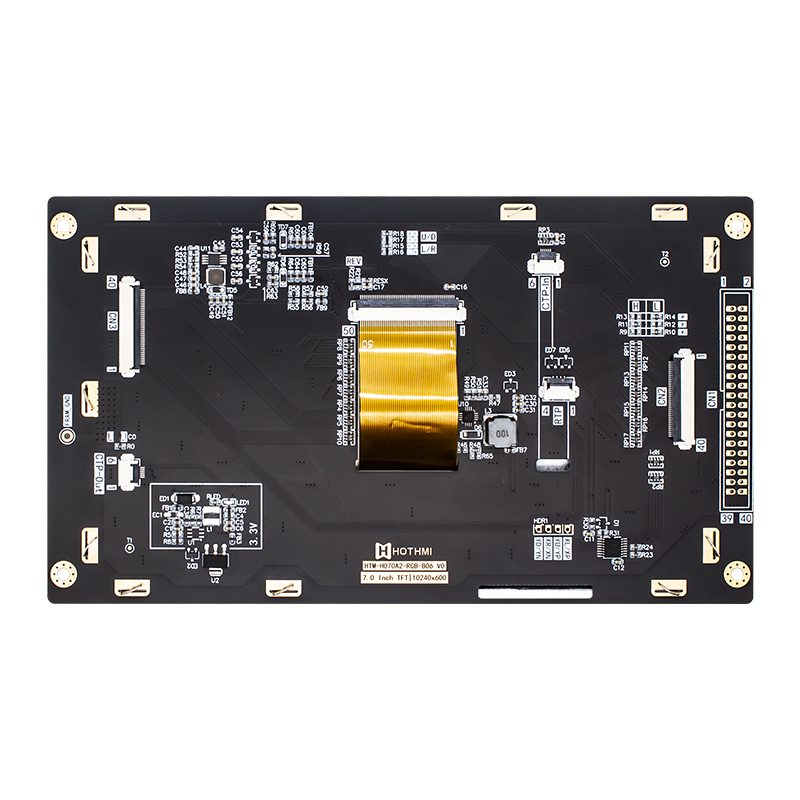

To further simplify your setup, this display comes with a controller board, allowing for easy installation and operation. The controller board enhances functionality and provides convenient control options for your display.

Experience the HTM-H070A2-RGB-B06 and elevate your visual displays to the next level. Its impressive features, robust design, and exceptional performance make it an ideal choice for various applications, including digital signage, gaming, industrial automation, and more.
