Product type：TFT LCD
Show contents：480x800
Outline size(mm) ：57.14×96.85×2.10
Size of View Window(mm)：4.0

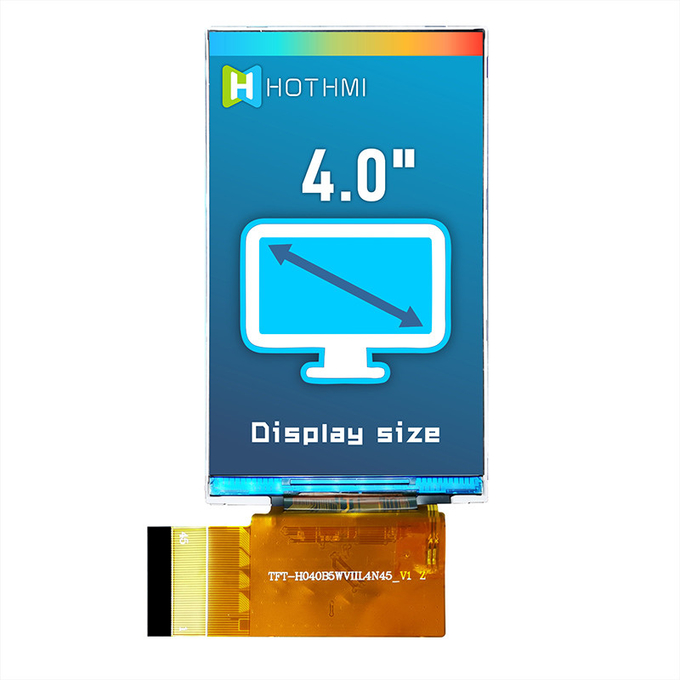

Display size(mm) ：4.0
Effective size(mm)：51.84x86.40
Product application：Instrumentation

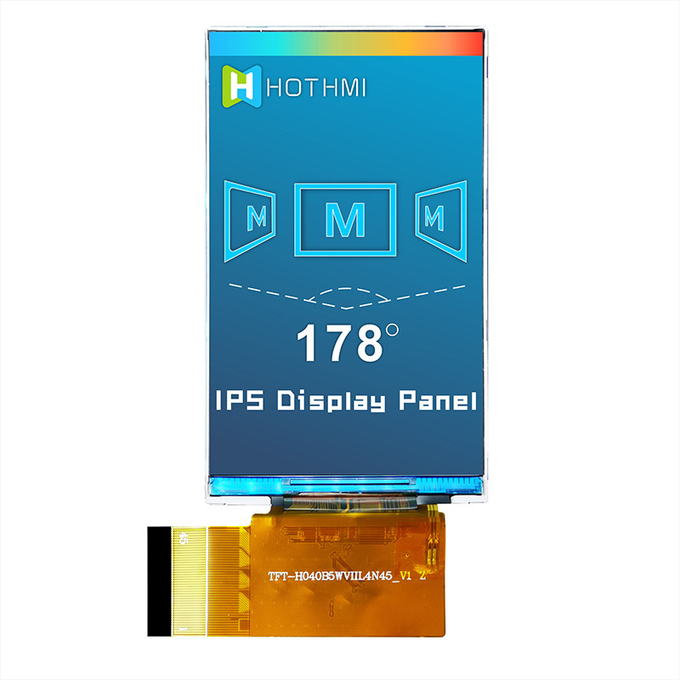

Visual angle：Full view

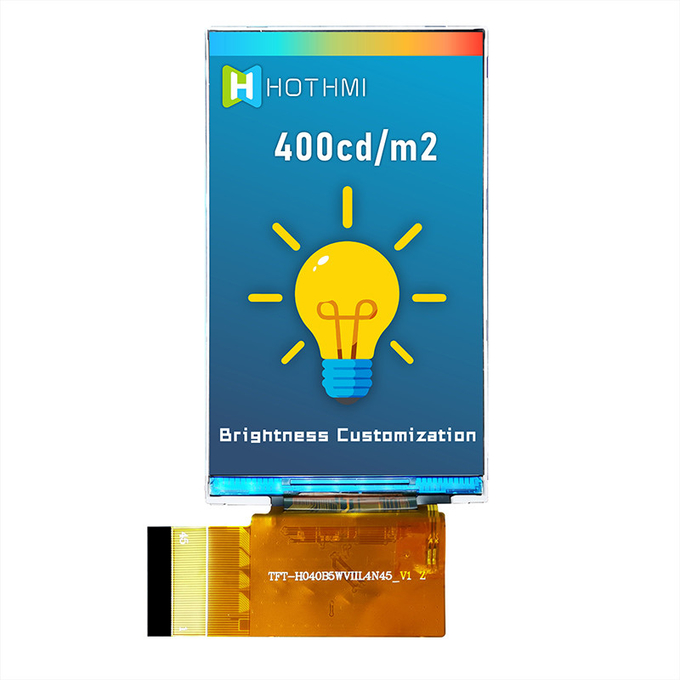

Backlight type or brightness：400cd/m2
Connection PIN Number：45pin
Interface mode：SPI

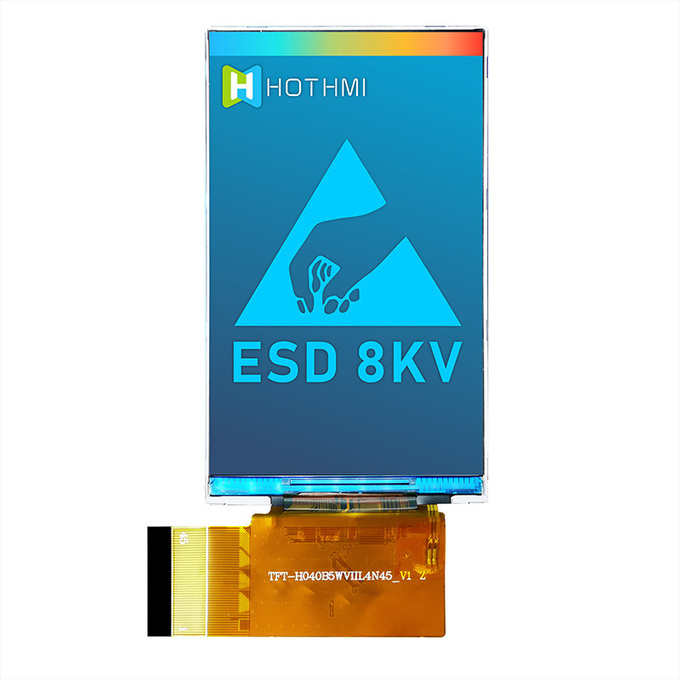

Special instructions：Anti-static ESD 8KV

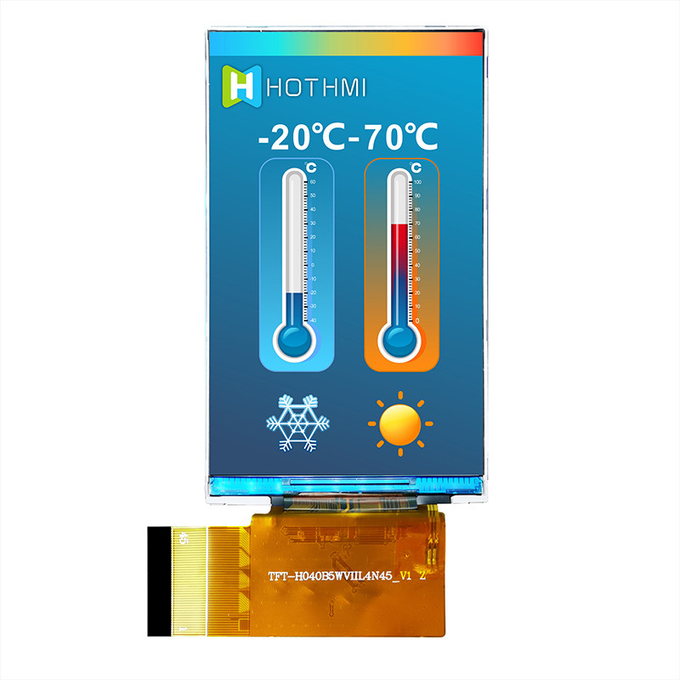

Working temperature：-20~70℃
Power supply voltage：2.8V
Driver chip model：ILI9806E

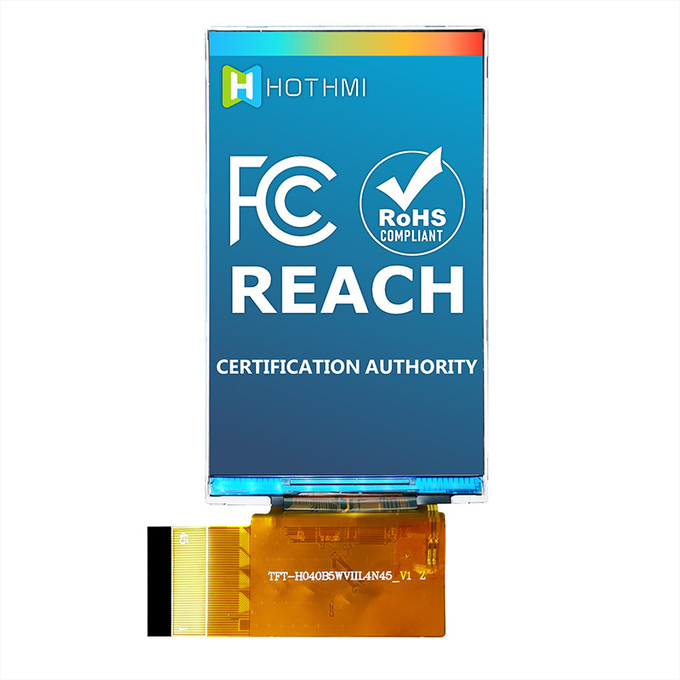

4 Inch TFT LCD Module 480X800 Display TFT LCD Display Manufacturer For Monitors
TFT-H040B5WVIIL4N45 | 4.0" IPS LCD Display | TFT LCD Display Manufacturer | 480x800 resolution | -20℃~70℃ | For Monitors
Are you in search of a high-quality TFT LCD display to enhance your monitor's display? Look no further than the TFT-H040B5WVIIL4N45, a 4.0" IPS LCD display manufactured by a leading TFT LCD display manufacturer.
Featuring a 480x800 resolution, this display provides sharp and clear visuals that will upgrade your viewing experience. Plus, with an operating temperature range of -20℃ to 70℃, the TFT-H040B5WVIIL4N45 is designed to withstand even the most extreme conditions.
Whether you're using your monitor for work or entertainment, the TFT-H040B5WVIIL4N45 will deliver an unparalleled viewing experience. Trust in the quality and reliability of this TFT LCD display and upgrade your monitor today.
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||

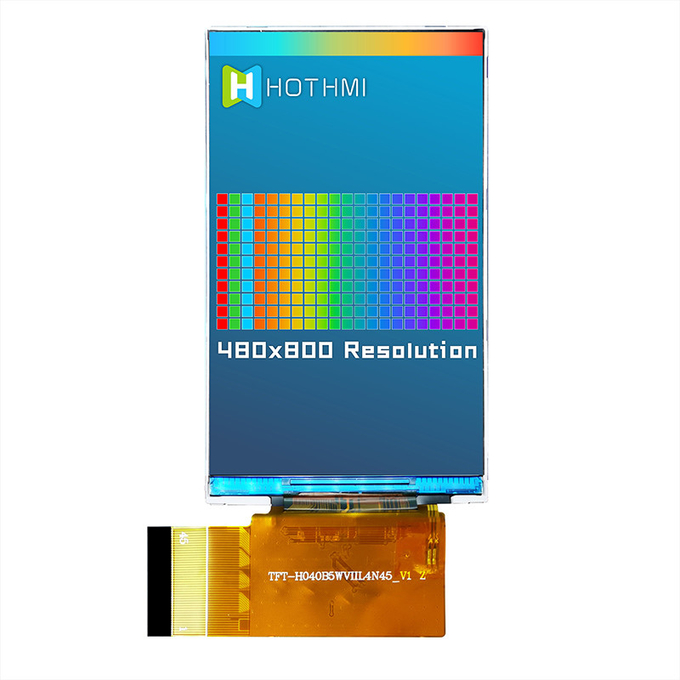

Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 51.84x86.40mm | mm | ||
Outline Dimension | 57.14×96.85×2.10 | mm | ||
Viewing Direction | FULL O'clock | - | ||

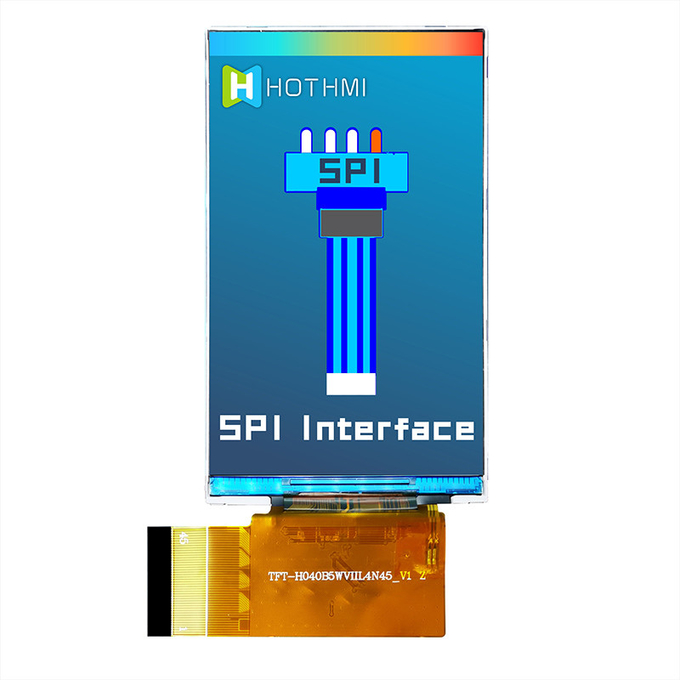

Interface | SPI 3L | - | ||

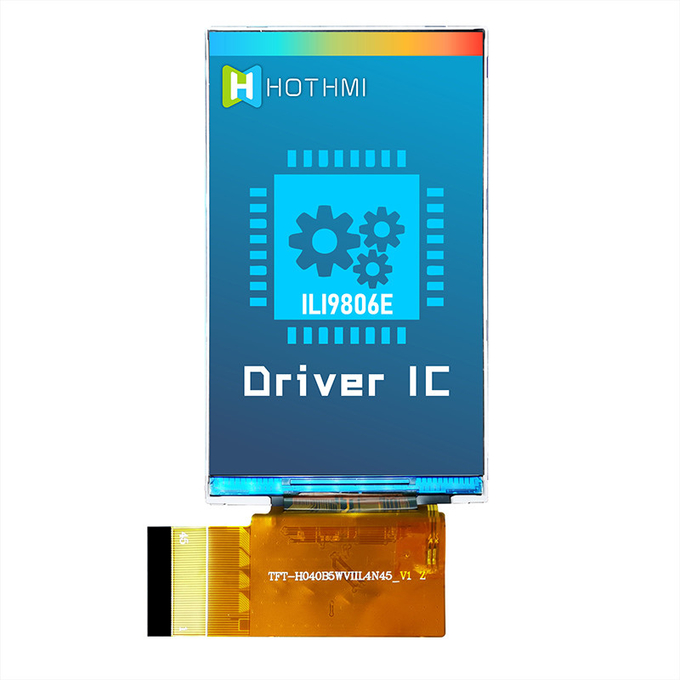

Driver IC | ILI9806E | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
TFT Pin Description
| Pin NO | Symbol | Description |
| 1 | LED K | LED Cathode |
| 2 | LED A | LED Anode |
| 3-6 | NC | No Connector |
| 7,8 | VCI | Analog Power(3.0 ~ 3.6 V) |
| 9 | IOVCC | Analog Power( 1.65 ~ 3.6 V) |
| 10 | RESET | Reset input |
| 11- 18 | DB23-DB16 | Data bus. |
| 19 | GND | Ground |
| 20-27 | DB15-DB8 | Data bus. |
| 28 | GND | Ground |
| 29-36 | DB7-DB0 | Data bus |
| 37 | GND | Ground |
| 38 | SCL | Serial clock input for SPI interface |
| 39 | CS | A chip select signal |
| 40 | SDI | Serial data input |
| 41 | SD0 | Serial data output |
| 42 | VSD | Vertical sync signal |
| 43 | HSD | Horizontal sync signal. |
| 44 | DEN | Data input enable. Display access is enabled when DE is “L”. |
| 45 | PCLK | Pixel clock input pin |
