Product type：SPI-TFT

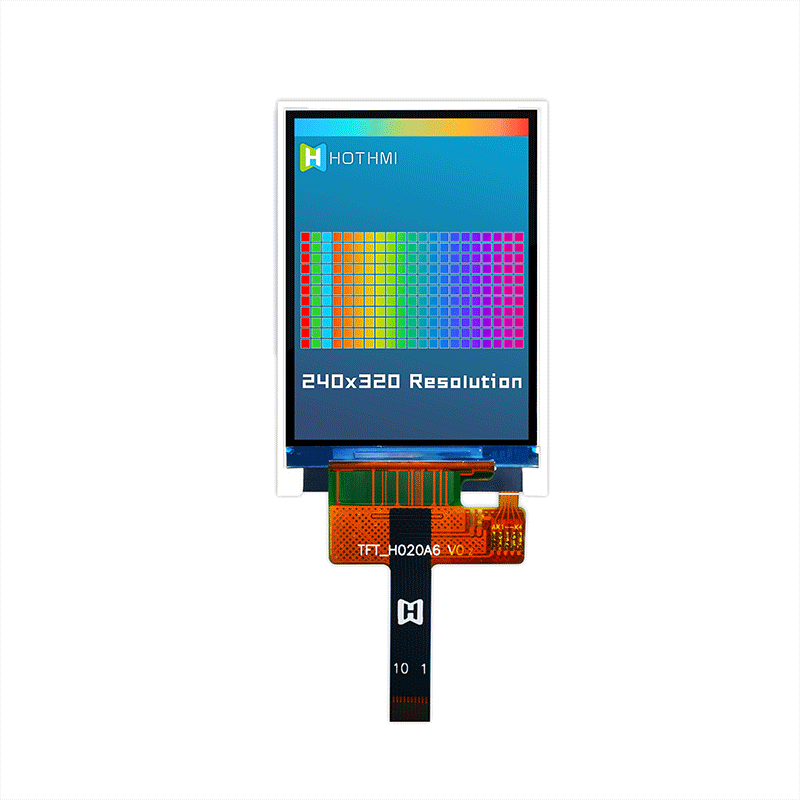

Show contents：240x320
Outline size(mm) ：35.7x51.2x2.3
Size of View Window(mm)：2.0

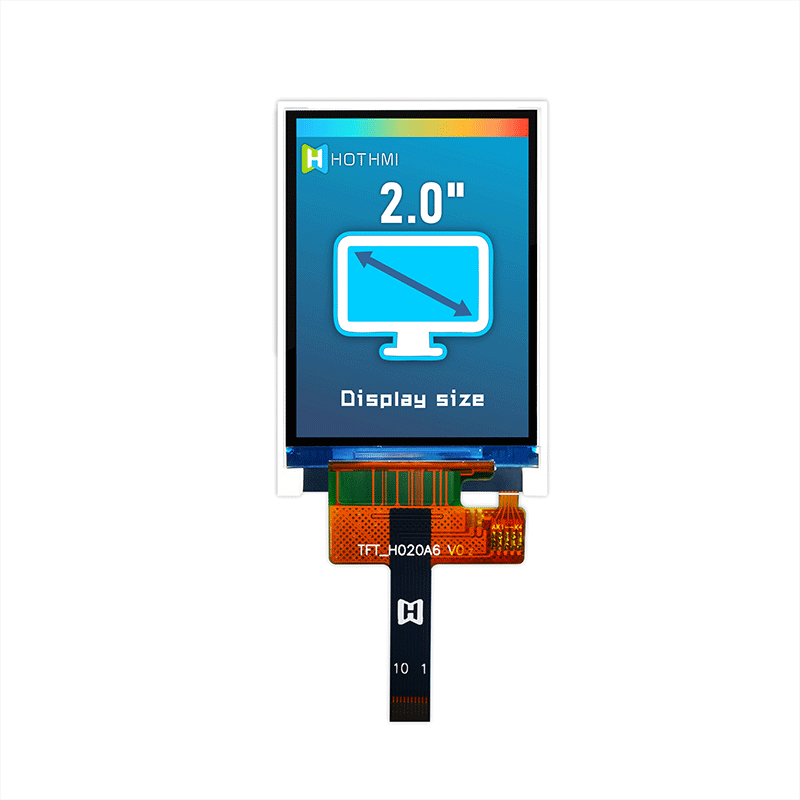

Display size(mm) ：2.0
Effective size(mm)：30.6x40.8
Product application：Outdoor instrumentation, vehicle
Visual angle：Full view
Backlight type or brightness：600cd/m2
Connection PIN Number：10pin

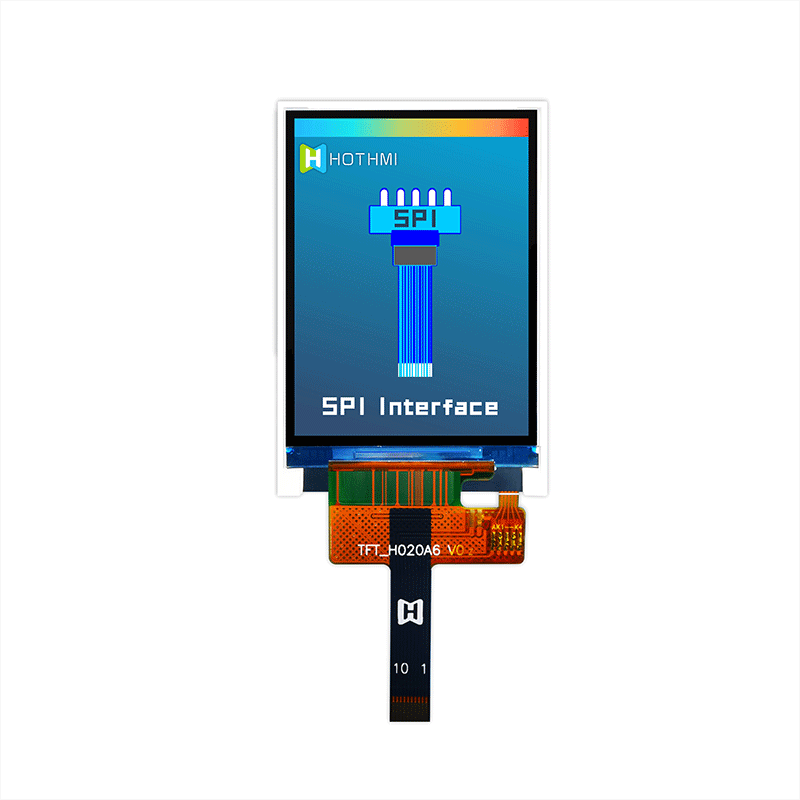

Interface mode：SPI

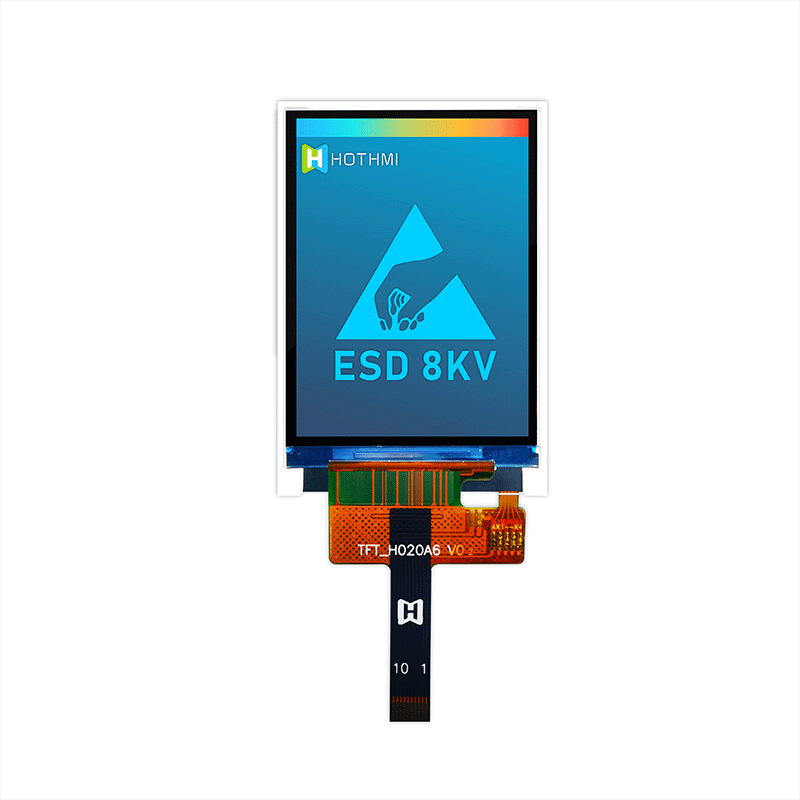

Special instructions：Anti-static ESD 8KV

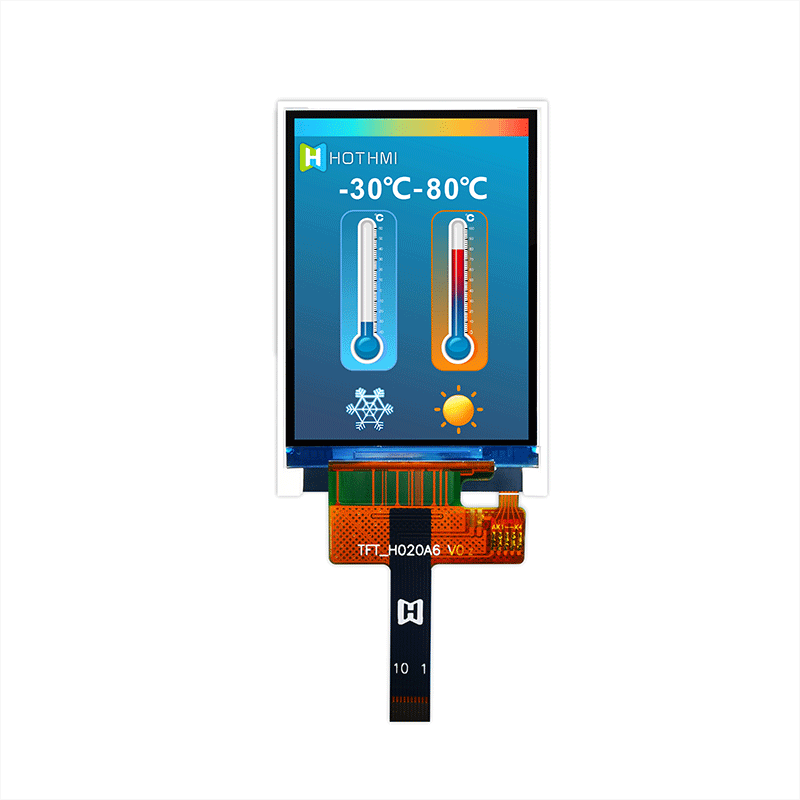

Working temperature：-30~80℃
Power supply voltage：3.3V

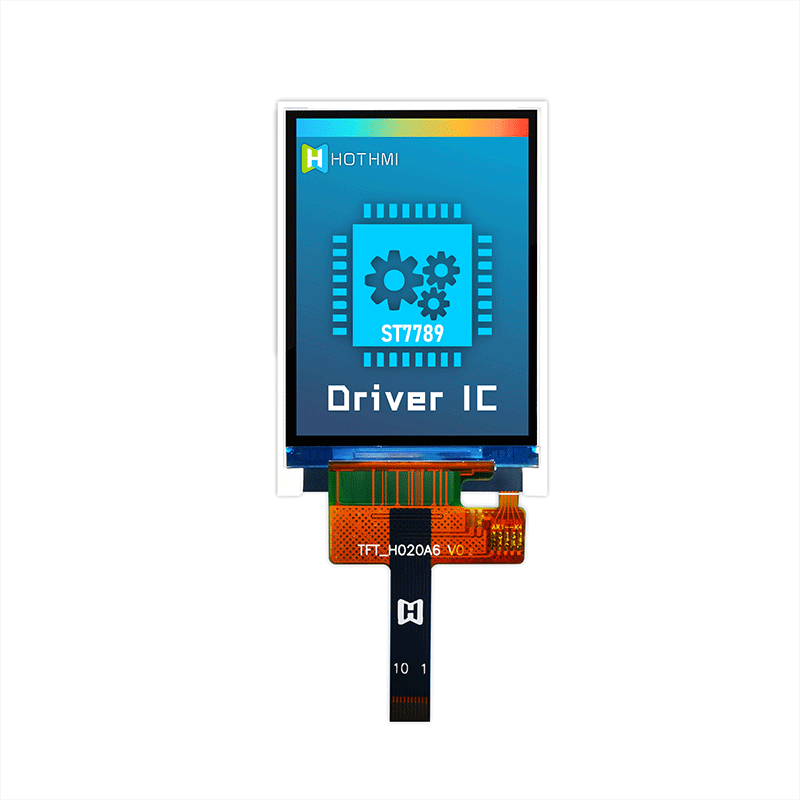

Driver chip model：ST7789

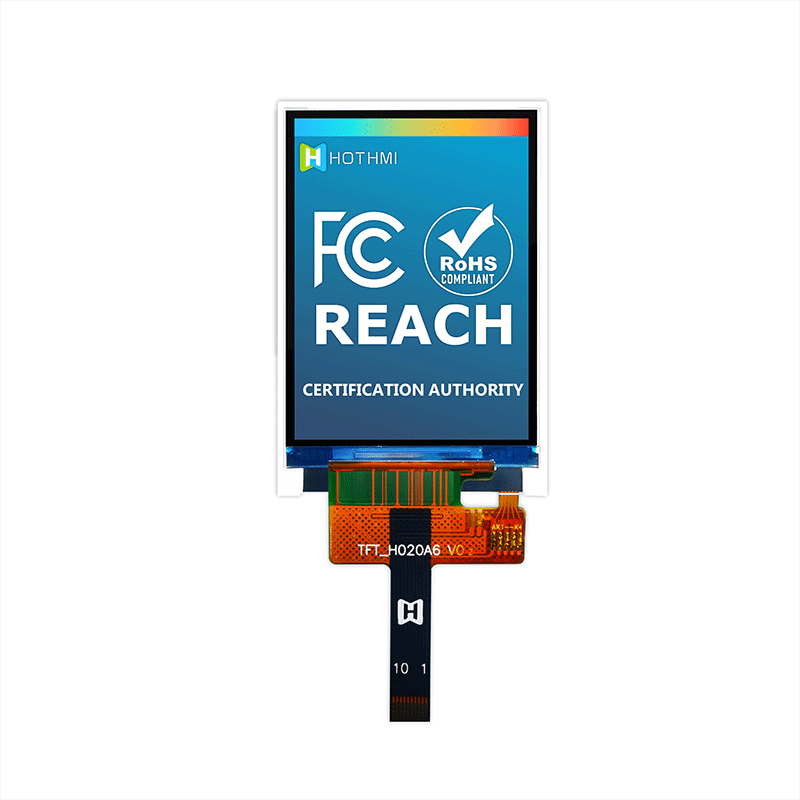

2 Inch 240x320 SPI Micro TFT Display Module ST7789 Sunlight Readable/TFT-H020A6QVIST6N10

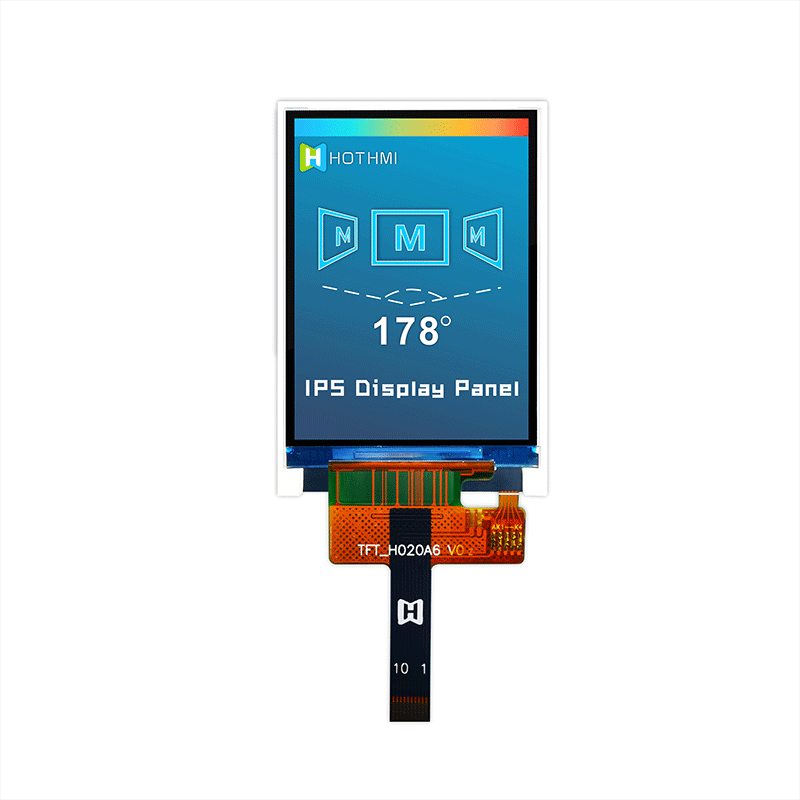

產(chǎn)品描述 TFT-H020A6QVIST6N10是一款2.4英寸全彩TFT液晶顯示模組，分辨率為240x320像素，寬高比為3:4。 TFT模塊采用ST7789V驅(qū)動IC，支持SPI接口。 采用IPS面板的TFT模組具有廣視角優(yōu)勢（左80度/右80度/上80度/下80度），典型對比度為800:1，模組亮度高達600尼特（ 典型值）。 模塊工作溫度范圍-30℃~+80℃，儲存溫度范圍-30℃~+80℃。
General Feature:
| Item | Standard Value | Unit |
| Display Size | 2.0 | Inch |
| Number of Pixels | 240(H)*3(RGB)* 320(V) | dots |
| Active Area | 30.6x40.8 | mm |
| Outline Dimension | 35.7x51.2x2.3 | mm |
| Viewing Direction | Full O'clock | - |
| TFT Interface | SPI | - |
| TFT Driver IC | ST7789 | - |
| TFT Driver Condition | VCI=3.3V(Typ) | V |
| Backlight-1 | White LED/10 PCS/5 LEDs in series, 2 in parallel | - |
| Touch Panel | Without TP | - |
| CTP Driver IC | - | - |
| CTP Driver Condition | - | V |
| Operation Temperature | -30 ～ 80 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
| Backlight brightness | 600 | cd/m2 |
DESCRIPTION
H020A6QVIST6N10 is a 2.0 inch micro TFT display module, made of resolution 240x320 pixels. This micro LCD display module is built in with ST7789 IC; it supports serial 3-line/4-line SPI interface. This model is having module dimension of 35.7 x 51.2 mm and Active area size of 30.6 x 40.8 mm; it's supply voltage range from for analog is 2.5V to 3.7V (typical 3.3V).
H020A6QVIST6N10 is a portrait mode micro TFT display, if you would like to use it as landscape mode, please contact with us for more technical support. This 240x320 TFT LCD is featured with brightness 600 cd/m2(typical value), it can be operating at temperatures from -30℃ to 80℃; its storage temperatures range from -30℃ to 80℃.
