Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules |MCU8/16|SPI 3/4L|WIth Board  >  2.4寸TFT模塊|240X320分辨率|MCU SPI-4L接口|內置ST7789V IC|HTM-TFT024A16-SPI
  • Model : 2.4 inch TFT display module | 240X320 resolution | MCU SPI-4L interface | anti-static ESD 8KV | HTM-TFT024A16-SPI

    Product type:SPI-TFT

    Show contents:240x320

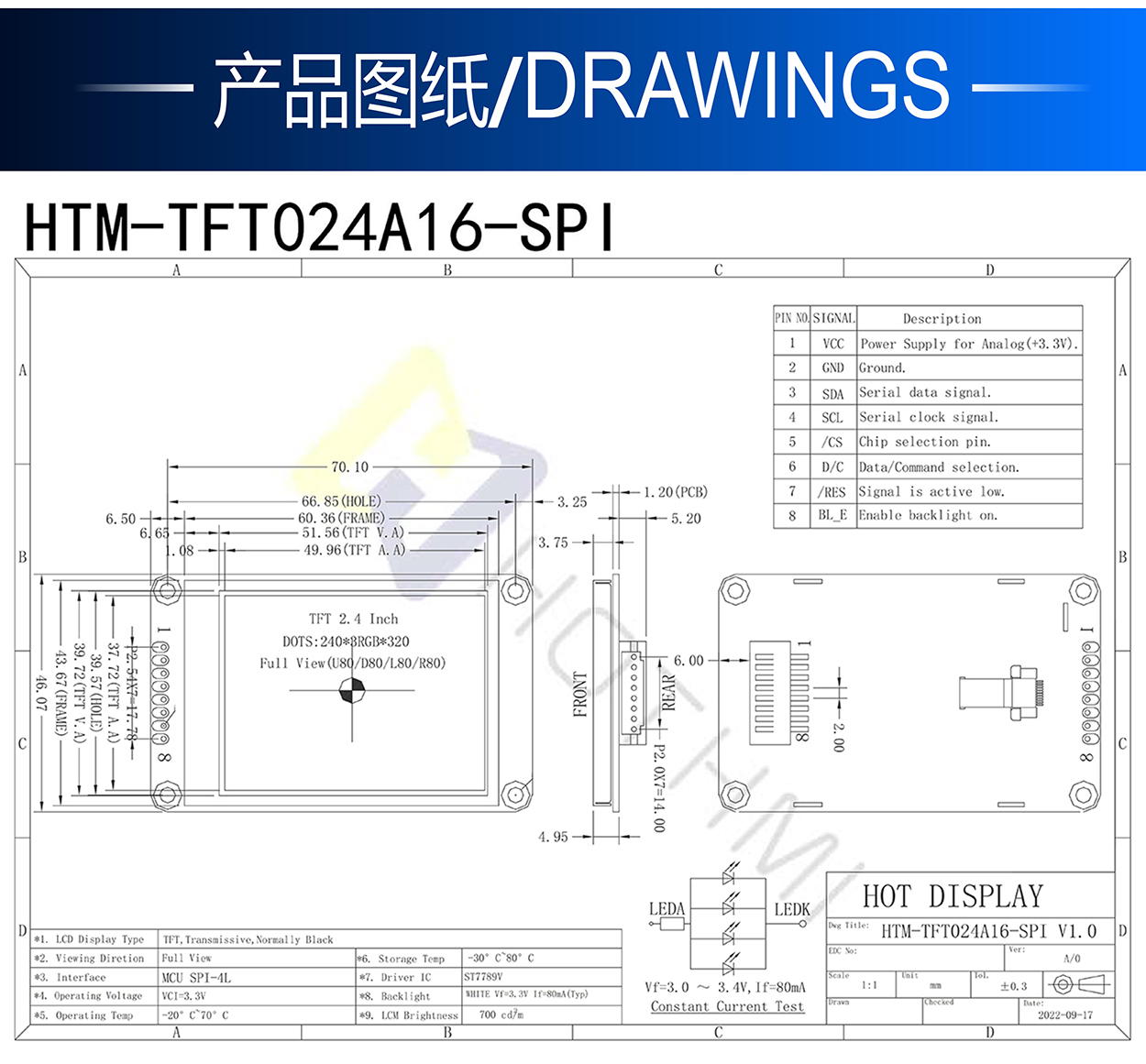

    Outline size(mm) :73.35x46.07x4.95

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):49.96x37.72

    Product application:Outdoor instrumentation, vehicle, industrial control

    Visual angle:Full view

    Backlight type or brightness:700cd/m2

    Connection PIN Number:8PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7789V

Product description

HTM-TFT024A16-SPI is a 2.4-inch TFT color LCD panel display screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU SPI-4L interface , 8PIN plug-in FPC can be connected to the motherboard (optional connector), single power supply DC 3.3V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
