Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  5寸超高亮TFT彩色液晶屏/800*480分辨率/陽光下可視/RGB接口/TFT-H050B10SVISTKN50/FPC-H050B10-V0

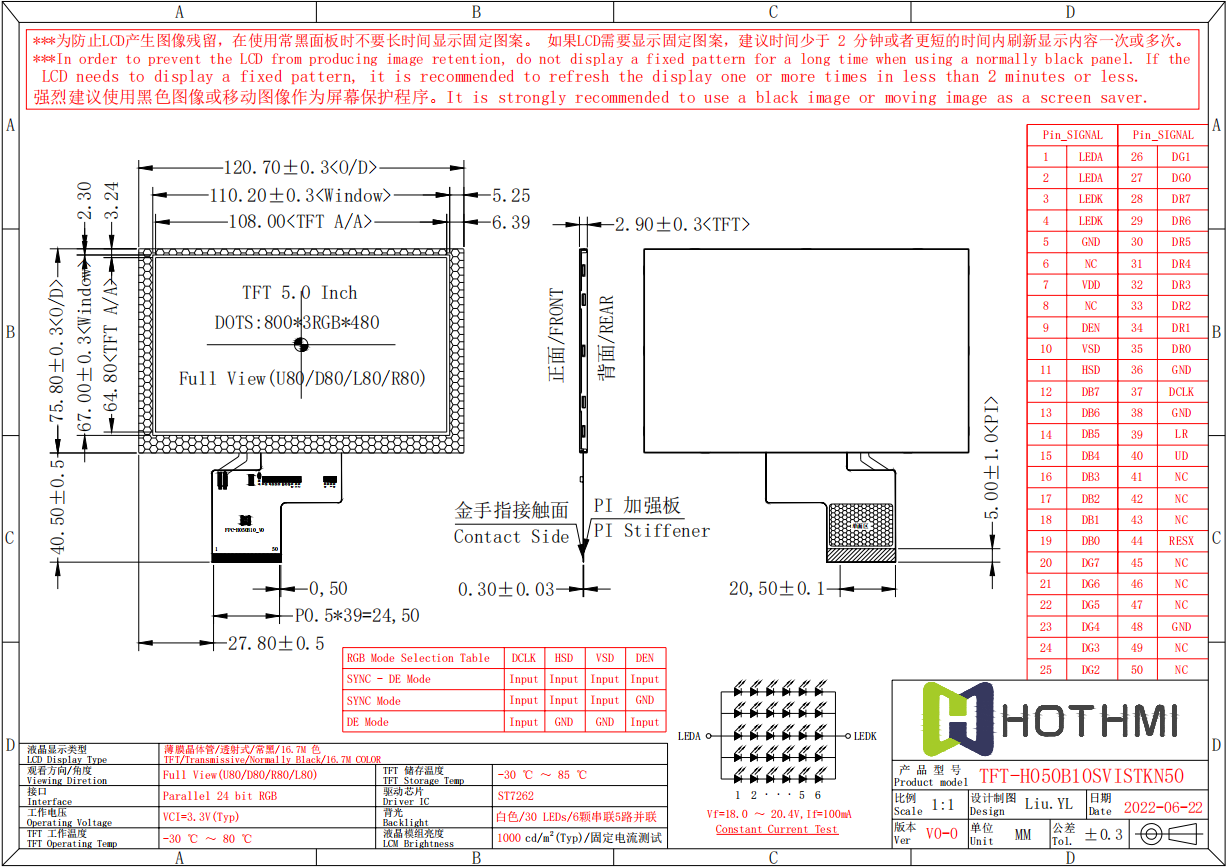

  • Model : 5 inch high-brightness TFT color LCD screen/800*480 resolution/visible in sunlight/RGB interface/TFT-H050B10SVISTKN50/FPC-H050B10-V0

    Product type:TFT LCD

    Show contents:800x480

    Outline size(mm) :120.70x75.80x2.90

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):108.0x64.80

    Product application:Industrial control equipment, vehicle instrumentation, ultra-wide temperature display

    Visual angle:Full View

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:FPC-50PIN

    Interface mode:RGB

    Special instructions:Super bright, wide temperature

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7262
