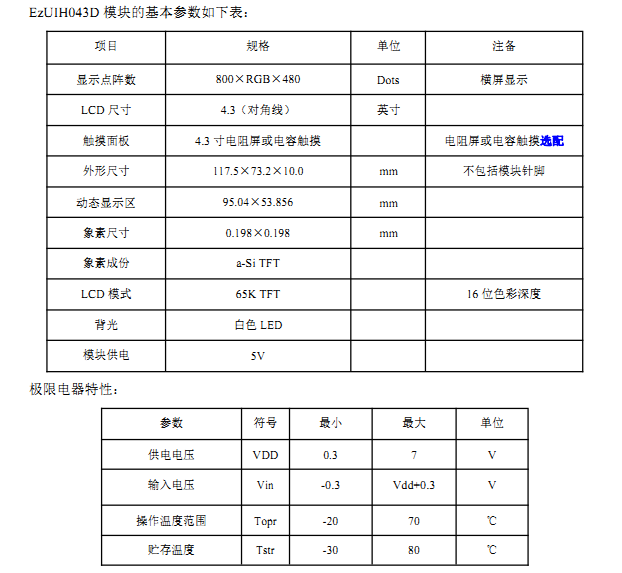

Product type：TFT Module
Show contents：800x480
Outline size(mm) ：117.5×73.2×10.0
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：95.04×53.856
Product application：Vehicle, medical, industrial control
Visual angle：Full View
Backlight type or brightness：500cd/m2
Connection PIN Number：USB+RS232
Interface mode：UART/RS232
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
The latest EzUI series intelligent LCD display module launched by HOTHMI has the following characteristics:
E (easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop a full-color graphical touch screen human-machine interface, allowing users to easily design and develop color LCD modules.
The biggest feature of the EzUI series intelligent LCD module is its easy-to-use and rich-featured features. Users can choose simple or complex usage methods to achieve the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, control configuration and response settings of the man-machine interface, and then copy the resource files generated by the tool software to the EzUIH series modules to complete the required man-machine interface. The interactive interface is designed and produced without programming and controlling the microcontroller or other controllers. In order to meet users with special requirements, EzUIH series modules still retain most of the display control commands, enabling users to control the module display more freely. EzUIH is a function and performance enhanced version of EzUI series. Although the hardware platform is different, it is fully compatible with the functions of EzUI series.
Currently, the EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches, and 10.1 inches. These modules are commonly used in industrial control equipment and medical equipment.
The characteristics and application scope of EzUI series intelligent LCD module are as follows:
Ease of use: EzUI series modules adopt a simple and easy-to-use design concept, enabling users to get started easily and quickly carry out interface design and development. Through the interface development tool software (EzUITool), users can perform operations such as the design, editing, control configuration, and response setting of the human-machine interface.
Zero code: EzUI series modules realize the goal of code-free user interface design. The user does not need to program and control the microcontroller or other controllers, but only needs to copy the resource files generated by the tool software to the corresponding EzUIH series modules to complete the design and production of the human-computer interaction interface.
Rich functions: EzUI series modules provide rich functions and performance. Users can choose simple or complex usage methods according to their needs, and freely control the display function of the module. EzUIH series modules also retain most of the display control instructions to meet users with special requirements.
Multiple size options: EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches and 10.1 inches. These modules of different sizes are suitable for different application scenarios, such as industrial control equipment and medical equipment.
In a word, Xinhongtai HOTHMI's EzUI series intelligent LCD module has the characteristics of easy to use, zero code, and rich functions, which can help users quickly develop full-color graphic touch screen human-machine interface, and is widely used in industrial control equipment and medical equipment and other fields .
