Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  2.1寸圓形TFT LCD顯示屏 480×480像素 IPS ST7701S/TFT-H021A1HQIST5N40
  • Model : 2.1inch TFT LCD Display Round , 480×480 Px, IPS,ST7701S/TFT-H021A2HQIST3C40

    Product type:TFT Round

    Show contents:480x480

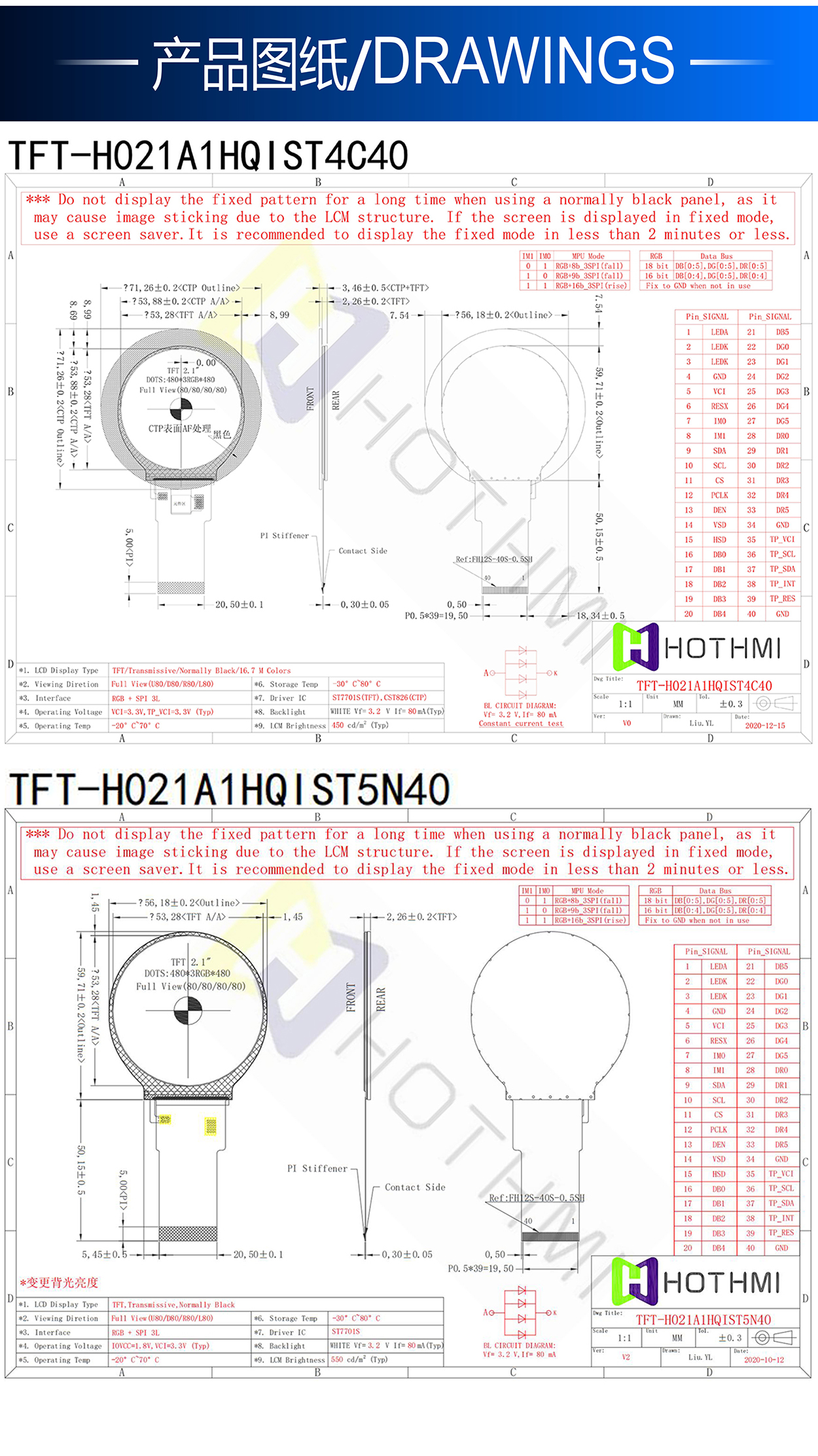

    Outline size(mm) :56.18x59.71x2.26

    Size of View Window(mm):2.1

    Display size(mm) :2.1

    Effective size(mm):53.28x53.28

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:550cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3v

    Driver chip model:ST7701S+CTP/FT3267

Product description

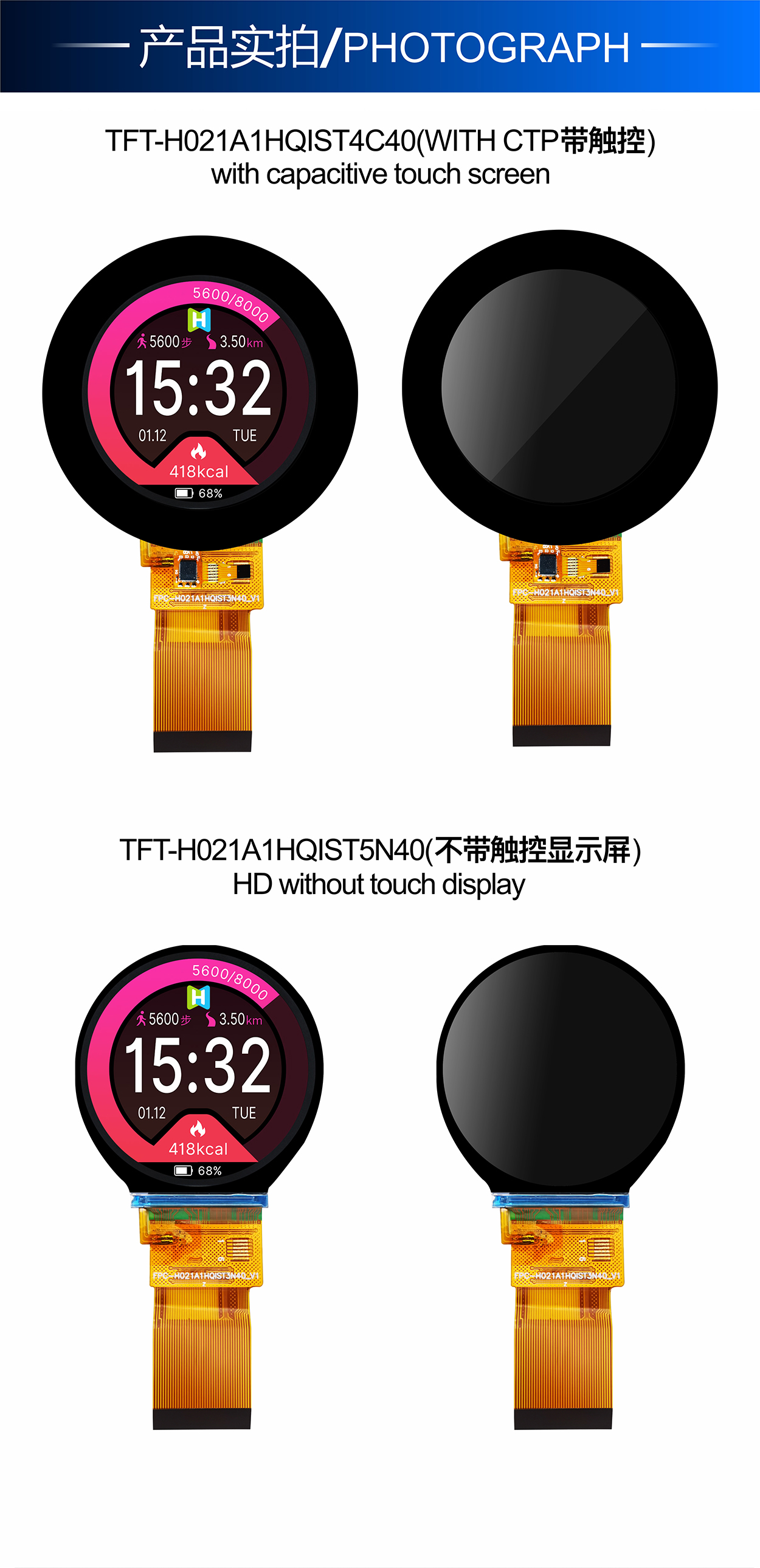

TFT-H021A1HQIST5N40 | 2.1inch TFT LCD Display | 480x480 Pixels | RGB Interface | 40-Pin FFC ZIF Connection | Sunlight Readable | Optional Capacitive/Resistive Touch Screen

TFT-H021A1HQIST5N40 Is A 2.1inch TFT LCD Display With A Display Diameter Of 2.1 Inches And A Resolution Of 480x480 Pixels. This Circular TFT Display Consists Of An IPS TFT-LCD Panel With A Built-In ST7701S Driver IC That Communicates Through An RGB Interface.

TFT-H021A1HQIST5N40 Adopts IPS Panel With Higher Contrast, Pure Black Background When Display Or Pixel Is Off, Left: 80 / Right: 80 / Top: 80 / Bottom: 80 Degrees (Typical) Wider Viewing Angle, Contrast Ratio 1,000 :1 (Typ.), Brightness 550cd/M2 (Typ.), Anti-Glare Surface Panel. If Customers Need Capacitive Touch Screen, Please Choose Model TFT-H021A1HQIST4C40.

LCM's Supply Voltage Ranges From 1.8V To 3.3V, With A Typical Value Of 3.3V. The Operating Temperature Is -20℃ To +70℃, And The Storage Temperature Is -30℃ To +80℃. The Display Module Is Suitable For Sweeping Robots, STM32/RK Series/C8051/Arduino/STM32, And Other Equipment. They Are Also Ideal For Home Automation Products, White Goods And Video Systems.
