Location:Home  >  Product center  >  TFT display screen  >  An on-board & Special TFT Module  >  4寸86盒子專用TFT顯示屏/方屏480*480分辨率/全視角4.0寸TFT-H040A1PVIST3N40
  • Model : 4.0 inch 86 special TFT screen box/480 * 480 resolution/whole perspective TFT - H040A1PVIST3N40

    Product type:TFT strip

    Show contents:480x480

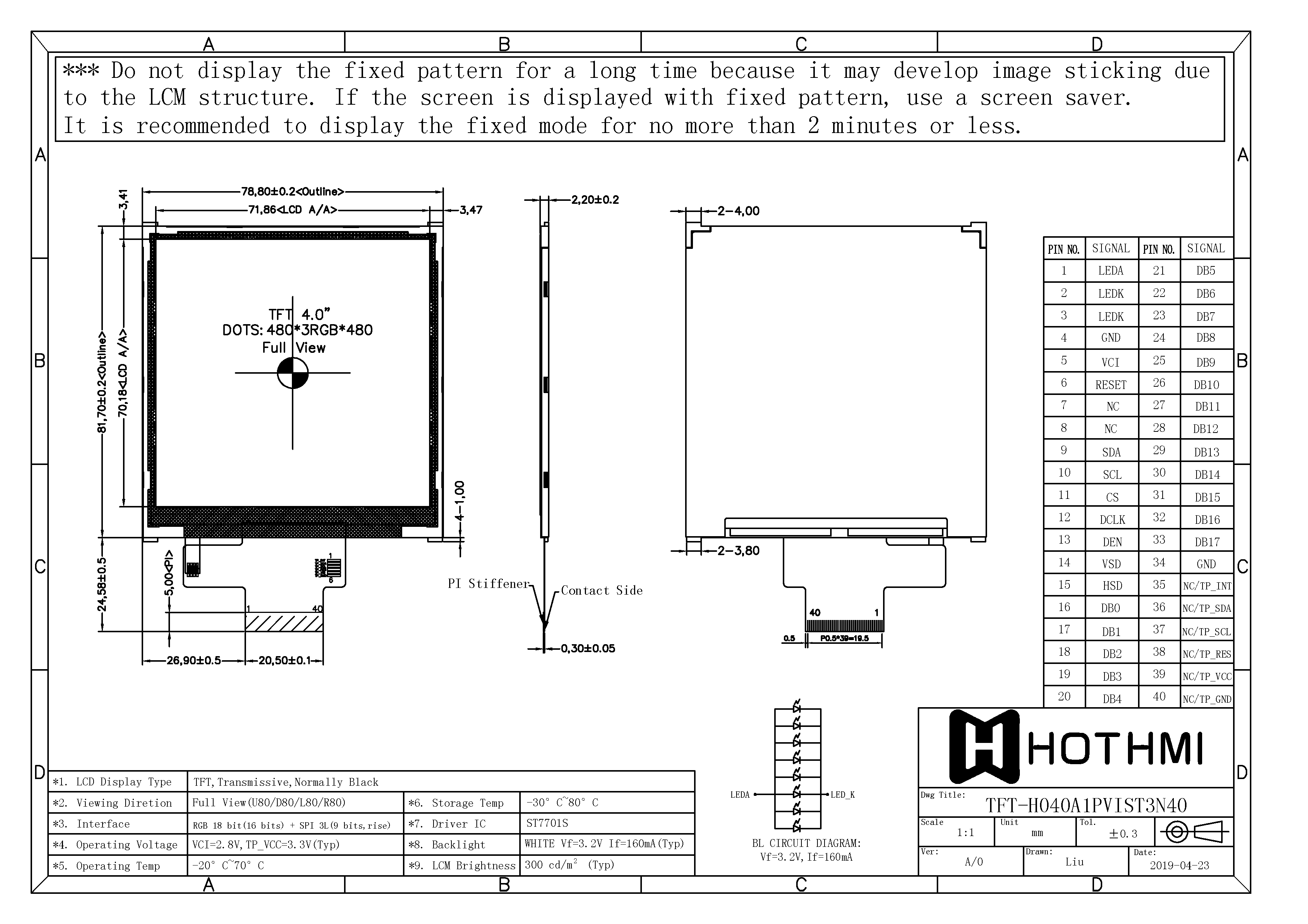

    Outline size(mm) :78.8x81.7x2.2

    Size of View Window(mm):4.0

    Display size(mm) :4.0

    Effective size(mm):71.86x70.18

    Product application:86 box, smart panel

    Visual angle:Full View

    Backlight type or brightness:300cd/m2

    Connection PIN Number:40pin

    Interface mode:RGB

    Special instructions:RGB16/18bit +SPI

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7701S
