Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：93.0x70.0x14.0
Size of View Window(mm)：72.0x39.0
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108

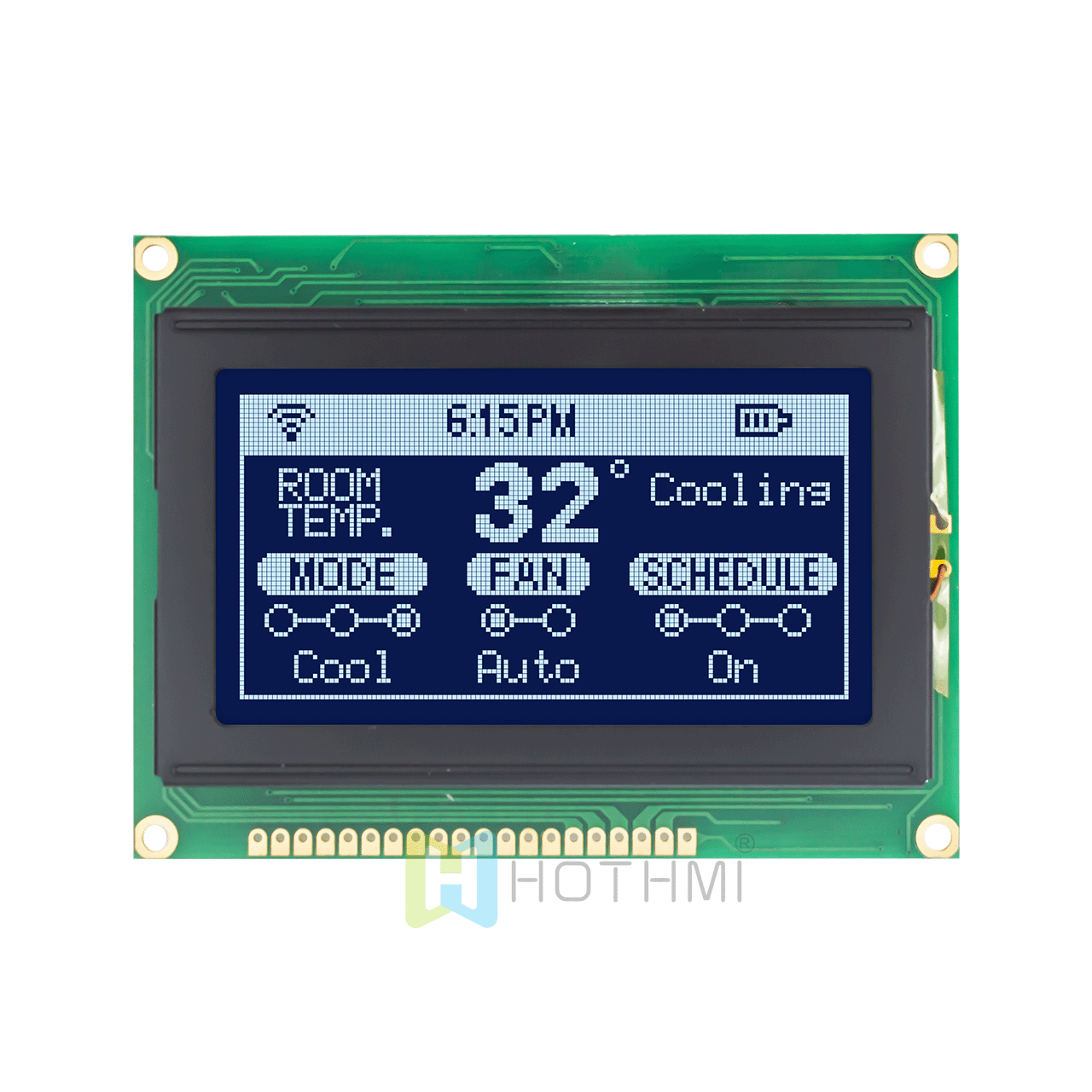

The Hot Display LCD display graphics module displays dark blue pixels on a gray background. This transmissive LCD monitor is designed to provide ideal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, LCDs have a powerful embedded backlight that provides high contrast and displays light graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.
This LCD graphics module is fully compatible with Arduino and can be perfectly connected with other electronic systems to achieve a variety of applications. The HTM12864B-41W-A5P model is designed to withstand harsh operating conditions and will exhibit abnormal performance when used in temperatures ranging from -20 to 70 degrees Celsius.
